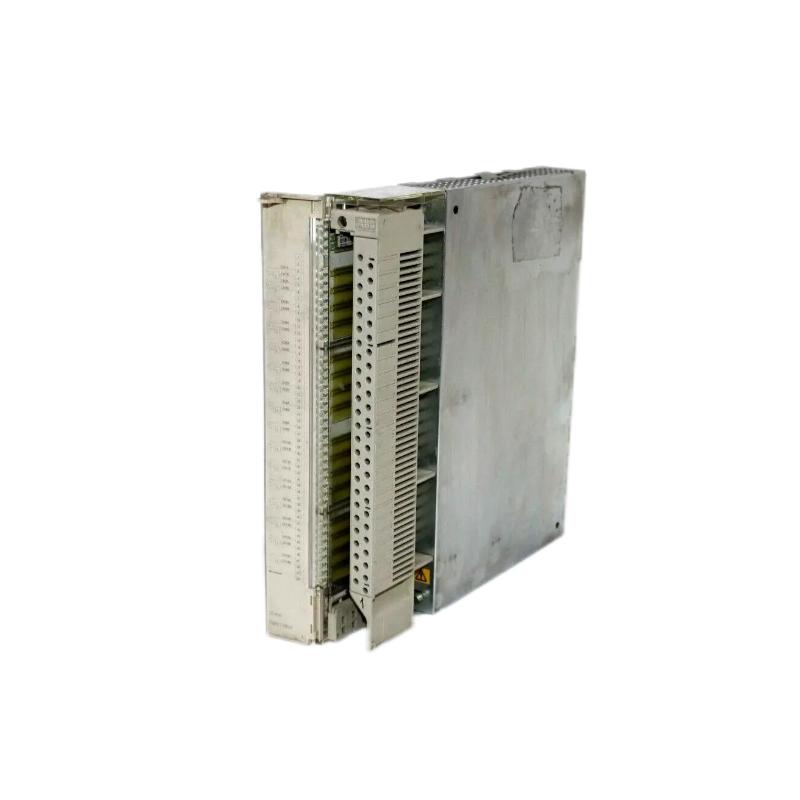

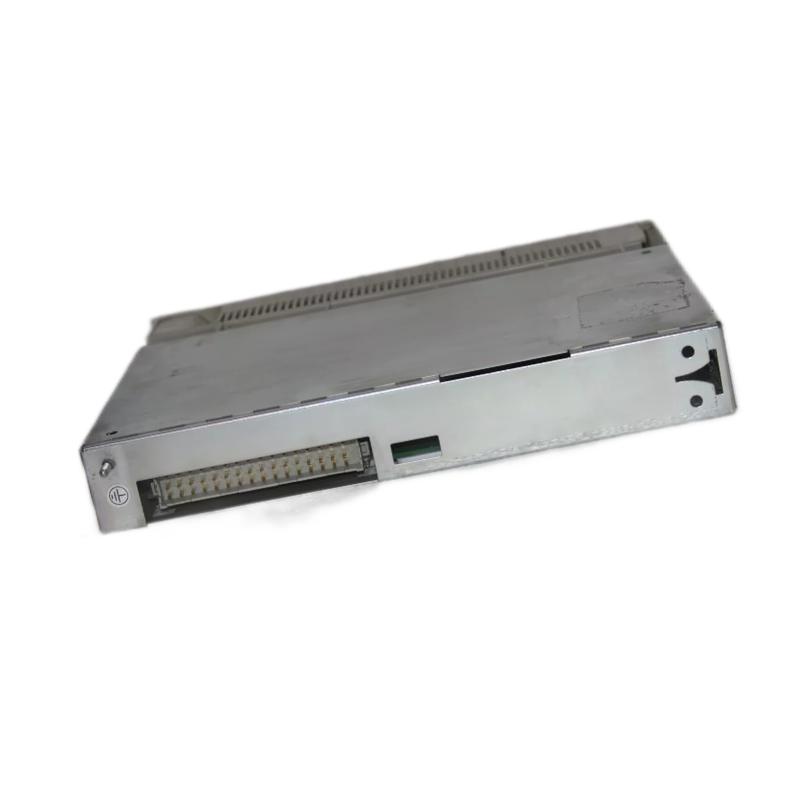

The ABB DO630 is a high‑capacity digital output module engineered for demanding industrial automation environments. Designed to deliver clean, dependable switching signals, this module allows control systems to drive an array of field devices — from solenoids and relays to indicator lamps and industrial actuators — with confidence. The DO630 combines rugged industrial design with fast, noise‑resilient outputs and intuitive status feedback, making it an excellent choice for large manufacturing facilities, process plants, and complex machine automation projects. Its optimized architecture ensures that discrete control actions occur exactly when and how they should, improving uptime and simplifying system diagnostics.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ABB DO630 |
| Module Type | Digital Output Module |
| Number of Outputs | 32 Discrete Outputs |
| Output Voltage | 24 V DC |
| Output Type | Transistor / Sourcing |
| Maximum Output Current | 0.5 A per channel |
| Isolation | Galvanic isolation between output groups |
| Protection | Short‑circuit and overload protection |
| Status Indicators | LED per output channel |
| Mounting Type | DIN Rail / System Carrier |
| Operating Temperature Range | −20 °C to +60 °C |
| Dimensions (W×H×D) | 45 mm × 135 mm × 75 mm |
| Weight | 0.26 kg |
Recommended Related Models
-
ABB DO620 – 16‑output module for midsized discrete control applications.
-
ABB DO610 – 8‑output module ideal for smaller systems or auxiliary tasks.
-
ABB DI630 – Matching 32‑input module to pair with DO630 for full discrete I/O integration.
