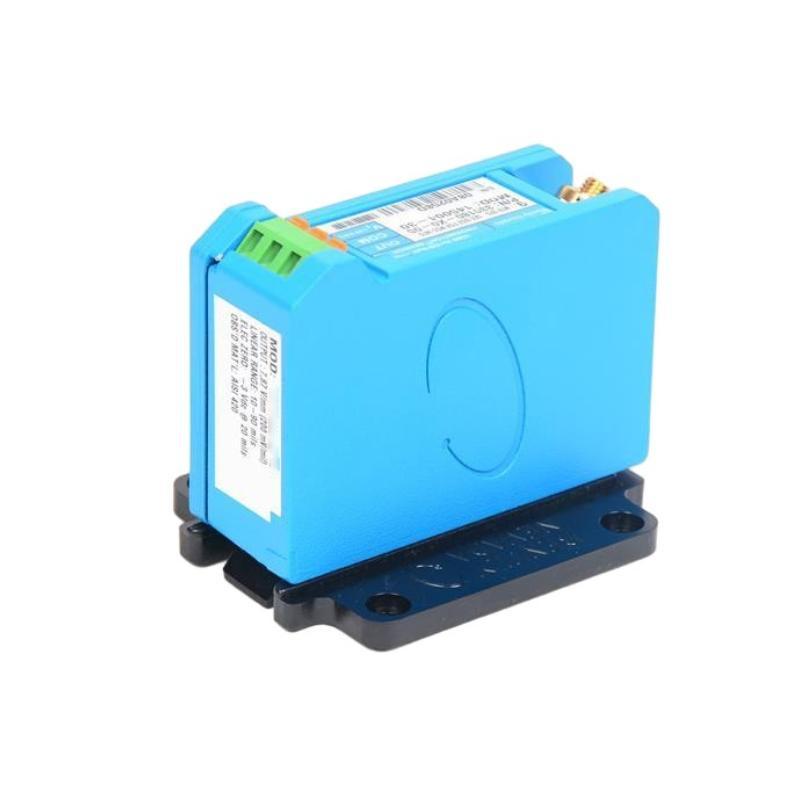

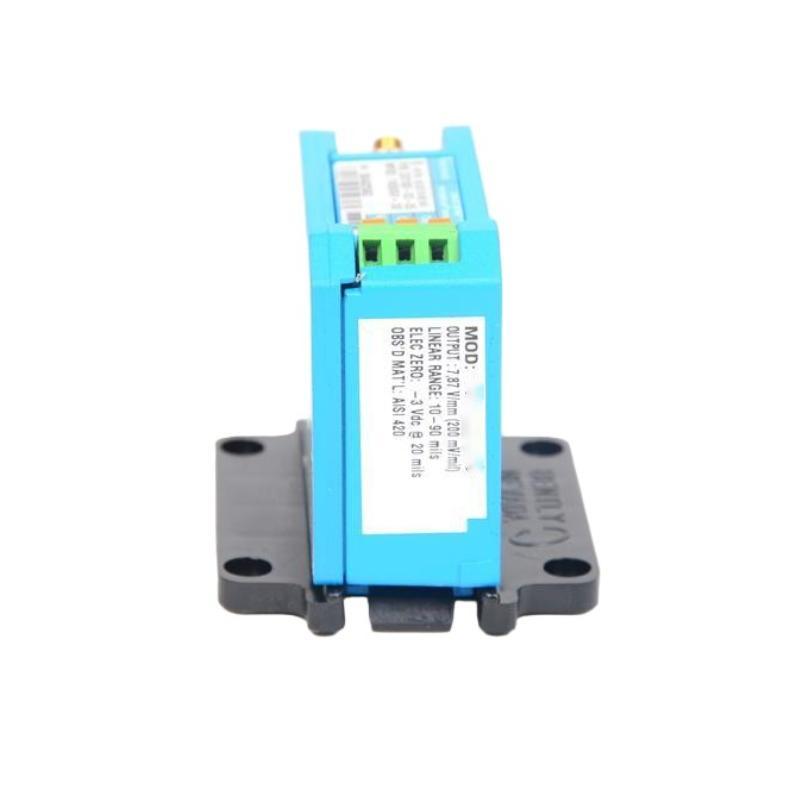

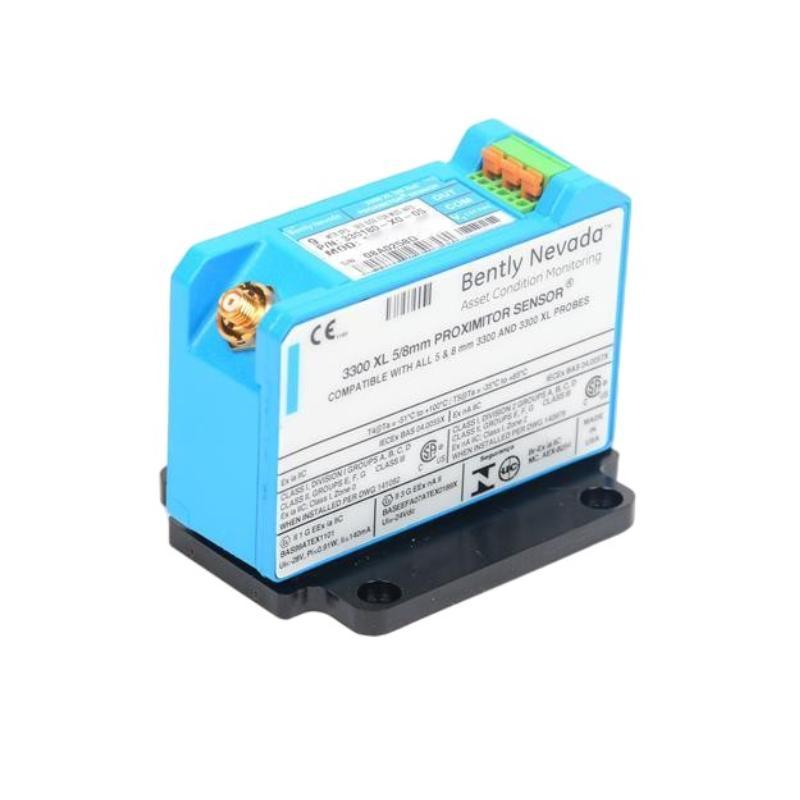

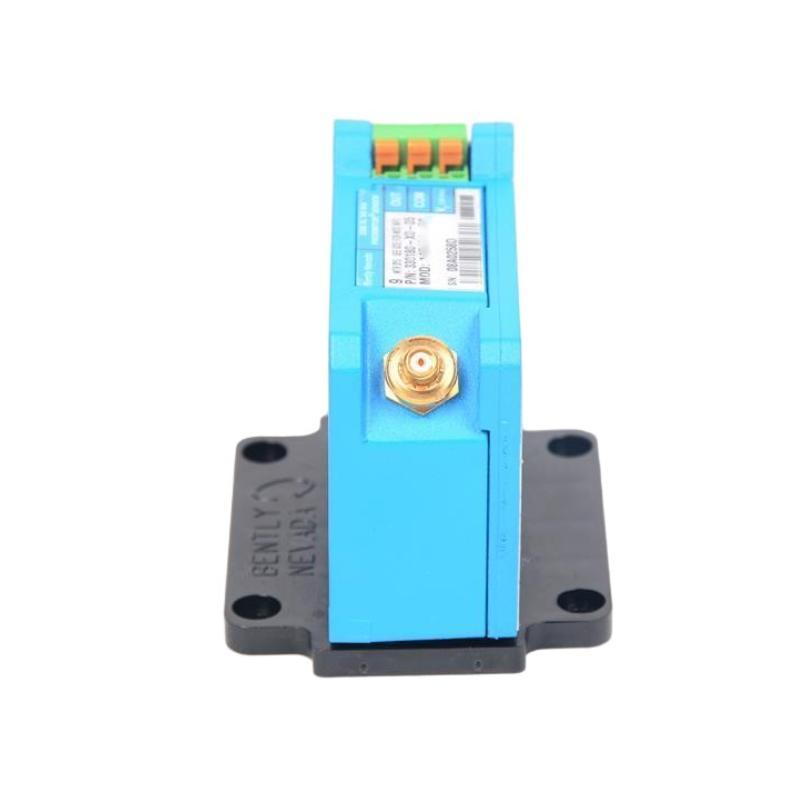

The Bently Nevada 330180-X1-05 / 143945-04 Proximitor Sensor Module is a variant within the 3300 XL proximity measurement system used for industrial machinery condition monitoring. It is designed to interface with eddy current proximity probes and provide stable signal conditioning for vibration and shaft displacement measurement in rotating equipment systems.
This module is typically installed in control cabinets or rack-mounted monitoring systems and is widely applied in industries such as power generation, oil & gas, petrochemical, and heavy manufacturing. It is used as part of a complete proximity transducer chain for continuous machinery protection and monitoring.
According to available industrial listings, the 143945-04 configuration is associated with CSA/ATEX/IECEx approval options and standardized installation configurations within the 3300 XL platform.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-X1-05 / 143945-04 |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe and extension cable system |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / rack installation |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -40°C to +85°C (typical industrial range) |
| Power Supply | System-dependent DC supply |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 81 mm × 50 mm × 64 mm |
| Weight | Approx. 0.22 – 0.25 kg |
The compact structure supports high-density cabinet installation while maintaining stable electrical performance and standardized wiring layout.
