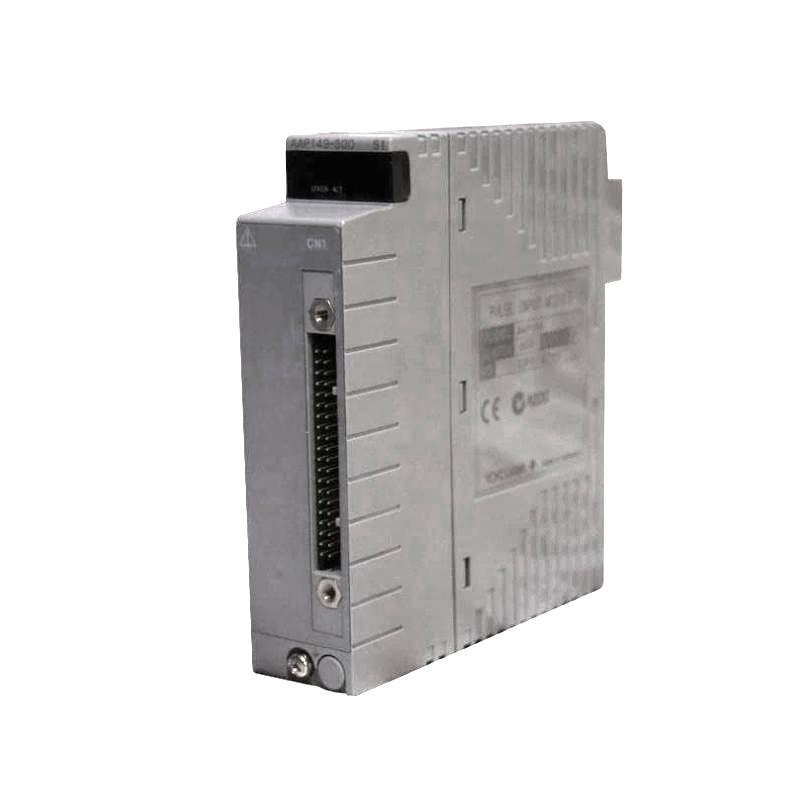

Yokogawa AAP149‑S00 Analog Input/Output Module durable

Applications

• Process Automation – Captures and controls analog signals in continuous processes such as chemical, petrochemical, and food processing.

• Manufacturing Systems – Drives precision machinery control with accurate feedback and command signals.

• Energy & Utilities – Interfaces with meters, regulators, and actuators for stable energy distribution and monitoring.

• Environmental Control – Manages HVAC systems, emissions monitoring, and water treatment with high‑resolution signal handling.

Advantages

• Balanced Analog I/O – Combines both inputs and outputs in a single module, simplifying rack requirements and reducing wiring complexity.

• High Precision – 16‑bit resolution and ±0.1% accuracy ensure reliable data for control loops and analytics.

• Responsive Dynamics – Fast input sampling and output response deliver near‑real‑time system behavior.

• Robust Isolation – Galvanic isolation preserves signal integrity in electrically noisy industrial environments.

• Wide Operating Range – Designed to maintain performance from −20 °C to +60 °C, suitable for diverse installation conditions.

• Modular and Space‑Efficient – Compact design saves panel space and supports scalable architecture expansion.

Technical FAQs

1. What is the channel configuration of the AAP149‑S00?
   It features 6 analog inputs and 6 analog outputs.

2. What signal types does this module support?
   Both voltage and current signals are supported for inputs and outputs.

3. What are the input and output ranges?
   Inputs: –10 V to +10 V (voltage), 4–20 mA (current); Outputs: 0–10 V (voltage), 4–20 mA (current).

4. What is the resolution of the AAP149‑S00?
   The module provides 16‑bit resolution for precise analog handling.

5. How fast does the module sample inputs?
   Inputs are sampled at a rate of 1000 Hz.

6. What is the output response time?
   Outputs respond within approximately 2 ms per channel.

7. Does the module provide isolation between channels?
   Yes, galvanic isolation is provided to enhance noise immunity and protect signal quality.

8. What is the operating temperature range?
   The module operates reliably from −20 °C to +60 °C.

9. What are the physical dimensions of the module?
   It measures approximately 60 mm × 125 mm × 150 mm.

10. Where is the AAP149‑S00 typically used?
    It is commonly used in process control, industrial automation, energy systems, and environmental monitoring applications.
