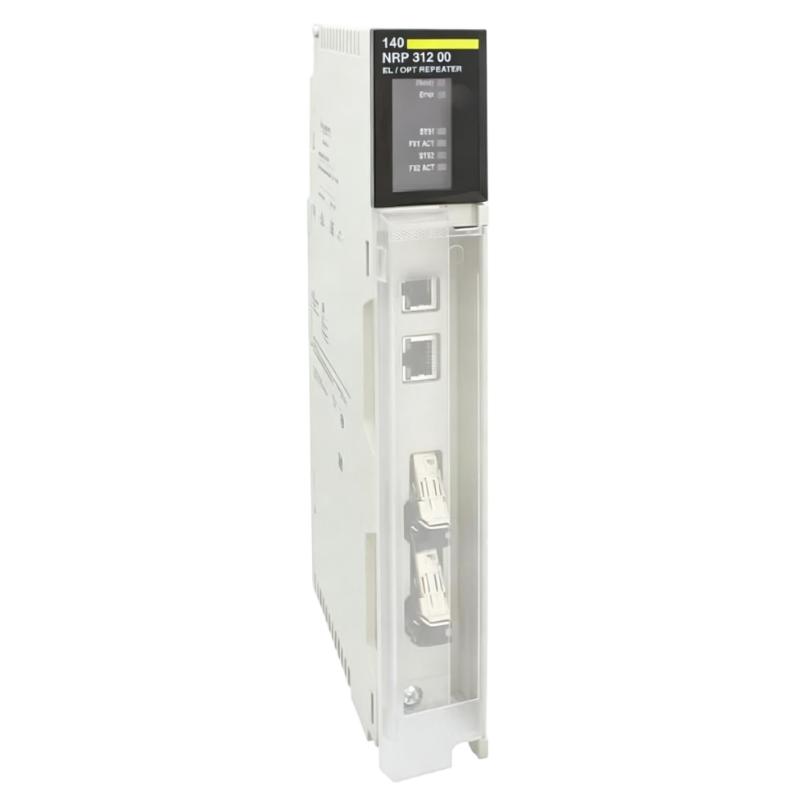

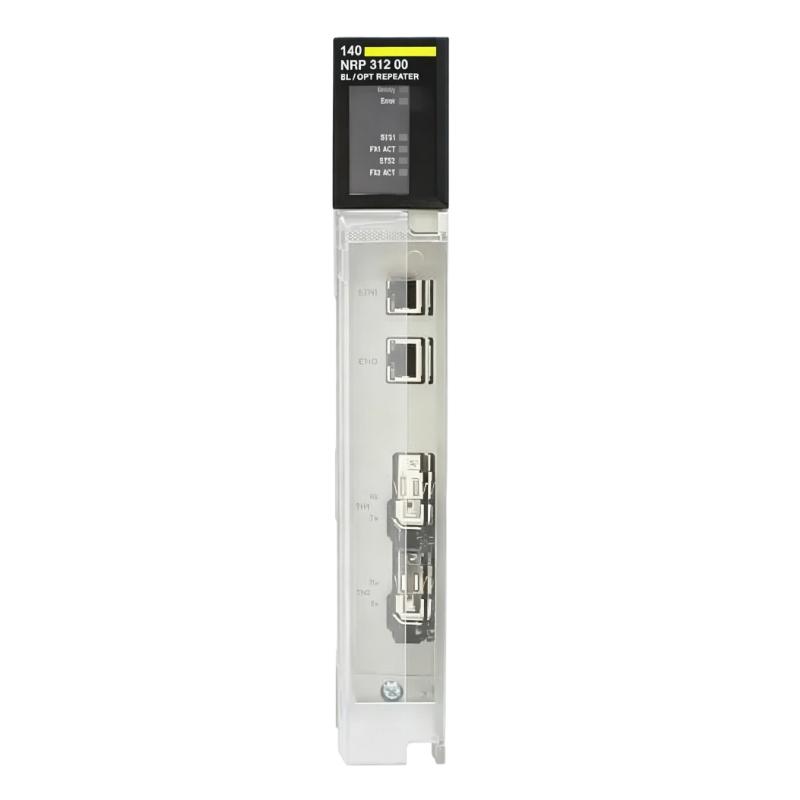

Schneider 140NRP31200 Fiber Optic Converter

Applications

• Connects Ethernet networks to multimode fiber optic infrastructure in industrial automation systems.

• Extends communication distance between Modicon Quantum PLC racks and remote control stations.

• Ideal for power generation, oil & gas, water treatment, mining, and manufacturing facilities.

• Provides reliable network communication in environments with high electrical noise.

• Supports long-distance data transmission between PLCs, HMIs, SCADA systems, and industrial switches.

• Used for industrial Ethernet backbone construction requiring fiber optic connectivity.

• Improves network reliability by providing electrical isolation through fiber transmission.

Key Advantages

• Converts Ethernet signals to multimode fiber for long-distance industrial communication.

• Dual LC fiber ports and dual RJ45 Ethernet ports offer flexible network integration.

• High resistance to electromagnetic interference improves communication stability.

• Compact module design simplifies installation within Modicon Quantum systems.

• Industrial-grade construction ensures dependable operation in demanding environments.

• Supports continuous high-speed data transmission for mission-critical control systems.

• Helps reduce communication failures in electrically noisy production facilities.

Technical FAQs

1. What is the primary function of this module?
It converts Ethernet communication into fiber optic transmission for industrial networks.

2. Which PLC platform is it designed for?
It is designed for the Schneider Modicon Quantum automation platform.

3. What type of fiber does it support?
It supports multimode fiber with LC optical connectors.

4. How many communication ports are available?
It provides two LC fiber ports and two RJ45 Ethernet ports.

5. Why use fiber instead of copper Ethernet?
Fiber offers longer transmission distances and excellent immunity to electromagnetic interference.

6. Can it be used in continuous industrial operation?
Yes. It is designed for 24/7 industrial communication applications.

7. What types of systems commonly use this converter?
PLC networks, SCADA systems, DCS networks, and industrial Ethernet infrastructures.

8. Does it require special network configuration?
It integrates into standard industrial Ethernet networks with proper fiber connections.

9. What industries commonly install this module?
Power generation, petrochemical, water treatment, mining, and manufacturing.

10. What is the main benefit of using this converter?
It provides reliable long-distance Ethernet communication while minimizing signal interference.
