Brand:Schneider PLC Item No.:170AAO92100 Product Origin:France Product Dimensions:125 x 141.5 x 47.5 mm Product Weight:0.215 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

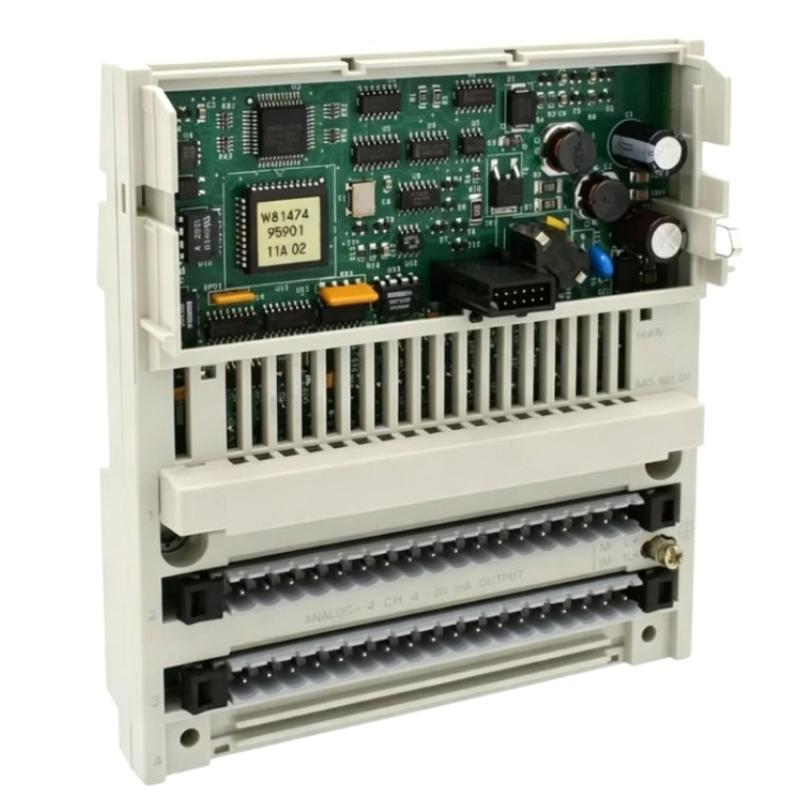

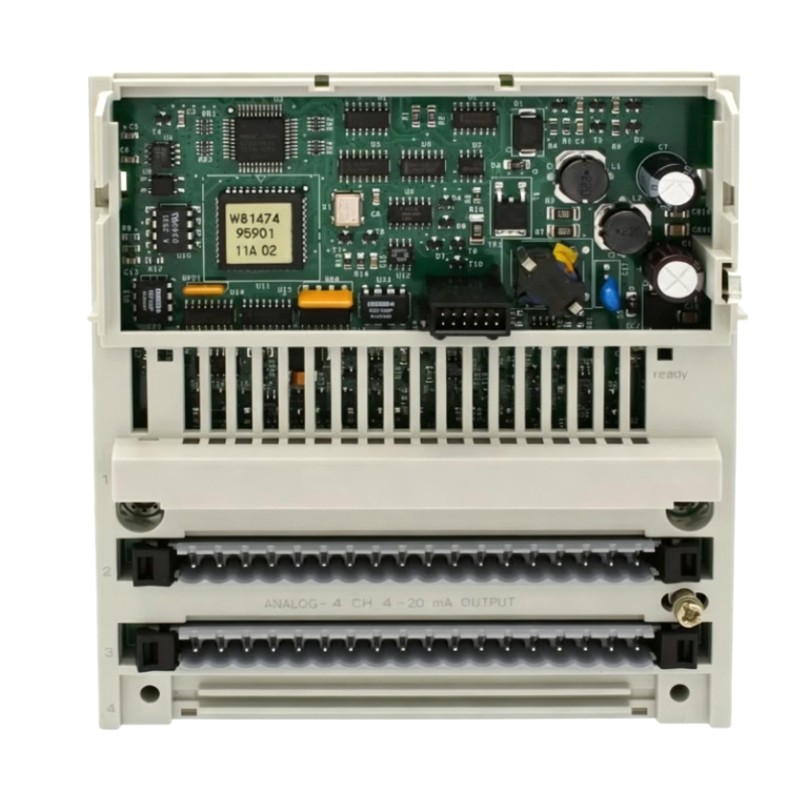

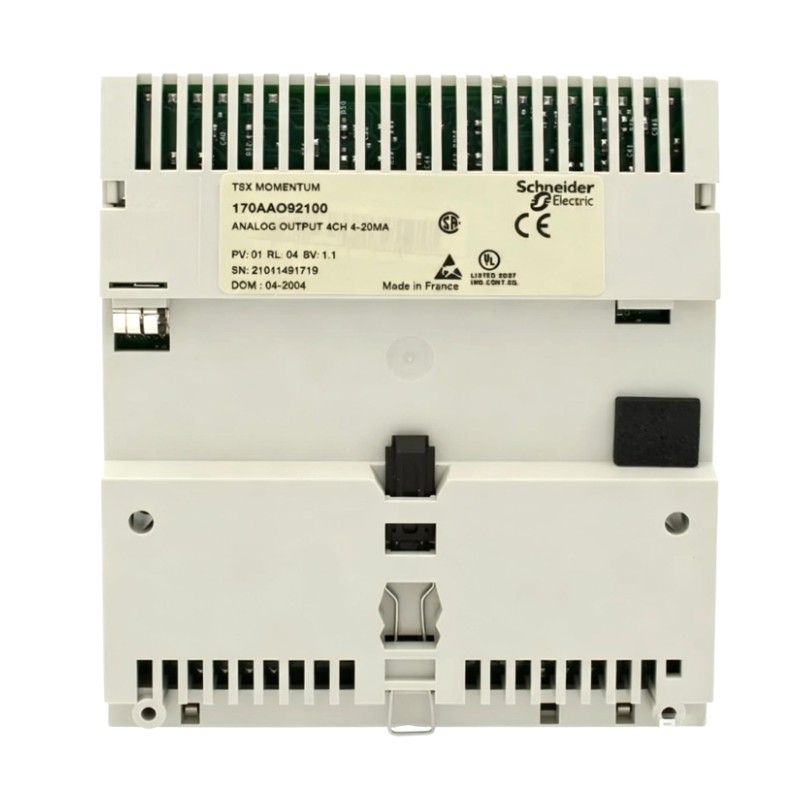

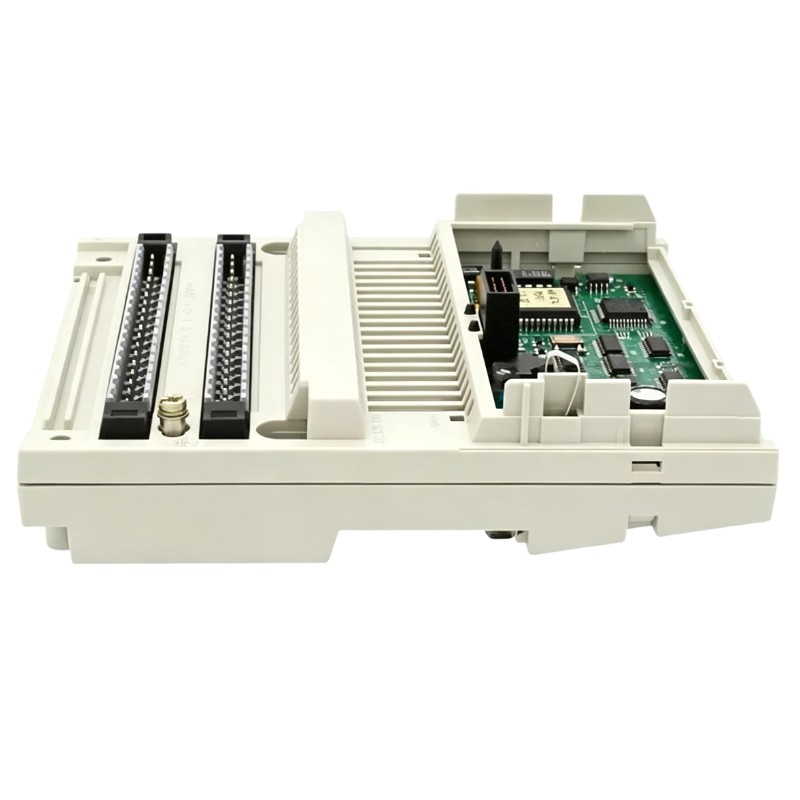

The Schneider 170AAO92100 Analog Output Base is designed for Modicon Momentum distributed I/O systems, providing reliable analog signal output for industrial automation applications. It enables PLC systems to accurately control field equipment such as variable frequency drives, proportional valves, and process actuators.
Technical Specifications
Parameter
Specification
Product Model
170AAO92100
Product Type
Analog Output Base
Product Series
Modicon Momentum
Analog Outputs
4 Channels
Output Signal
Voltage / Current
Installation
Distributed I/O
Dimensions
125 × 141.5 × 47.5 mm
Weight
0.215 kg
Application
Industrial analog output control
Operating Mode
Continuous duty
Recommended Related Models
Model
Product Name
Schneider 170AAI03000
Analog Input Base
Schneider 170ADI35000
Discrete Input Base
Schneider 170ADO35000
Discrete Output Base
Schneider 170ENT11002
Ethernet TCP/IP Communication Adapter
Popular Related Models
Model
Product Name
Schneider 170AAO12000
Analog Output Base
Schneider 170AAI52040
Analog Input Base
Schneider 170MCI00700
Momentum Communication Adapter
Schneider 170INT11003
Interbus Communication Adapter
Applications
• Designed for precise analog signal output in Modicon Momentum distributed I/O systems.
• Used to control variable speed drives, control valves, actuators, and process equipment.
• Suitable for process automation applications requiring voltage or current output signals.
• Commonly installed in manufacturing, water treatment, power generation, and material handling systems.
• Supports accurate control of flow, pressure, temperature, and level processes.
• Integrates seamlessly into distributed PLC architectures for remote I/O applications.
• Ideal for continuous industrial automation environments requiring stable analog outputs.
Key Advantages
• Four independent analog output channels provide flexible process control.
• Supports both ±10 V and 4–20 mA output signals for broad device compatibility.
• High-resolution output delivers accurate and repeatable control performance.
• Fast update time improves response in dynamic control applications.
• Built-in channel isolation enhances system reliability in electrically noisy environments.
• LED status indicators simplify diagnostics and maintenance.
• Compact Momentum design enables quick installation and easy system expansion.
Technical FAQs
1. What is the primary function of this module?
It converts PLC digital commands into precise analog output signals for field devices.
2. How many analog outputs are available?
The module provides four independent analog output channels.
3. Which output signal types are supported?
It supports both ±10 V voltage output and 4–20 mA current output.
4. Which PLC platform is it designed for?
It is designed for Schneider Modicon Momentum distributed I/O systems.
5. What devices can it control?
It can control variable frequency drives, control valves, actuators, and other analog-controlled equipment.
6. Is channel isolation provided?
Yes, isolation between channels and ground improves electrical protection and signal integrity.
7. Can it operate continuously in industrial environments?
Yes. It is designed for reliable 24/7 industrial operation.
8. How is module status monitored?
Integrated LED indicators provide channel status and diagnostic information.
9. What industries commonly use this module?
It is widely used in manufacturing, energy, water treatment, and process automation.
10. What is the benefit of using analog outputs instead of digital outputs?
Analog outputs allow precise, continuously variable control rather than simple ON/OFF operation.
