Introduction

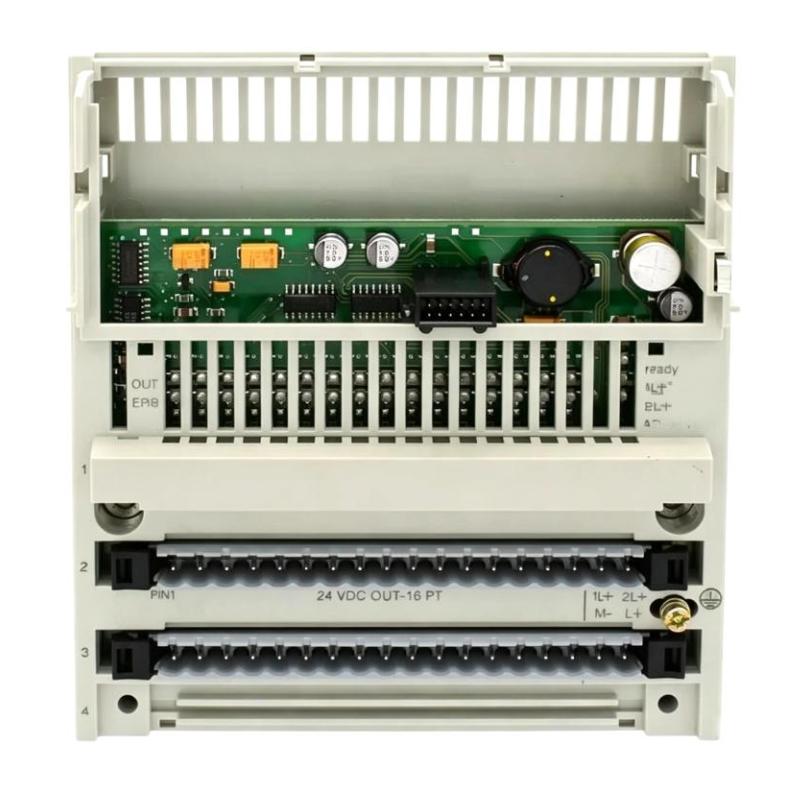

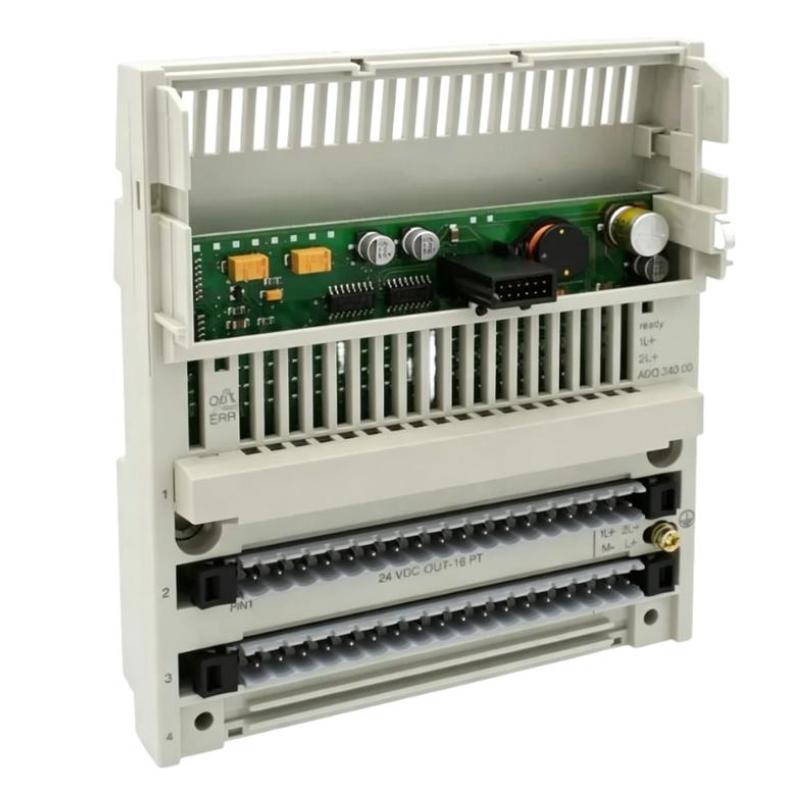

The Schneider 170ADO34000 is a 16-channel discrete output base module designed for Modicon Momentum automation systems. It delivers stable DC switching control for industrial field devices, ensuring precise execution of PLC commands. With its solid-state design and robust industrial construction, it is widely used in manufacturing, process control, and infrastructure automation where reliable output performance is essential.

Technical Specifications

Specification	Details
Product Model	Schneider 170ADO34000
Product Type	Discrete Output Base DC Module
Output Type	24 V DC Solid-State Output
Channels	16 Outputs (2 × 8 groups)
Platform	Modicon Momentum
Protection	Short-circuit & overload protection
Dimensions	141.5 × 125 × 47.5 mm
Weight	0.21 kg

Recommended Related Models

Model	Product Name
Schneider 170ADI34000	Discrete Input Module
Schneider 170AAO92100	Analog Output Module
Schneider 170INT11003	Interbus Communication Adapter
Schneider 170MCI00700	Modbus Communication Module

Popular Related Models

Model	Product Name
Schneider 170ADO34050	Enhanced Discrete Output Module
Schneider 170ADM35011	Discrete Solid-state I/O Base
Schneider 170AEC92000	Ethernet Communication Adapter
Schneider 170ANR12090	Remote I/O Network Adapter

Applications

• Industrial automation systems for controlling digital field actuators and devices.

• Production lines requiring precise ON/OFF output control for machine sequencing.

• Packaging and assembly equipment where synchronized output signals are critical.

• Conveyor and material handling systems for motor, relay, and actuator control.

• Water treatment and utility automation systems for process actuation.

• Power distribution systems for breaker and switching device control.

• Building automation systems for HVAC and auxiliary equipment control.

• General-purpose PLC-based distributed control architectures.

Key Advantages

• Provides reliable 16-channel solid-state DC output control for industrial systems.

• Ensures fast switching performance for real-time automation requirements.

• Strong electrical isolation improves system safety and signal stability.

• Reduces wiring complexity in modular PLC architectures.

• Supports stable operation in continuous 24/7 industrial environments.

• High resistance to electrical noise and industrial interference.

• Compact design integrates easily into Momentum distributed control systems.

• LED indicators provide clear real-time output status monitoring.

Technical FAQs

Q1. What is the main function of the 170ADO34000 module?
A1. It provides discrete DC output signals to control external devices such as relays, actuators, and indicators.

Q2. What type of loads can be driven by this module?
A2. It is typically used for 24V DC inductive and resistive loads such as solenoids, contactors, and pilot lamps.

Q3. How many output channels does it support?
A3. It supports 16 solid-state output channels arranged in two groups of eight.

Q4. Is the output switching mechanical or electronic?
A4. It uses solid-state electronic switching, which provides faster response and longer service life than mechanical relays.

Q5. Does the module include protection features?
A5. Yes, it includes short-circuit and overload protection at the output level.

Q6. Can it operate in high-speed automation applications?
A6. Yes, it supports fast switching suitable for time-sensitive industrial control processes.

Q7. How is the output status monitored?
A7. Each channel is equipped with LED indicators for quick visual status checking.

Q8. Is it suitable for distributed control systems?
A8. Yes, it is designed for Modicon Momentum distributed I/O architectures.

Q9. What ensures stable long-term operation?
A9. Industrial-grade components and robust thermal and electrical design ensure long-term reliability.

Q10. What should be checked if an output does not activate?
A10. Field wiring, load condition, and PLC output command logic should be verified first.
