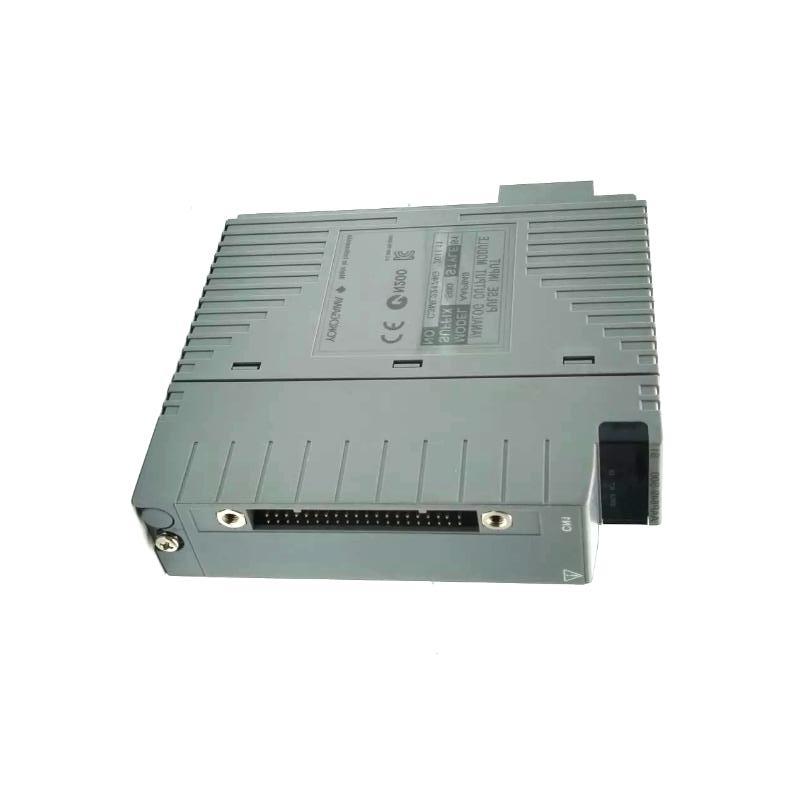

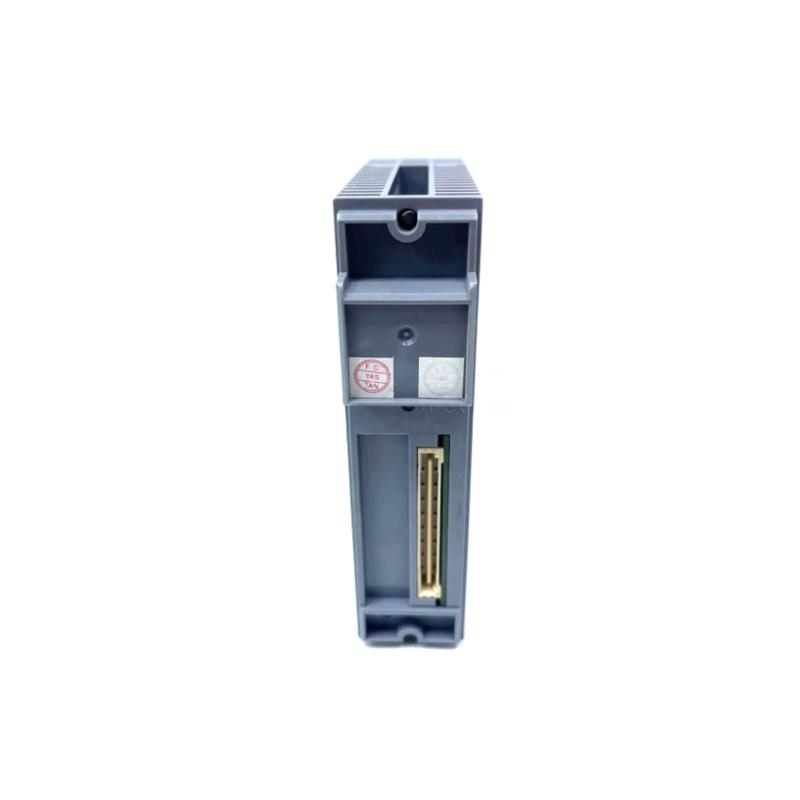

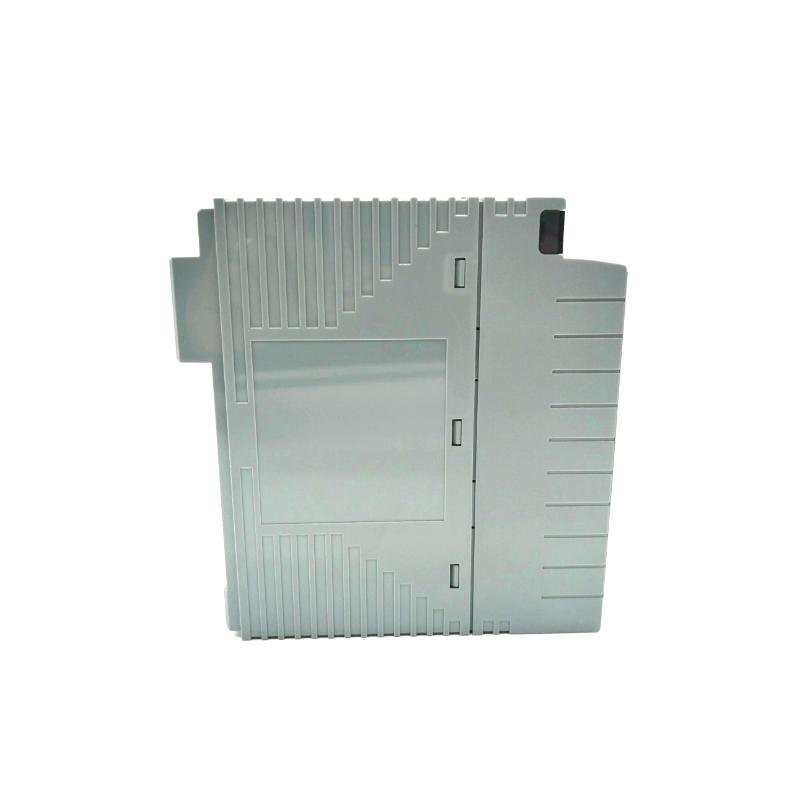

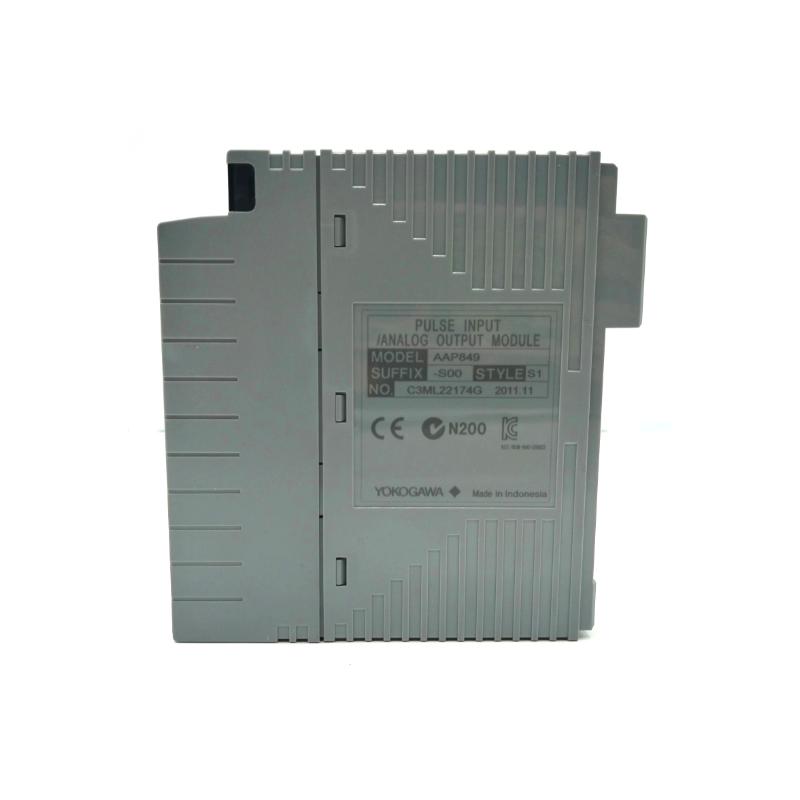

Yokogawa AAP849 Analog Input/Output Module Brand New Original

Applications

• Process Control Systems – Provides precise analog data acquisition and command signals for loops controlling temperature, pressure, and flow.

• Industrial Automation – Interfaces with sensors and field actuators to enable coordinated machine operation and feedback control.

• Energy and Utilities – Monitors and controls analog parameters for energy distribution networks and utility systems.

• Environmental Monitoring – Supports high‑resolution data from environmental sensors for regulatory compliance and safety systems.

Advantages

• High Channel Count – 12 analog inputs and 8 outputs in a single module reduce cabinet footprint and expand capability.

• Precision and Stability – 16‑bit resolution and ±0.1% accuracy deliver reliable analog measurement and control over time.

• Fast Signal Handling – 1000 Hz input sampling and 1.5 ms output response support dynamic control requirements.

• Excellent Noise Immunity – Galvanic isolation protects signal integrity in electrically noisy plant environments.

• Wide Operating Range – Designed to perform reliably across a broad temperature spectrum common in industrial settings.

• Compact Modular Design – Space‑efficient form factor enables flexible integration and expansion in control systems.

Technical FAQs

1. How many input and output channels does the AAP849 support?
   It has 12 analog input channels and 8 analog output channels.

2. What signal types does the module accept?
   Both voltage (–10 V to +10 V) and current (4–20 mA) signals are supported.

3. What is the resolution of the AAP849?
   The module provides 16‑bit resolution for accurate analog processing.

4. What is the input sampling rate?
   Inputs are sampled at 1000 Hz for responsive data acquisition.

5. How quickly can the outputs respond?
   Outputs respond within approximately 1.5 ms per channel.

6. Does the module offer galvanic isolation?
   Yes, galvanic isolation is provided across all input and output channels.

7. What are the physical dimensions of the module?
   The module measures 70 mm × 130 mm × 150 mm.

8. How much does the AAP849 weigh?
   It weighs approximately 0.48 kg.

9. What temperature range is supported?
   It operates reliably from −20 °C to +60 °C.

10. What applications is this module best suited for?
    It is ideal for process control, industrial automation, energy systems, and environmental monitoring where combined analog input and output are needed.
