Introduction

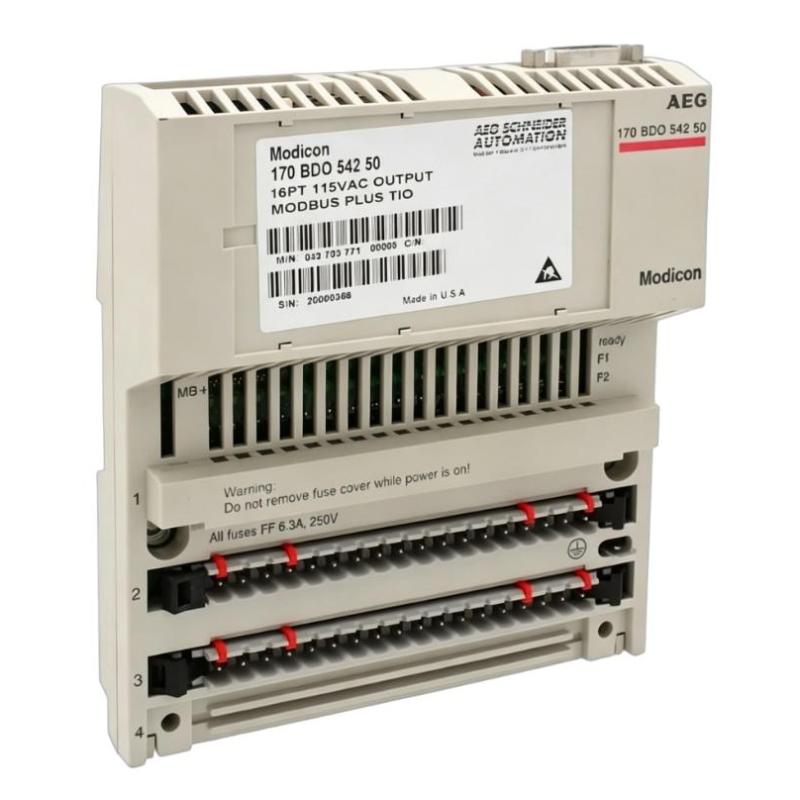

The Schneider 170BDO54250 Output Module is designed for industrial automation systems requiring reliable AC discrete output control. As part of the Modicon Momentum platform, it delivers stable switching performance for field devices such as relays, contactors, and solenoids. Its robust design and dependable operation make it suitable for demanding manufacturing and process environments where consistent output control is essential for system stability and efficiency.

Technical Specifications

Specification	Details
Product Model	Schneider 170BDO54250
Product Type	Discrete Output Module
Output Type	AC Discrete Output
Channels	16 Outputs (2 × 8 groups)
Platform	Modicon Momentum
Dimensions	141.5 × 125 × 47.5 mm
Weight	0.522 kg

Recommended Related Models

Model	Product Name
Schneider 170BDI54250	AC Discrete Input Module
Schneider 170ADO54050	AC Discrete Output Module
Schneider 170AAO92100	Analog Output Module
Schneider 170AAI03000	Analog Input Module

Popular Related Models

Model	Product Name
Schneider 170ADO34000	DC Discrete Output Base Module
Schneider 170ADI35000	Discrete Input Module
Schneider 170AEC92000	Ethernet Communication Adapter
Schneider 170ANR12090	Remote I/O Network Adapter

Applications

• Industrial automation systems for controlling AC field devices such as contactors, solenoids, and relays.

• Manufacturing production lines requiring reliable discrete output switching for machine coordination.

• Packaging and assembly equipment for timing-based actuator control.

• Conveyor systems used in logistics and material handling automation.

• Power distribution systems for switching auxiliary loads and control circuits.

• Water treatment plants for controlling pumps, valves, and process equipment.

• Building automation systems for HVAC and electrical load switching.

• General-purpose Modicon Momentum-based distributed output control applications.

Key Advantages

• Provides reliable 16-channel discrete output switching for industrial environments.

• Supports wide AC output voltage range for flexible application use.

• Fast response characteristics ensure precise control timing in automation processes.

• Strong electrical isolation improves operational safety and signal stability.

• Designed for seamless integration within Modicon Momentum architectures.

• Rugged construction ensures stable operation in harsh industrial conditions.

• LED indicators allow quick real-time output status monitoring.

• Suitable for continuous 24/7 industrial operation with long service life.

Technical FAQs

Q1. What type of loads can the 170BDO54250 control?
A1. It is typically used to switch AC loads such as relays, solenoids, indicator lamps, and contactors.

Q2. How many output channels does this module provide?
A2. It provides 16 discrete output channels arranged in two groups of eight.

Q3. What is the main advantage of using AC output modules?
A3. They allow direct switching of AC field devices without additional intermediate control components.

Q4. Is the module suitable for inductive loads?
A4. Yes, but proper suppression (such as RC snubbers or varistors) is recommended for long-term reliability.

Q5. How does the module ensure output stability?
A5. It uses industrial-grade isolation and solid-state switching to maintain consistent performance.

Q6. Can it be used in high-frequency switching applications?
A6. It is suitable for moderate-speed industrial switching, depending on load characteristics.

Q7. How is output status indicated?
A7. Each channel typically includes LED indicators for visual confirmation of switching status.

Q8. What system architecture is it designed for?
A8. It is designed for the Modicon Momentum distributed I/O platform.

Q9. What should be checked if an output fails to activate?
A9. Verify PLC command logic, field wiring, and load integrity before checking module health.

Q10. Why is output isolation important in this module?
A10. It prevents electrical noise and load disturbances from affecting the control system.
