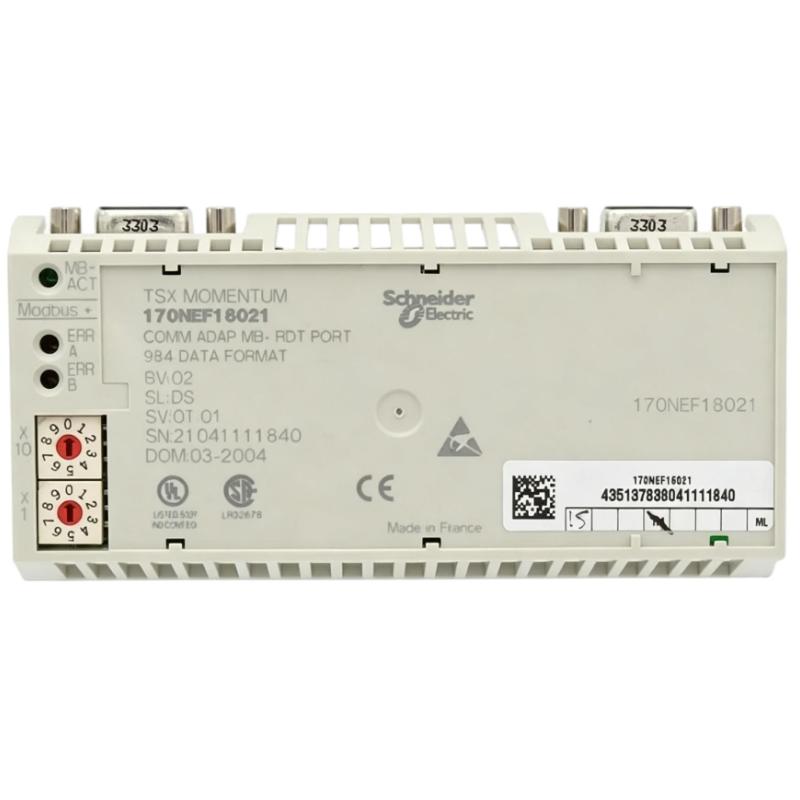

Schneider 170NEF16021 Modbus Plus Communication Adapter

Applications

• Used in Modicon Momentum-based legacy control systems for Modbus Plus network communication.

• Supports distributed PLC architectures in large-scale industrial plants.

• Applied in process industries such as water treatment, energy, and chemical production.

• Enables communication between remote I/O stations and central controllers.

• Common in conveyor systems and material handling lines requiring synchronized control.

• Used in factory automation networks where deterministic data exchange is required.

• Supports system expansion in existing Modbus Plus infrastructure.

• Integrates industrial controllers across multiple machine sections and production zones.

Key Advantages

• Maintains stable communication performance on Modbus Plus industrial networks.

• Supports consistent and predictable data exchange between distributed nodes.

• Works seamlessly with existing Modicon Momentum automation hardware.

• Dual-port design allows flexible network layout and easier system structuring.

• Strong resistance to electrical noise improves communication stability on site.

• Helps extend the life of legacy automation systems without full replacement.

• Clear status indication simplifies troubleshooting during commissioning or maintenance.

• Built for continuous operation in demanding industrial environments.

Technical FAQs

Q1. What is the role of the 170NEF16021 in an automation system?
A1. It connects Momentum I/O stations to a Modbus Plus network, allowing communication with PLC controllers.

Q2. Is this module used in modern Ethernet-based systems?
A2. No, it is intended for Modbus Plus-based legacy architectures rather than Ethernet networks.

Q3. What type of communication behavior does Modbus Plus provide?
A3. It provides deterministic, token-based communication designed for stable industrial control.

Q4. Can it be used in distributed control systems?
A4. Yes, it is commonly used in distributed I/O setups across large industrial facilities.

Q5. Does it require external configuration tools?
A5. In most systems, configuration is handled at the PLC or network level rather than directly on the module.

Q6. How does it behave under network disturbances?
A6. The module includes diagnostics that help identify communication interruptions or node issues.

Q7. Is it suitable for continuous industrial operation?
A7. Yes, it is designed for long-term operation in 24/7 industrial environments.

Q8. What makes Modbus Plus different from standard Modbus?
A8. Modbus Plus uses a high-speed token-passing method, providing more predictable communication timing.

Q9. Can it be integrated into existing systems without major changes?
A9. Yes, it is often used specifically to maintain or extend existing Modbus Plus installations.

Q10. What ensures stable communication over long periods?
A10. Its industrial-grade hardware design and network protocol structure ensure consistent performance.
