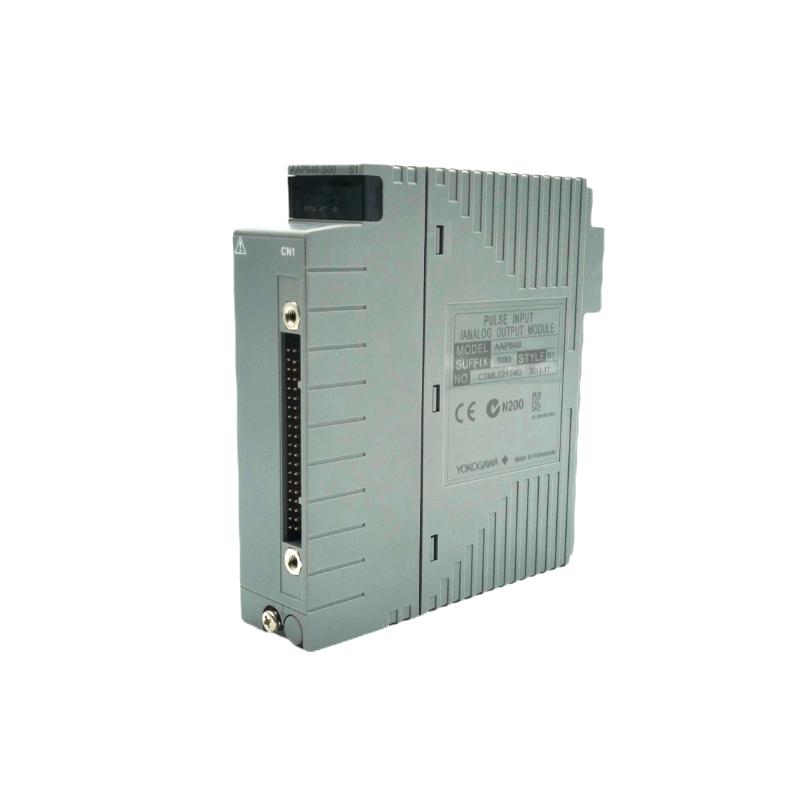

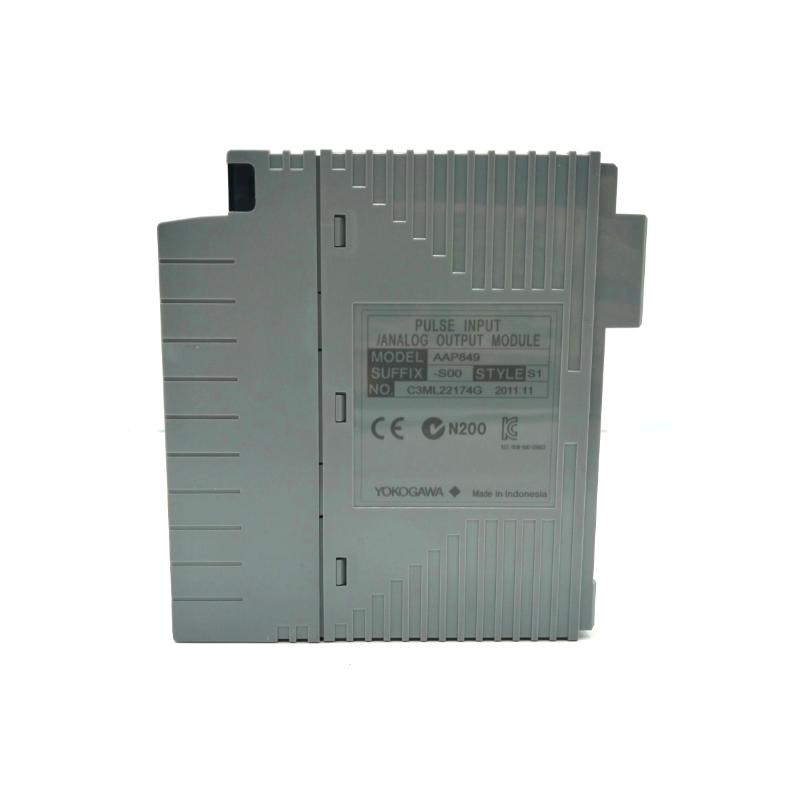

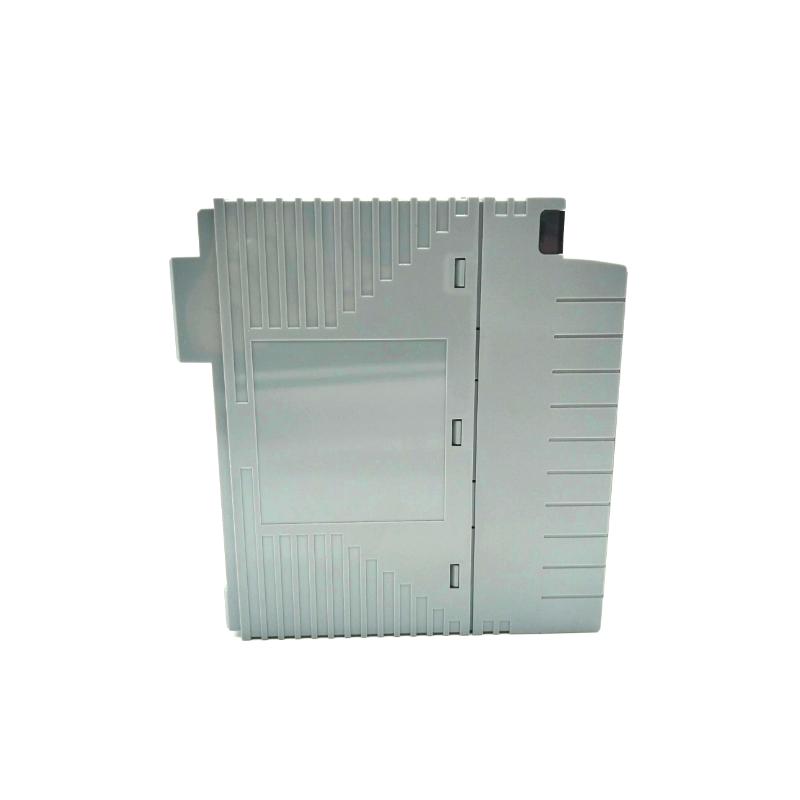

Yokogawa AAP849‑S00 Analog Input/Output Module 100% NEW

Applications

• Process Automation – Captures and controls analog signals for variables such as pressure, temperature, and flow within continuous processes.

• Industrial Machine Control – Interfaces with encoder feedback and actuator outputs in machine automation.

• Energy & Utilities Management – Monitors and regulates analog field devices within power generation and distribution systems.

• Environmental Monitoring Systems – Collects precise analog data for real‑time environmental reporting and regulation control.

Advantages

• High Channel Density – With 12 analog inputs and 8 outputs, the module supports large signal workloads with minimal hardware.

• High‑Precision Performance – 16‑bit resolution and ±0.1% accuracy deliver dependable, finely tuned analog conversion.

• Responsive Operation – Input sampling at 1000 Hz and output response in 1.5 ms deliver real‑time insight and control.

• Robust Signal Integrity – Galvanic isolation reduces interference and protects against electrical noise.

• Wide Operating Conditions – Designed to perform reliably from −20 °C to +60 °C, accommodating a range of industrial settings.

• Compact Modular Design – Space‑efficient architecture simplifies installation and system expansion.

Technical FAQs

1. How many analog input and output channels does the AAP849‑S00 support?
   It supports 12 input channels and 8 output channels.

2. What types of signals can the module handle?
   Both voltage (–10 V to +10 V) and current (4–20 mA) signals are supported.

3. What is the resolution of the AAP849‑S00?
   The module provides 16‑bit resolution for high‑fidelity analog processing.

4. What is the input sampling rate?
   Inputs are sampled at 1000 Hz for timely data acquisition.

5. What is the output response time?
   Outputs transition within approximately 1.5 ms per channel.

6. Does the module offer galvanic isolation?
   Yes — isolation is provided across all input and output channels for improved signal integrity.

7. What are the physical dimensions of this module?
   The AAP849‑S00 measures 70 mm × 130 mm × 150 mm.

8. How much does the module weigh?
   It weighs approximately 0.48 kg.

9. What is the operating temperature range?
   The module reliably operates from −20 °C to +60 °C.

10. In what applications is the AAP849‑S00 typically used?
    It is commonly used in process automation, industrial machine control, energy management, and environmental monitoring systems.
