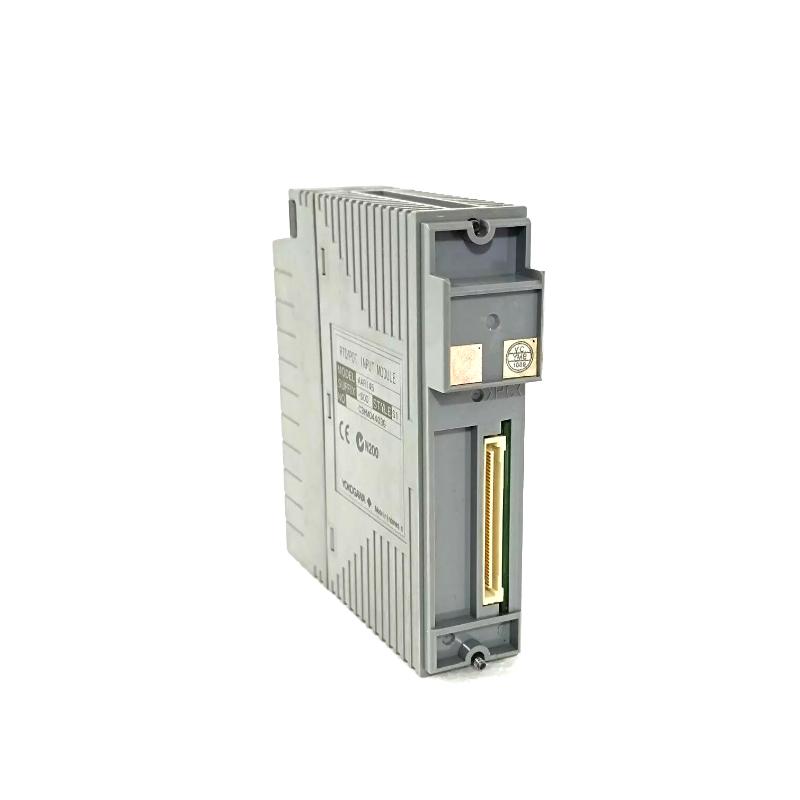

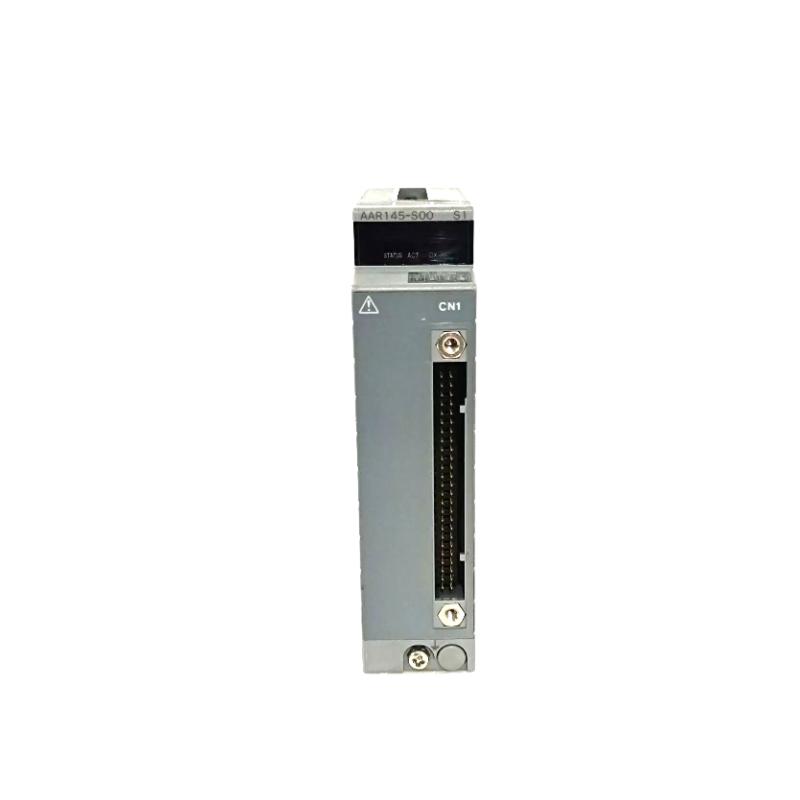

Yokogawa AAR145‑S00 Analog/Relay Output Module 100% NEW

Applications

• Process Control Systems – Provides reliable analog outputs for valves and tuning parameters, plus relay signals for alarms and interlocks.

• Machine Automation – Drives both analog actuators and discrete control circuits for coordinated manufacturing tasks.

• Energy & Utility Systems – Interfaces with energy regulation devices, breakers, and status indicators.

• Infrastructure Automation – Supports control and safety outputs in water treatment, transportation, and HVAC systems.

Advantages

• Dual Output Capability – Combines analog signaling and relay contacts in one module, reducing hardware needs.

• Reliable Signal Integrity – Galvanic isolation and output protection safeguard against electrical noise and interference.

• Fast Response – Quick analog and relay actuation supports real‑time control decisions.

• Built‑in Protection – Overload and short‑circuit safeguards preserve module and system health.

• Compact Industrial Design – Space‑efficient format fits seamlessly into control panel and rack systems.

• Wide Operating Range – Designed to operate across a broad industrial temperature spectrum.

Technical FAQs

1. What types of outputs does the Yokogawa AAR145‑S00 provide?
   It provides both analog outputs and relay contact outputs in one module.

2. How many analog output channels are available?
   The module includes 4 analog output channels.

3. How many relay outputs does the module have?
   There are 4 relay output contacts.

4. What range do the analog outputs support?
   Standard industrial 4–20 mA output range is supported.

5. What is the typical response time for the outputs?
   Analog outputs respond within ~10 ms, while relay actions respond within ~15 ms.

6. Is there isolation between output channels?
   Yes, galvanic isolation is provided across all outputs to reduce interference.

7. What protection features are built into the module?
   The AAR145‑S00 includes overload and short‑circuit protection for enhanced reliability.

8. Where is the module typically mounted?
   It installs on standard DIN rail or compatible system carriers inside control enclosures.

9. What is the operating temperature range?
   It operates reliably from −20 °C to +60 °C for varied industrial environments.

10. In what applications is this module commonly used?
    It is commonly used in process control, machine automation, energy systems, and infrastructure automation where both analog and discrete control signals are required.
