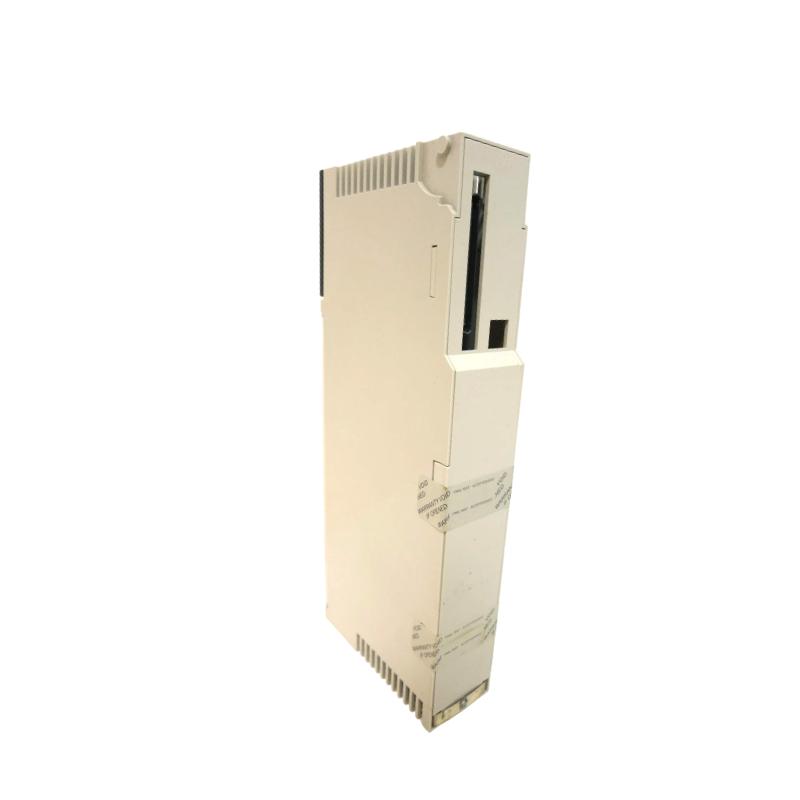

The Schneider 170AMM11030 is a mixed analog and discrete I/O base module designed for the Modicon Momentum automation platform. It combines analog input/output channels with discrete input/output processing in a single compact module, making it suitable for distributed control architectures and flexible industrial automation systems.
This module is widely used in applications requiring both signal acquisition and control output within a compact footprint. Its modular Momentum design enables easy integration into existing PLC systems while supporting scalable expansion in industrial environments.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 170AMM11030 |
| Product Series | Modicon Momentum |
| Module Type | Mixed Analog / Discrete I/O Base |
| Analog Inputs | 2 channels (±10 V DC) |
| Analog Outputs | 2 channels (±10 V DC) |
| Discrete Inputs | 16 channels (24 V DC) |
| Discrete Outputs | 8 channels (24 V DC solid-state) |
| Resolution (Analog) | 14-bit |
| Response Time (Inputs) | ~6–7 ms |
| Output Response Time | ~1.8 ms |
| Input Type | Sourcing (true high) |
| Output Type | Solid-state switching |
| Isolation | Channel-to-bus isolation (per system design) |
| Mounting | Momentum backplane system |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | 16–42 V DC |
Mechanical Dimensions & Weight
| Parameter | Value |
| Dimensions (H × W × D) | 141.5 × 125 × 47.5 mm |
| Weight | 0.22 kg |
Recommended Compatible Modules
The 170AMM11030 is commonly used with the following Modicon Momentum components:
- 171CCC78010 Processor Module
- 170ENT11000 Ethernet Communication Adapter
- 170ADI / 170ADO series modules
- Momentum power supply bases
- Remote I/O expansion modules
- Fieldbus communication interfaces
Common Momentum System Modules
Frequently used in the same automation architecture:
- 170CPU series controllers
- 170PNT network adapters
- 170XTS terminal bases
- Momentum I/O expansion modules
- Schneider Modicon communication modules
