Brand:Epro PLC Item No.:PR6424/105-021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

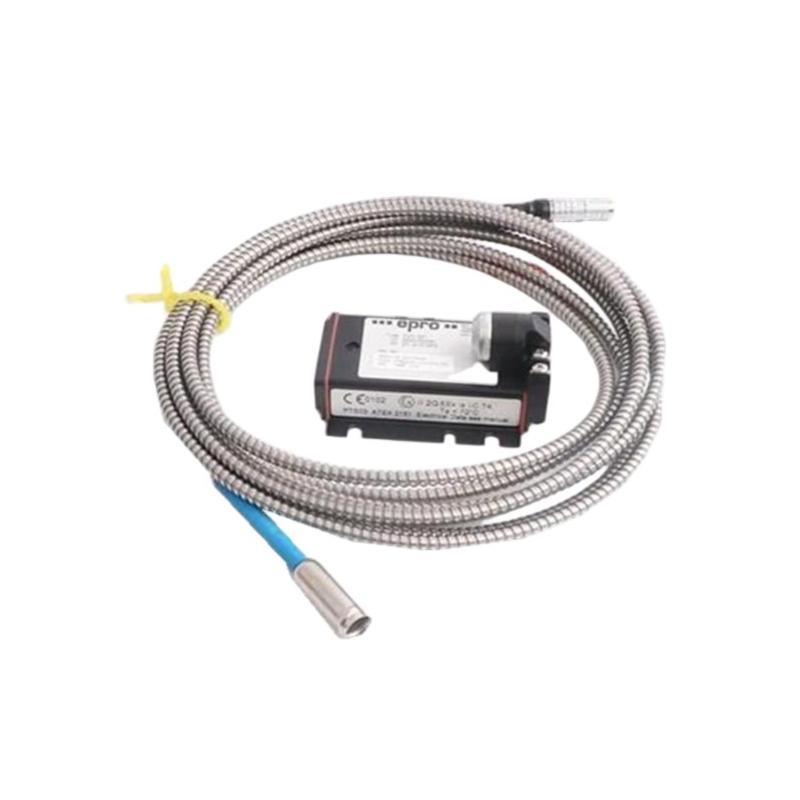

The Epro PR6424/105-021 is part of the PR6424 eddy current proximity sensor family used in critical rotating machinery protection systems.
It provides high-resolution, non-contact measurement of shaft displacement and vibration, enabling early detection of mechanical issues such as imbalance, misalignment, and bearing wear. Its 16 mm probe design offers a balanced combination of sensitivity and robustness, making it suitable for a wide range of industrial applications.
This sensor is commonly deployed in predictive maintenance systems where continuous monitoring and high reliability are required.
Technical Specifications
Parameter
Specification
Product Model
PR6424/105-021
Sensor Type
16 mm Eddy Current Probe
Measurement Principle
Non-contact eddy current induction
Application
Shaft vibration & displacement monitoring
Typical System
EPRO CON021 / CON011 signal converters
Operating Environment
Industrial turbomachinery systems
Material
Stainless steel probe body
Installation Type
Fixed proximity probe mounting
Shipping Weight
0.2 kg / 0.441 lb
Recommended Related Models
EPRO PR6424/010-100
EPRO PR6424/010-110
EPRO PR6424/003-010
EPRO CON021 Signal Converter
EPRO PR6423 Series Probes
Popular Related Models
EPRO PR6424/105-021 (this model)
EPRO PR6424/010-100+CON021
EPRO PR6424/010-110+CON021
EPRO PR6423/xxx Series
EPRO Eddy Current Monitoring System Kits
Applications
The Epro PR6424/105-021 is a non-contact displacement measurement probe designed for high-precision monitoring of rotating machinery shaft behavior.
It is widely used in:
Steam turbine vibration and shaft position monitoring
Gas turbine rotor displacement measurement
Compressor axial position and eccentricity detection
Pump and fan condition monitoring systems
Industrial predictive maintenance platforms
API 670 compliant machinery protection systems
Advantages
High-precision non-contact measurement based on eddy current principle
Excellent stability for long-term turbomachinery monitoring
Strong resistance to oil, dust, and industrial contamination
Suitable for high-speed rotating shaft environments
High linearity for accurate displacement measurement
Robust industrial-grade probe construction
Compatible with standard EPRO signal conditioning systems
Reliable performance under high vibration conditions
Designed for continuous industrial operation
Optimized for critical asset protection systems
Technical FAQs (10)
Q1: What is the operating principle of this sensor?
It uses eddy current induction to measure the distance between the probe tip and a conductive target.
Q2: What type of measurements can it perform?
It measures shaft displacement, vibration, eccentricity, and position.
Q3: Is it a contact or non-contact sensor?
It is a fully non-contact sensor.
Q4: What systems is it typically used with?
It is paired with EPRO signal converters such as CON011/CON021 modules.
Q5: Can it measure both static and dynamic displacement?
Yes, it supports both static position and dynamic vibration measurement.
Q6: Is it suitable for high-temperature environments?
Yes, it is designed for industrial turbomachinery conditions.
Q7: Does it require calibration after installation?
No field calibration is required for the probe itself.
Q8: What industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy industry.
Q9: Is it resistant to electromagnetic interference?
Yes, it is engineered for high EMI resistance.
Q10: What type of machinery is it best suited for?
Large rotating equipment such as turbines, compressors, and pumps.
