Brand:Bently Nevada PLC Item No.:3500/61-01-00 Product Origin:USA Product Dimensions:241.3 x 24.4 x 99.1 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

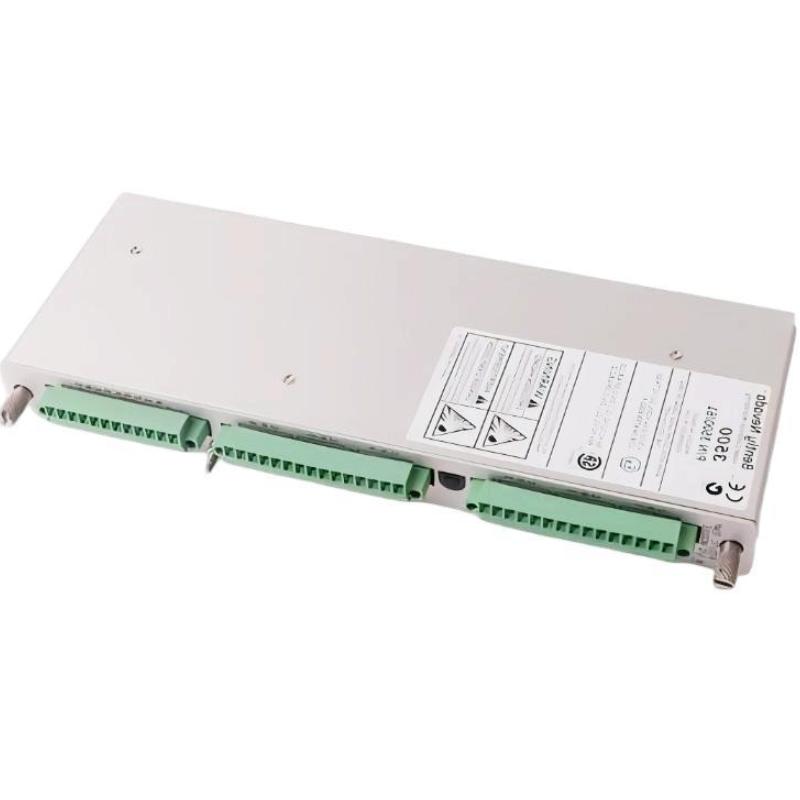

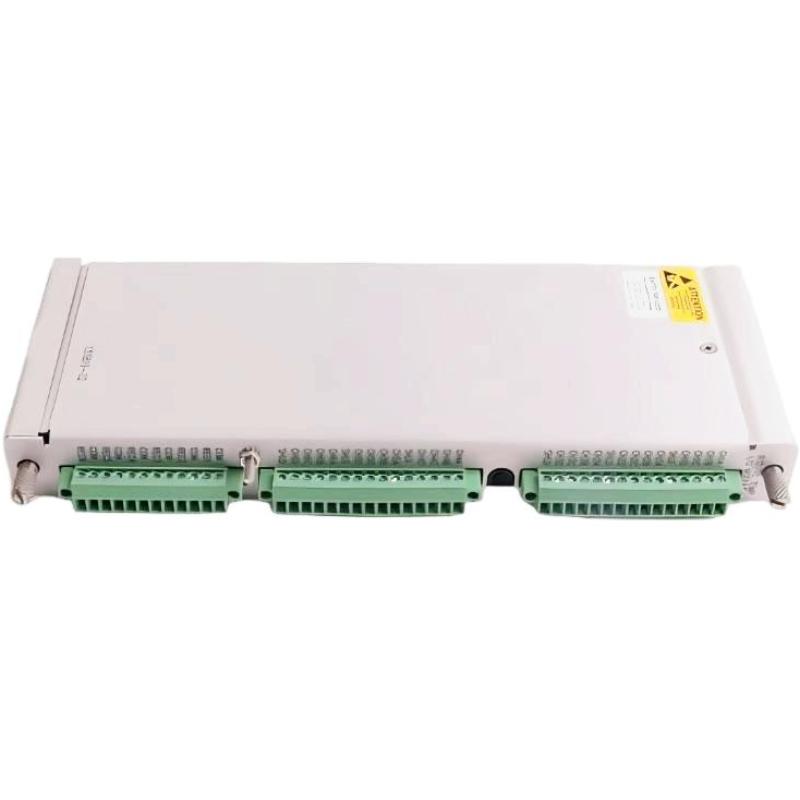

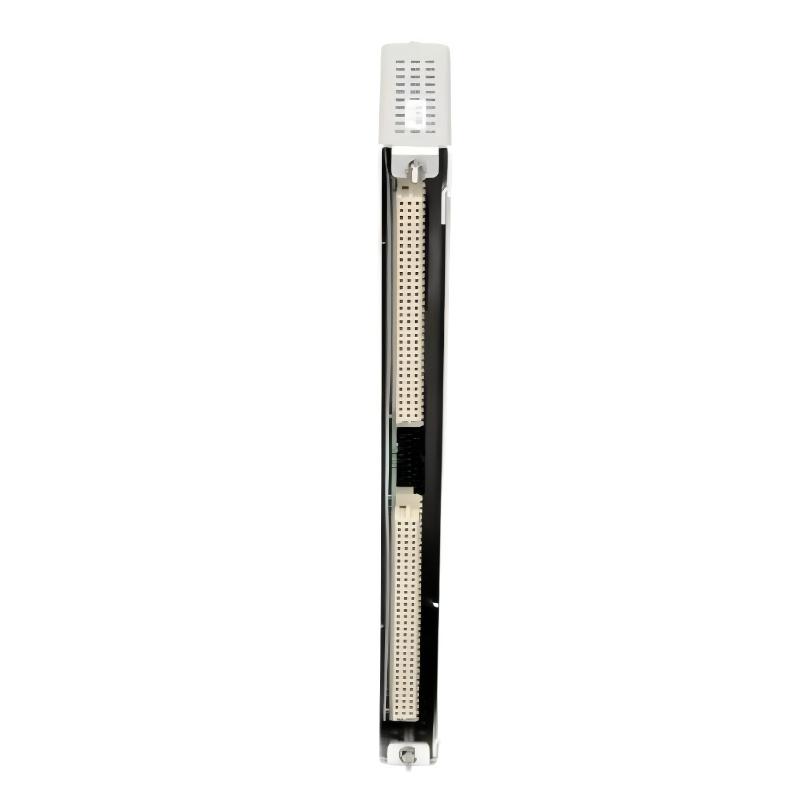

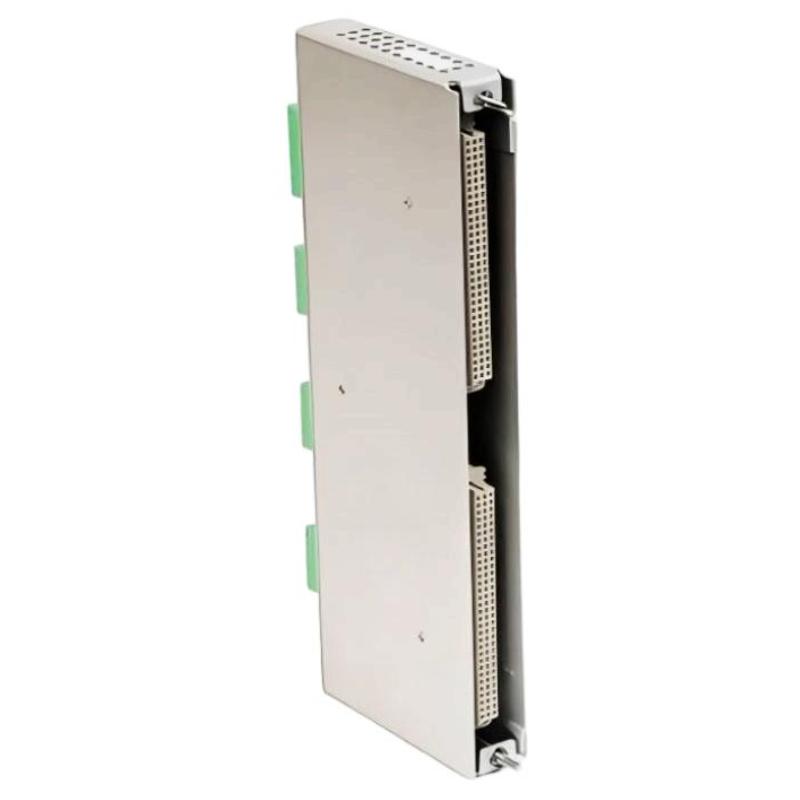

The Bently Nevada 3500/61-01-00 (133819-02) is an RTD/thermocouple input module designed for use in the 3500 machinery protection system. It provides temperature monitoring capability for rotating and stationary equipment, allowing operators to track thermal conditions in bearings, motors, and process systems. By integrating temperature data into the protection rack, it supports early detection of overheating and improves overall equipment reliability in industrial environments.
Technical Specifications
Specification
Details
Product Model
3500/61-01-00 (133819-02)
Product Type
RTD/TC Input/Output Module
System Compatibility
Bently Nevada 3500 Series
Input Types
RTD / Thermocouple
Dimensions
241.3 × 24.4 × 99.1 mm
Weight
0.45 kg
Termination
Internal terminals
Installation Type
3500 rack-mounted
Application
Temperature monitoring
Operating Environment
Industrial machinery systems
Recommended Related Models
Model
Product Name
Bently Nevada 3500/42-01-00-00
Vibration Monitor Module
Bently Nevada 3500/40-01-00-00
Proximitor Monitor Module
Bently Nevada 3500/15-02-05-00
Power Module
Bently Nevada 3500/25-01-00-00
Keyphasor Module
Popular Related Models
Model
Product Name
Bently Nevada 3500/05-01-02-00
Rack Interface Module
Bently Nevada 3500/32-01-00-00
Relay Module
Bently Nevada 3500/93-01-00-00
Display Interface Module
Bently Nevada 3500/42-01-00-00
Vibration Monitor Module
Applications
• Temperature monitoring of bearings in turbines and compressors
• Used in pump systems for detecting overheating conditions in lubrication and process lines
• Applied in power plant auxiliary equipment such as motors, fans, and cooling systems
• Industrial gearbox temperature supervision in continuous production environments
• Petrochemical and refinery machinery protection systems with thermal monitoring needs
• Condition monitoring racks combining vibration and temperature data
• OEM machinery control systems integrating RTD and thermocouple inputs
• General rotating equipment protection where thermal trending is required
Key Advantages
• Supports both RTD and thermocouple inputs for flexible temperature monitoring
• Integrates directly into Bently Nevada 3500 rack systems
• Provides stable temperature signal processing for industrial protection logic
• Compact module design fits standard 3500 rack architecture
• Reliable performance in continuous operation environments
• Helps detect early-stage overheating in critical machinery components
• Designed for consistent operation in electrically noisy industrial settings
• Reduces need for separate standalone temperature monitoring devices
Technical FAQs
Q1. What is the main function of this module?
A1. It collects and processes temperature signals from RTD and thermocouple sensors.
Q2. Where is it typically used?
A2. Inside 3500 system racks for monitoring machinery and process temperatures.
Q3. What types of sensors does it support?
A3. RTD sensors and thermocouples.
Q4. What kind of equipment is monitored?
A4. Turbines, compressors, pumps, motors, and auxiliary systems.
Q5. Is it suitable for continuous monitoring?
A5. Yes, it is designed for 24/7 industrial operation.
Q6. Does it work independently?
A6. No, it operates as part of the Bently Nevada 3500 system.
Q7. What happens if temperature exceeds limits?
A7. The system can trigger alarms or protection actions depending on configuration.
Q8. Is calibration required?
A8. Calibration is typically handled at system setup and sensor level.
Q9. What industries commonly use it?
A9. Power generation, oil & gas, petrochemical, and heavy industry.
Q10. Why is temperature monitoring important in machinery protection?
A10. It helps prevent overheating-related failures and extends equipment life.
