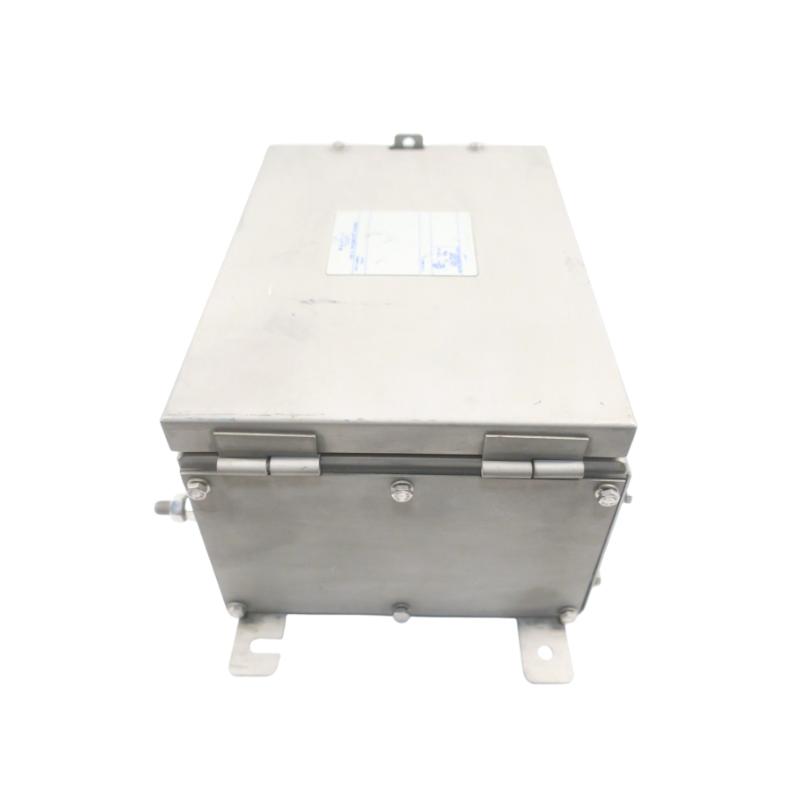

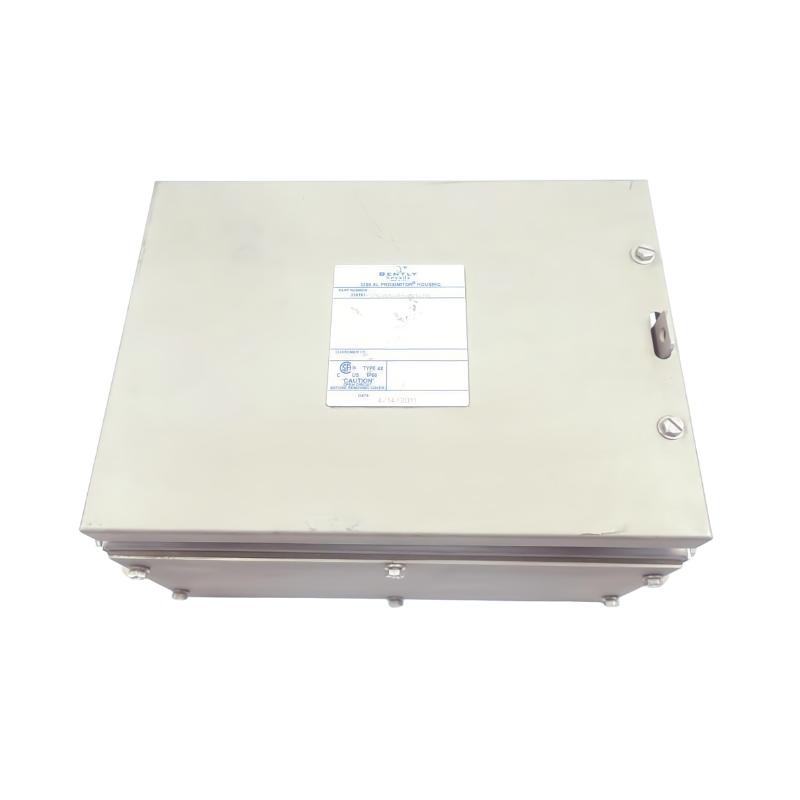

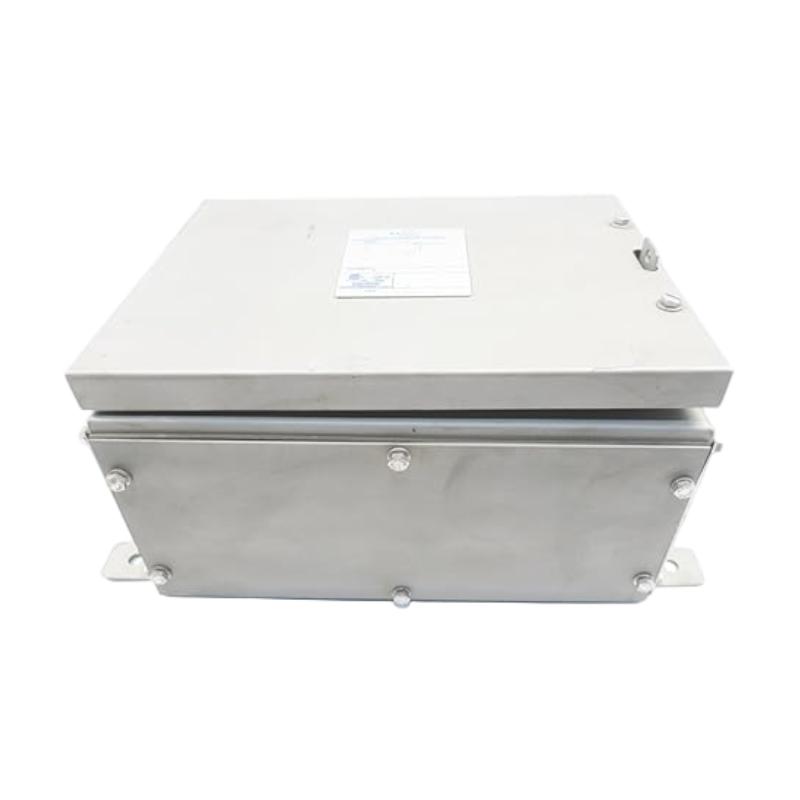

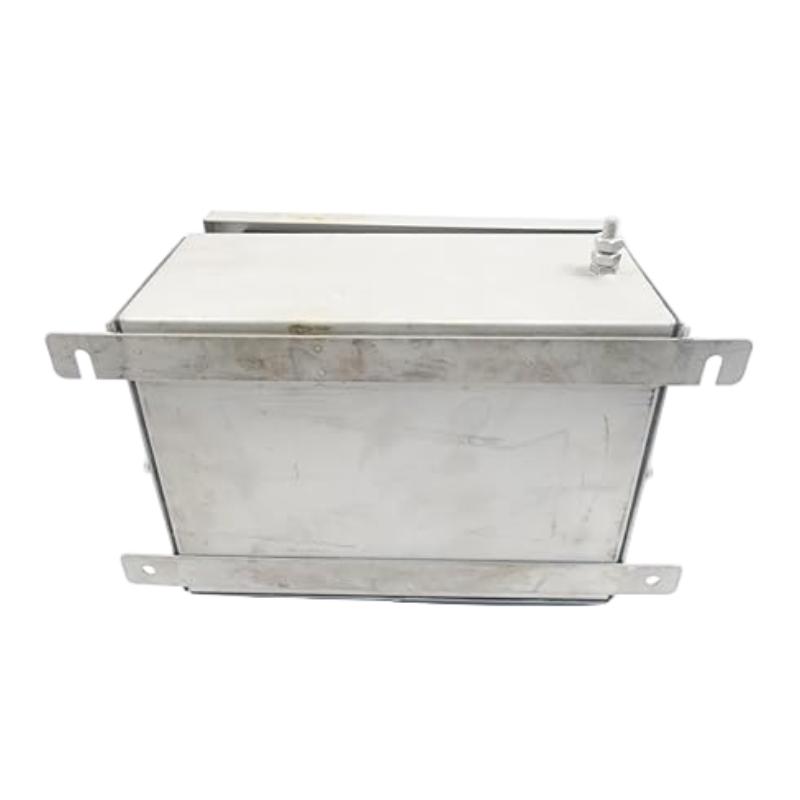

The Bently Nevada 330181-01-03-01-00-01 is a multi-purpose stainless steel housing designed for use within the 3300 XL proximity transducer system architecture. It is used to securely mount and protect Proximitor sensors and related monitoring electronics in industrial environments.

This enclosure is engineered for machinery condition monitoring applications where vibration, speed, and position measurement systems require robust environmental protection. It supports structured installation of multiple Proximitor sensors in DIN-rail or panel-mounted configurations, ensuring stable system integration in harsh industrial conditions such as power plants, oil & gas facilities, and heavy manufacturing environments.

The housing is designed to improve system organization, electromagnetic shielding, and long-term mechanical reliability of Bently Nevada monitoring installations.

Technical Specifications

Item	Description
Manufacturer	Bently Nevada (Baker Hughes)
Model	330181-01-03-01-00-01
Product Type	Multi-Purpose Stainless Steel Housing
Series	3300 XL Proximity System
Application	Proximitor sensor mounting & protection
Capacity	Supports multiple Proximitor sensor installations (configuration dependent)
Mounting Type	DIN rail / panel mounting
Material	Stainless steel
Function	Sensor housing and system integration enclosure
System Compatibility	3300 XL 8mm proximity transducer system

Mechanical Dimensions & Weight

Parameter	Value
Dimensions (H × W × D)	305 × 305 × 152 mm (typical housing configuration reference)
Weight	Approx. 3.0 – 4.5 kg

Recommended Compatible Components

The 330181-01-03-01-00-01 is commonly used with:

Bently Nevada 3300 XL 8mm Proximity Probes
3300 XL Proximitor Sensors
330190 Extension Cable systems
3300 XL Monitoring Modules
Vibration monitoring racks
Machinery protection systems

Industrial Applications

This housing is widely used in condition monitoring and machinery protection systems:

Power generation turbines
Oil and gas rotating equipment
Compressor monitoring systems
Pump vibration monitoring systems
Industrial machinery protection systems
Refinery and petrochemical plants
Heavy manufacturing equipment
Marine propulsion systems
Mining machinery monitoring
SCADA-based condition monitoring systems

Key Advantages

Provides mechanical protection for Proximitor sensor systems
Supports structured mounting of monitoring electronics
Stainless steel construction for industrial durability
Improves electromagnetic shielding and system stability
Compatible with 3300 XL vibration monitoring architecture
Suitable for harsh industrial environments
Supports modular system expansion
Designed for long-term machinery protection applications
Facilitates organized control cabinet installation
Proven reliability in rotating equipment monitoring systems

Technical FAQs

1. What is the 330181-01-03-01-00-01 used for?

It is a stainless steel housing used to mount and protect Bently Nevada 3300 XL Proximitor sensors.

2. Does it process vibration signals?

No, it is a mechanical enclosure, not an electronic measurement device.

3. Which system is it compatible with?

It is used with the Bently Nevada 3300 XL proximity transducer system.

4. What material is it made of?

It is made of industrial-grade stainless steel.

5. What is its main function?

It provides physical protection and organized mounting for monitoring components.

6. What are the dimensions?

Approximately 305 × 305 × 152 mm depending on configuration.

7. What is the weight?

Approximately 3.0 – 4.5 kg depending on mounting configuration.

8. Can it be used in harsh environments?

Yes, it is designed for industrial and high-vibration environments.

9. Does it support multiple sensors?

Yes, it is designed for multi-sensor Proximitor installations.

10. Why is this housing important?

Because it ensures safe, stable, and organized installation of vibration monitoring electronics in critical machinery protection systems.
