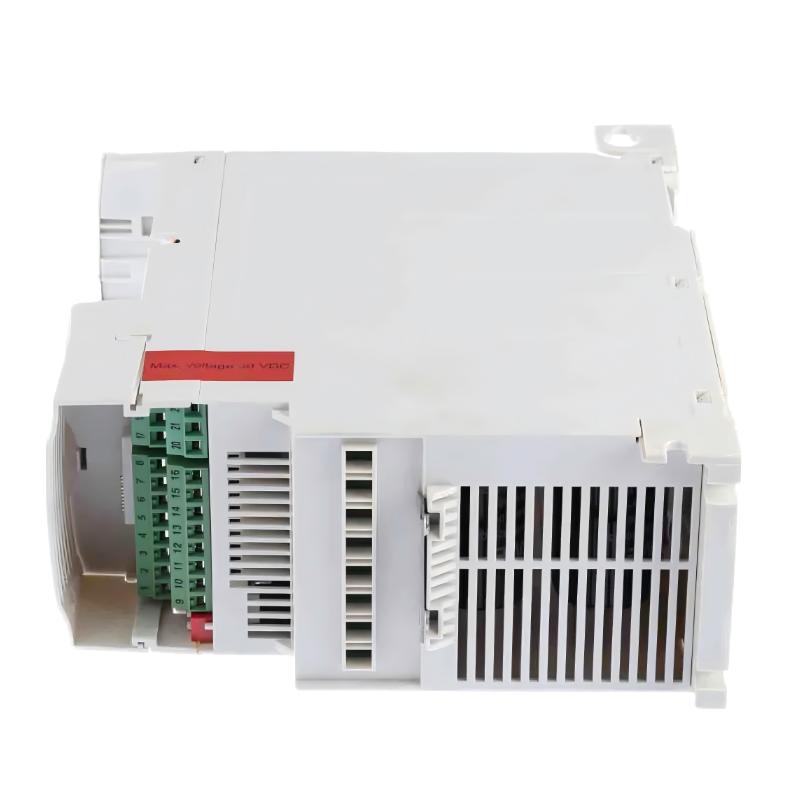

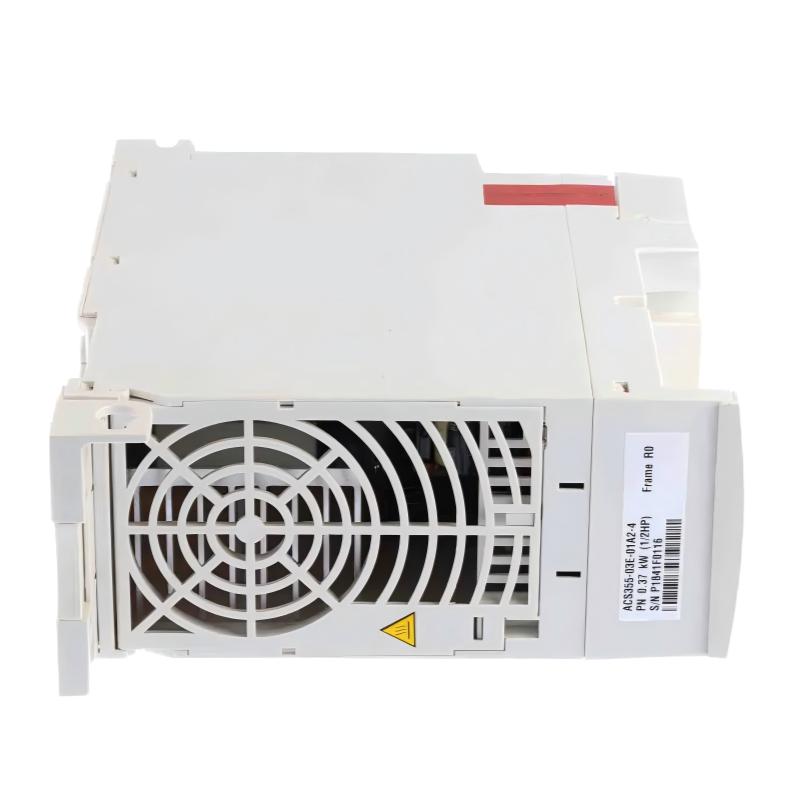

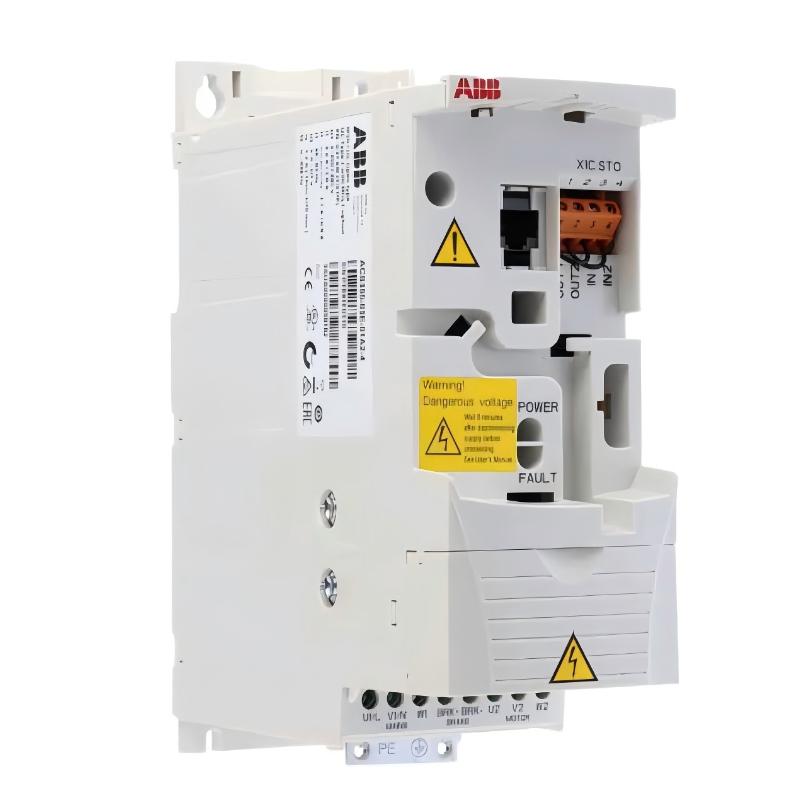

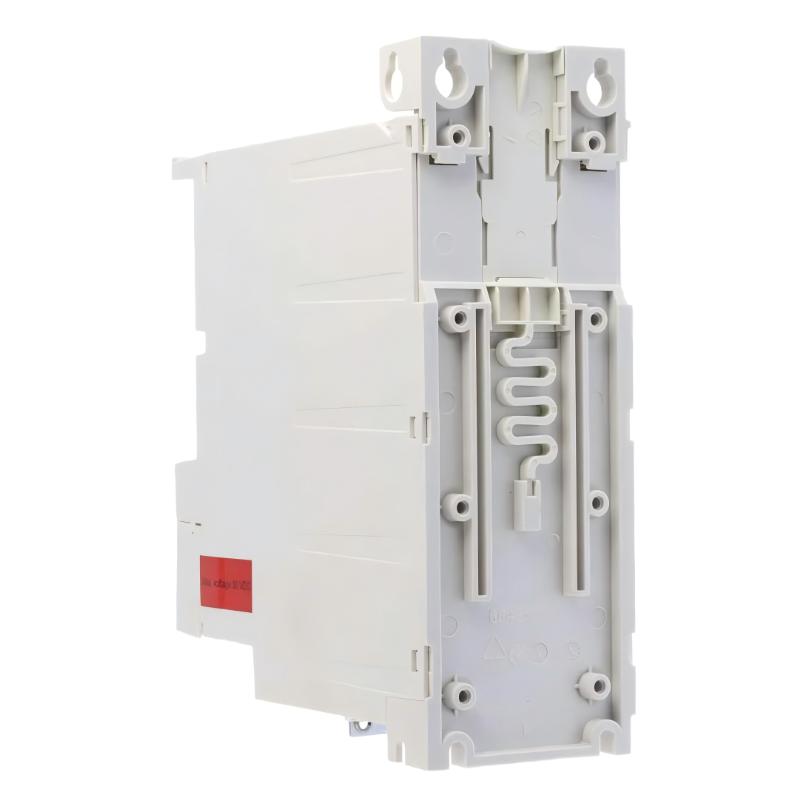

ABB ACS355-03E-01A2-4 3ABD0000058242 Frequency Converter
ABB ACS355-03E-01A2-4 3ABD0000058242 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS355-03E-01A2-4 Product Origin:Sweden (SE) Product Dimensions:169 × 70 × 161 mm Product Weight:1.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS355-03E-01A2-4 is a compact frequency converter designed for machinery applications requiring reliable motor speed control and straightforward integration. It is widely used in OEM equipment where installation space is limited and consistent motor performance is required.
Technical Specifications
Item
Specification
Product Model
ACS355-03E-01A2-4
Product Code
3ABD0000058242
Product Type
Frequency Converter
Rated Power
0.37 kW
Rated Current
1.2 A
Supply Voltage
380–480 V AC, 3-phase
Control Methods
V/f control, Sensorless vector control
Protection Class
IP20
Mounting Type
Wall / Panel mounted
Dimensions
169 × 70 × 161 mm
Weight
1.08 kg
Recommended Related Models
Model
Product Name
ACS355-03E-04A1-4
ABB ACS355 Machinery Drive (Higher Current Variant)
ACS310-03E-01A2-4
ABB ACS310 General Purpose Drive
ACS550-01-03A3-4
ABB ACS550 Industrial AC Drive
ACS580-01-03A4-4
ABB ACS580 General Purpose Drive
Popular Related Models
Model
Product Name
ACS355-01E-02A4-4
ABB ACS355 Compact Machinery Drive
ACS355-03E-03A3-4
ABB ACS355 Mid Power Machinery Drive
ACS310-01E-02A0-4
ABB ACS310 Basic Industrial Drive
ACS550-01-04A1-4
ABB ACS550 Standard Industrial Drive
Applications
• Used in small conveyor systems for stable speed control in packaging and material handling lines.
• Applied in pump systems for maintaining constant flow in water treatment and light industrial processes.
• Suitable for fan and ventilation systems requiring adjustable airflow control in HVAC applications.
• Integrated into textile and printing machinery for precise motor speed regulation.
• Used in woodworking and plastic processing machines where consistent torque control is required.
• Installed in OEM machinery panels where compact size and simple commissioning are important.
Key Advantages
• Compact design allows easy integration into tight control cabinet layouts.
• Sensorless vector control provides stable motor performance across variable load conditions.
• Built-in braking and protection functions improve system reliability during dynamic operation.
• Simple commissioning reduces setup time for OEM and panel builders.
• Supports energy-efficient motor operation under partial load conditions.
• Designed for consistent performance in standard industrial environments.
Technical FAQs
Q1: What type of motor is compatible with this drive?
It is designed for standard three-phase AC induction motors and supports common industrial motor types.
Q2: What control methods are supported?
It supports V/f control and sensorless vector control for torque and speed regulation.
Q3: Can it be used in continuous operation systems?
Yes. It is designed for continuous industrial duty applications.
Q4: Does it support external communication?
Yes. It supports industrial fieldbus options depending on configuration.
Q5: Is it suitable for pump and fan control?
Yes. It is commonly used in pump, fan, and HVAC applications.
Q6: What protection functions are included?
It includes motor overload protection, short-circuit protection, and thermal monitoring.
Q7: Can it handle load variations?
Yes. Sensorless vector control improves stability under changing load conditions.
Q8: Is programming required for basic operation?
Only minimal parameter setup is needed for standard applications.
Q9: Can it be installed in compact panels?
Yes. Its slim design is optimized for space-saving installation.
Q10: What is its typical usage role in industry?
It is mainly used for machine-level motor control in OEM and light industrial systems.
