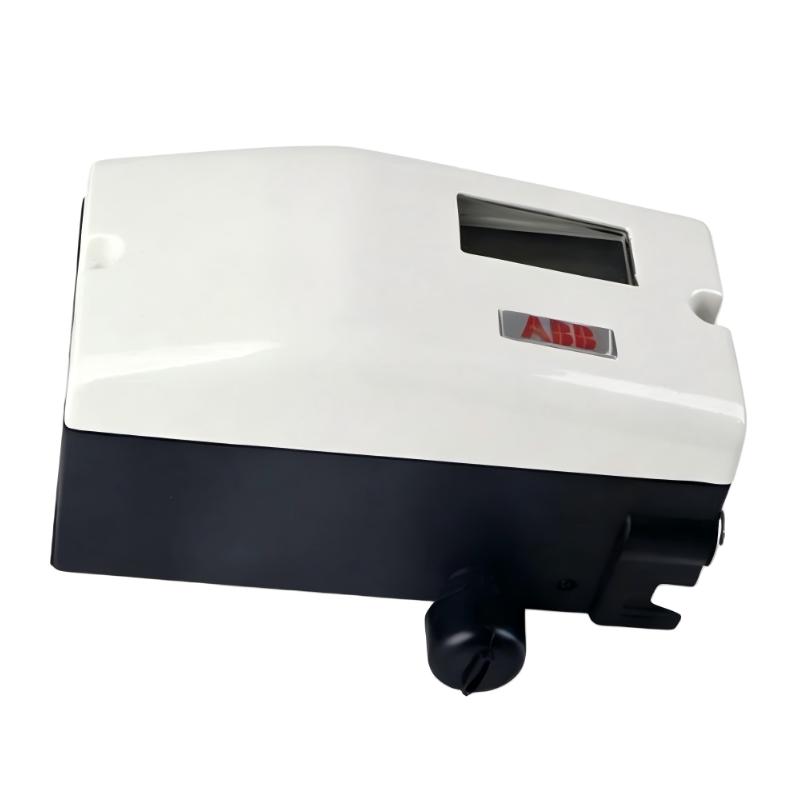

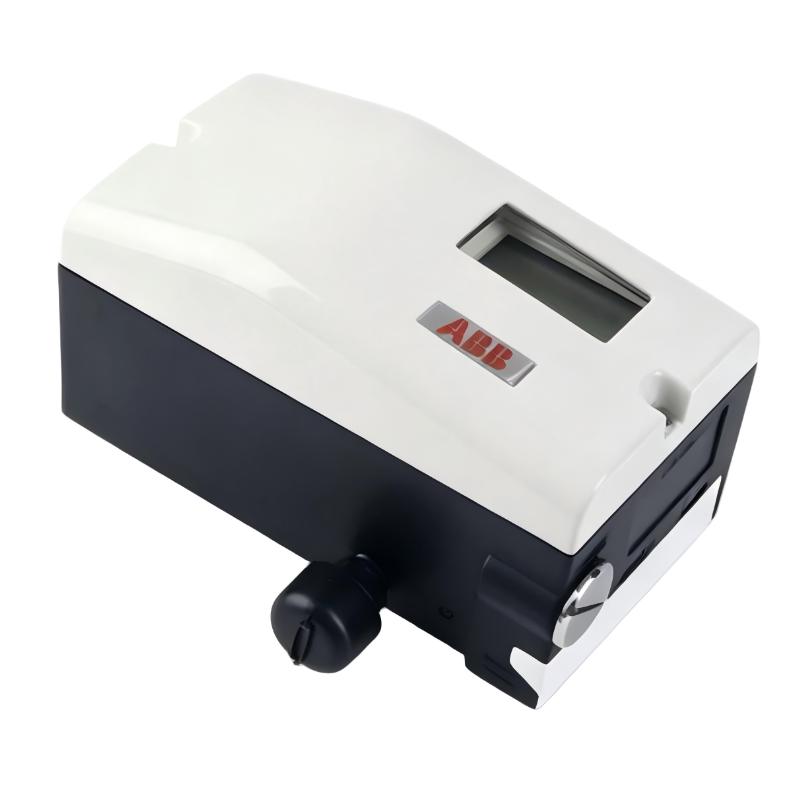

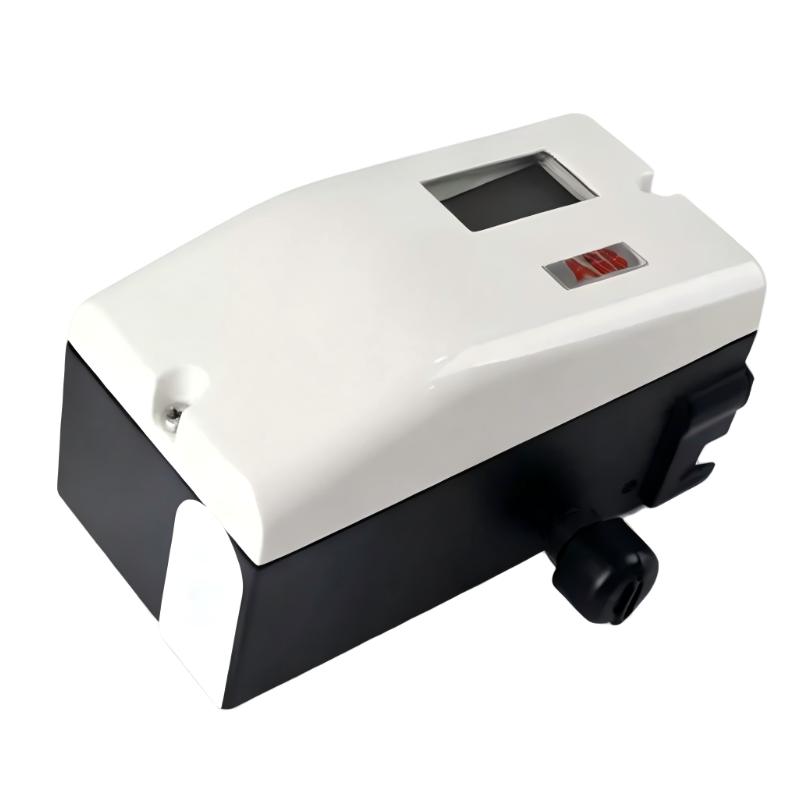

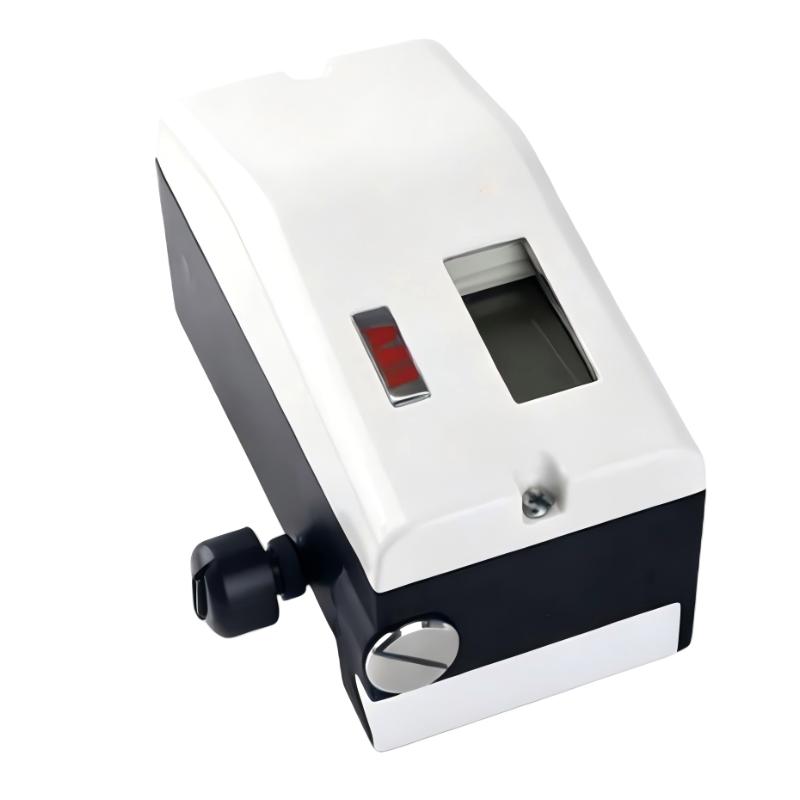

ABB V18345-1010420001 Valve Positioner

Applications

• Used in process control loops to regulate valve opening in oil & gas pipelines for stable flow and pressure control.

• Applied in chemical production systems where precise valve positioning is required for mixing and dosing operations.

• Installed in steam and condensate lines in power plants to maintain stable temperature and energy transfer conditions.

• Used in refinery process units to control flow distribution across separation, heating, and reaction systems.

• Integrated with pneumatic actuators to provide accurate modulation of control valves in continuous processes.

• Suitable for general industrial automation systems where repeatable and stable valve positioning is required.

Key Advantages

• Converts standard 4–20 mA control signals into precise pneumatic actuator movement.

• Stable positioning behavior improves loop control accuracy in continuous process environments.

• Direct mounting design reduces installation complexity and minimizes additional piping.

• Automatic commissioning functions reduce setup time during start-up or replacement.

• Reliable operation under vibration and temperature variation in industrial plants.

• Designed for long-term use in continuous duty control applications without frequent adjustment.

Technical FAQs

Q1: What is the main function of this valve positioner?
It controls the position of a pneumatic valve by converting an electrical control signal into a pneumatic output.

Q2: What type of signal does it use?
It typically operates with a 4–20 mA input signal.

Q3: What actuators can it work with?
It is compatible with linear and rotary pneumatic actuators.

Q4: Is it suitable for continuous process control?
Yes, it is designed for continuous industrial applications.

Q5: Does it support automatic calibration?
Yes, it can perform automatic setup during commissioning.

Q6: What industries commonly use it?
Oil & gas, chemical processing, power generation, and general process industries.

Q7: Can it be mounted directly on the valve?
Yes, it is designed for direct actuator mounting.

Q8: What happens during power or signal loss?
The valve moves to a predefined fail-safe position depending on system configuration.

Q9: Does it require frequent maintenance?
No, it is designed for stable long-term operation with minimal maintenance.

Q10: What is its role in a control loop?
It acts as the final control element interface between the controller and the pneumatic actuator.
