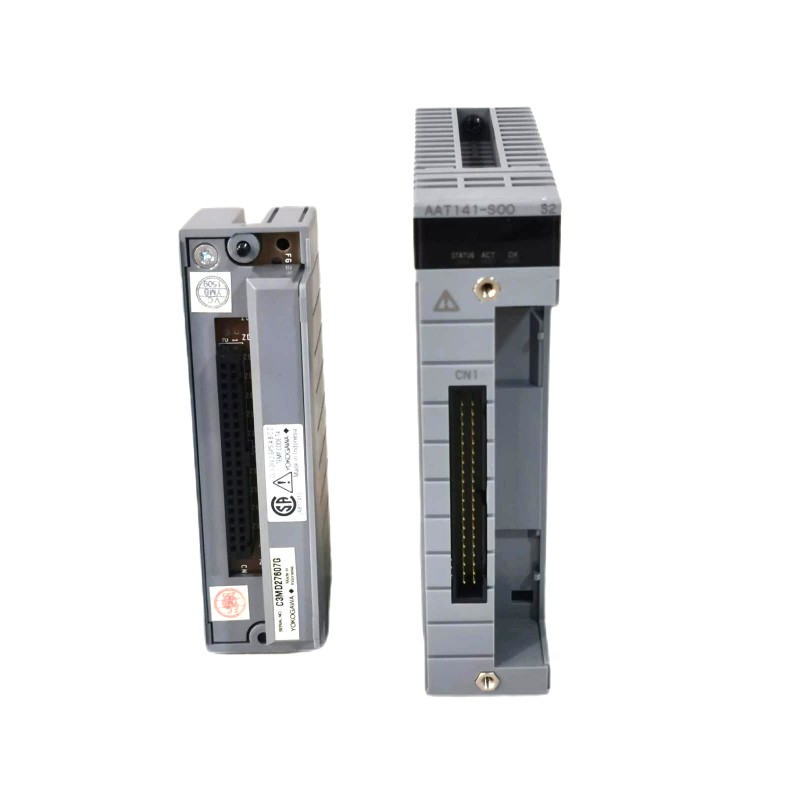

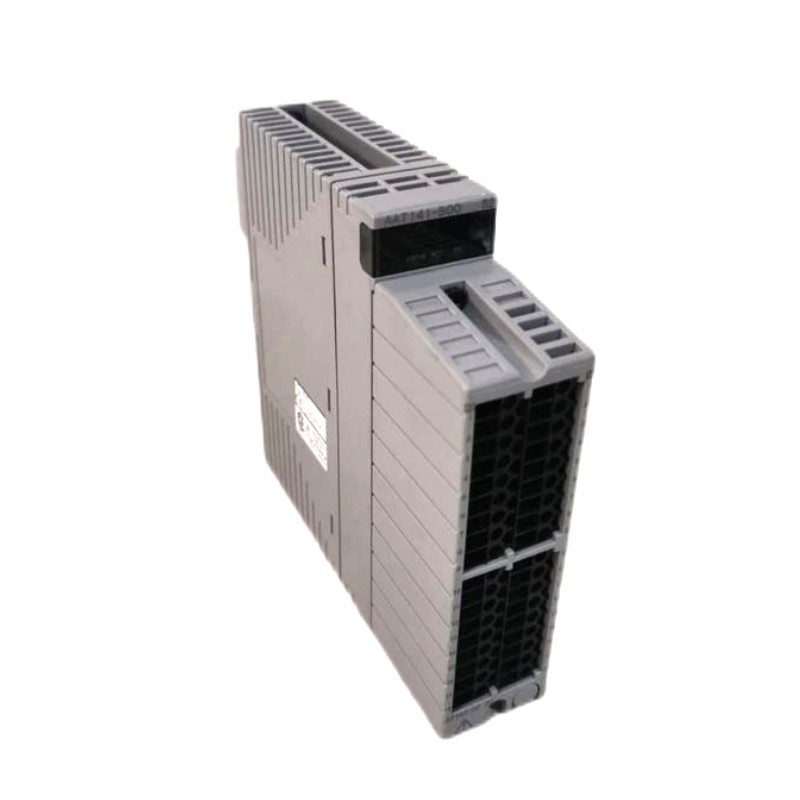

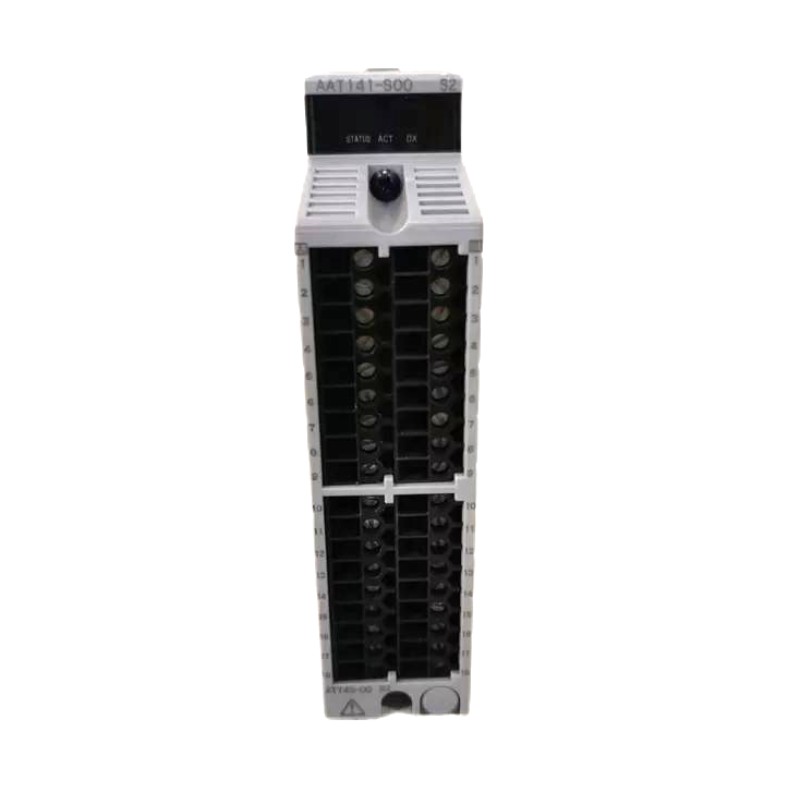

Yokogawa AAT141‑S00 Analog Transmitter / Signal Conditioning Module

Applications

• Process Control Loops – Converts sensor signals to standardized analog outputs for PID and regulatory control.

• Temperature and Pressure Monitoring – Interfaces with thermocouples and RTDs to deliver stable scaled signals.

• Industrial Automation Systems – Supplies clean conditioned signals for PLCs, DCS, and data acquisition systems.

• Energy & Utilities – Supports measurement and control in power generation, distribution, and utility automation.

Advantages

• Multi‑Sensor Flexibility – Accepts a range of sensor types (RTD, thermocouple, mV, voltage, and current), reducing the need for multiple modules.

• High Signal Precision – 16‑bit equivalent resolution and ±0.1% output accuracy deliver dependable measurement fidelity.

• Galvanic Isolation – Full isolation between inputs, outputs, and system logic enhances noise immunity and protects signal integrity.

• Compact, Flexible Mounting – Supports both DIN rail and panel mounting to suit diverse installation needs.

• Fast Response – Typical response times under 100 ms help support real‑time control and supervisory tasks.

• Rugged Industrial Design – Built to perform reliably across a wide temperature range and withstand industrial electrical stress.

Technical FAQs

1. What signal types can the AAT141‑S00 accept?
   It supports RTD, thermocouple, millivolt, voltage, and current inputs.

2. What output formats does this module provide?
   Standard industrial outputs such as 4–20 mA or 0–10 V DC.

3. Is there electrical isolation in the AAT141‑S00?
   Yes — galvanic isolation separates I/O and system logic for clean signal transmission.

4. What is the typical output accuracy?
   Output accuracy is ±0.1% of full scale.

5. How fast does it respond to input changes?
   Typical response time is 100 ms or better.

6. Can this module handle multiple sensor types without hardware changes?
   Yes — input configuration is sensor‑dependent and can be programmed accordingly.

7. What environments is the AAT141‑S00 suitable for?
   It operates reliably in industrial environments from −20 °C to +60 °C.

8. How is the module mounted?
   It supports both DIN rail and panel mounting for installation flexibility.

9. What industries commonly use this module?
   Process plants, manufacturing automation, energy management, and utility control systems.

10. Why choose the AAT141‑S00 over a simple analog module?
    Because it conditions a wide range of sensor types into stable, isolated analog outputs with high precision, reducing the need for additional interface hardware and improving system clarity.
