Introduction

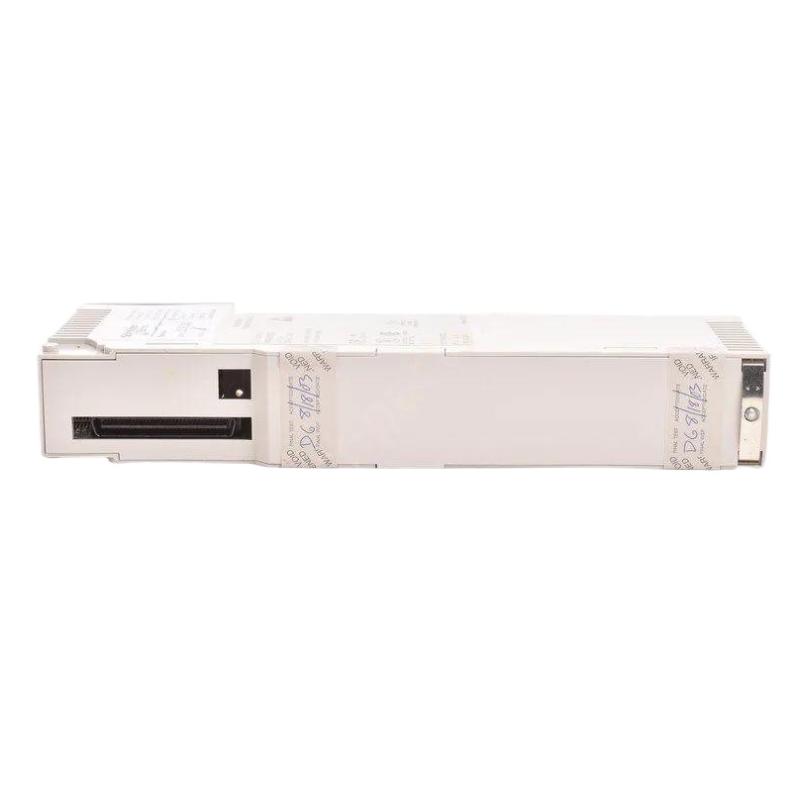

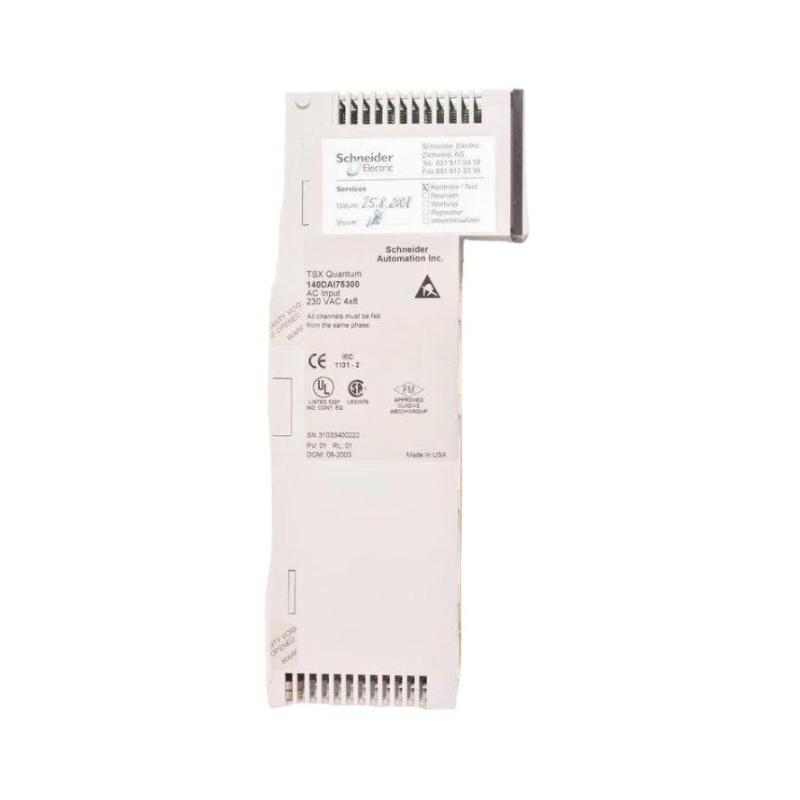

The Schneider 140DAI75300 Discrete Input Module is a reliable and high-precision solution for industrial digital input acquisition. Designed for Modicon PLC systems, it efficiently captures and processes signals from switches, sensors, and relays, providing operators with accurate and real-time system monitoring. Its robust construction and modular design make it ideal for industrial environments that demand high reliability and ease of maintenance.

Technical Specifications

Specification	Details
Module Type	Discrete Input Module
Number of Channels	16 Discrete Inputs
Input Voltage	24V DC nominal
Redundancy	Supports integration in redundant PLCs
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	0.3 kg
Dimensions	103.9 × 40.3 × 250 mm
Connectivity	Screw terminal blocks
Certifications	CE Compliant

Recommended Related Models

Schneider 140CPU43400 PLC Processor
140DDO35300C Discrete Output Module
140AVI03000C Analog Input Module

Popular Related Models

Schneider 140DAI75100 Discrete Input Module
140DDO35300C Discrete Output Module
140ACI04000C Analog Input Module

Applications

The Schneider 140DAI75300 Discrete Input Module is designed to efficiently capture and process digital signals in industrial automation systems. Typical applications include:

Factory automation with extensive discrete input requirements
Monitoring switches, sensors, and relays in chemical, petrochemical, and manufacturing plants
Integration into Modicon PLC networks for reliable digital signal acquisition
Redundant control systems requiring secure and precise input detection
Industrial installations demanding scalable and reliable discrete input modules

This module ensures accurate, real-time detection of input signals for reliable system control and monitoring.

Advantages

High Reliability: Maintains secure digital connections even under harsh industrial conditions.
Modular Design: Easily integrates into Modicon PLC racks for flexible I/O expansion.
Diagnostic Feedback: Status LEDs provide immediate insight into channel activity and faults.
Industrial Durability: Resistant to vibration, electrical noise, and temperature fluctuations.
Simplified Maintenance: Clear labeling and robust design enable quick inspection and replacement.

Technical FAQs

What is the primary function of the 140DAI75300?
- Captures and processes discrete digital signals from field devices.
How many input channels does it provide?
- Supports 16 discrete input channels.
What is the supported input voltage?
- Standard 24V DC industrial signals.
Is it compatible with redundant systems?
- Yes, can be integrated into redundant Modicon PLC setups.
Does it provide diagnostic feedback?
- Yes, onboard LEDs indicate input status and faults.
What is the operating temperature range?
- -20°C to 60°C (-4°F to 140°F).
Can it operate in high-vibration environments?
- Yes, engineered to resist vibration and electrical interference.
Is hot-swapping supported?
- Yes, in redundant configurations, modules can be replaced without system downtime.
What type of connectivity does it use?
- Screw terminal blocks for secure wiring.
What maintenance is required?
- Minimal; periodic inspection of terminal connections and LED indicators is recommended.
