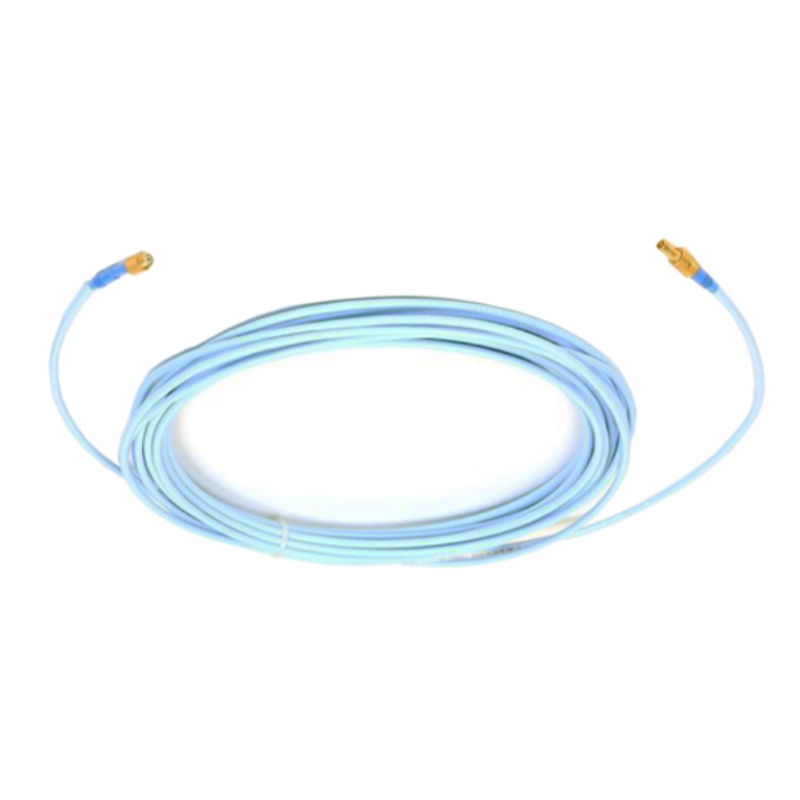

Bently Nevada 330190-080-00-05 3300 XL Extended Temperature Range Extension Cable
Bently Nevada 330190-080-00-05 3300 XL Extended Temperature Range Extension Cable
0.0
Points
Brand:Bently Nevada PLC Item No.:Bently Nevada 330190-080-00-05 Product Origin:USA Product Dimensions:8000 × 8 × 8 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

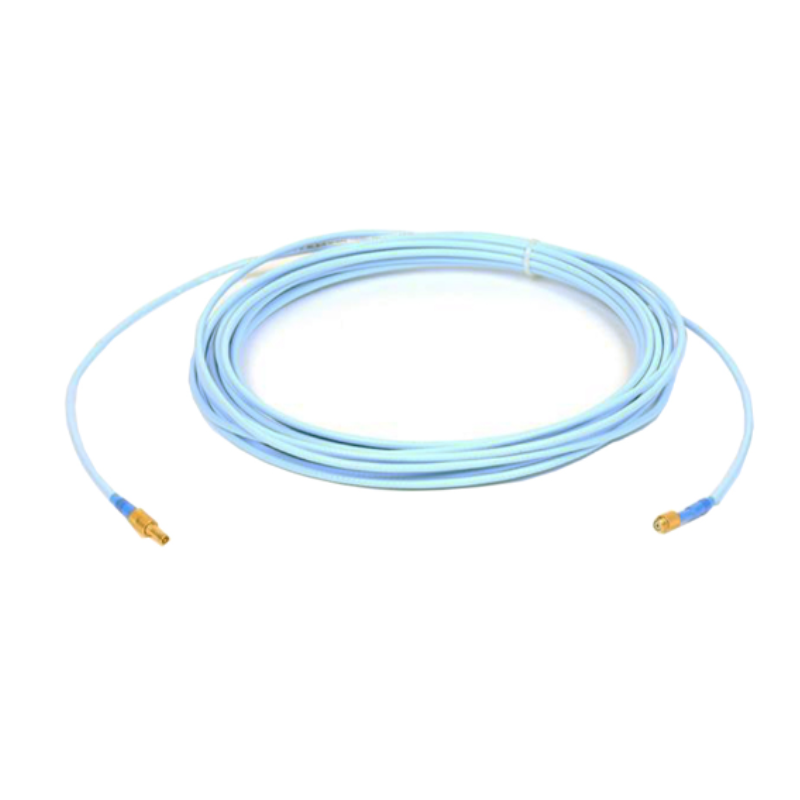

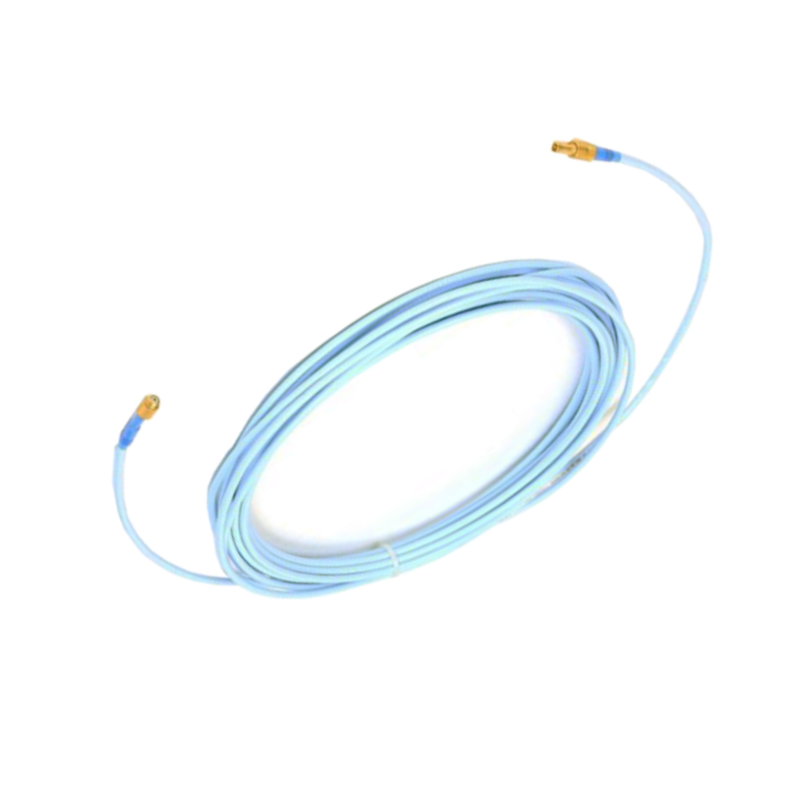

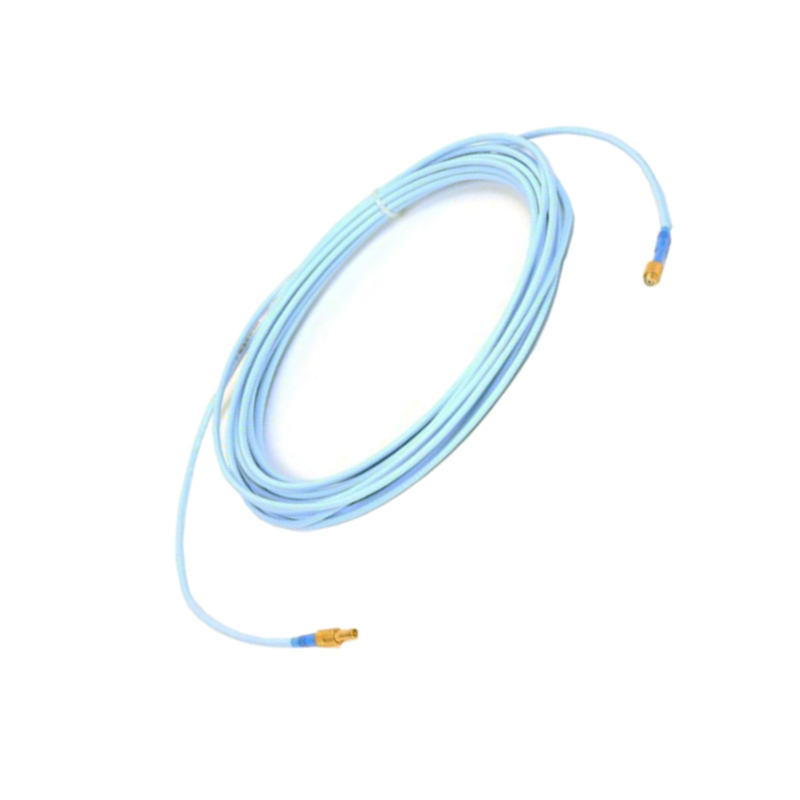

The Bently Nevada 330190-080-00-05 is a 3300 XL Extended Temperature Range (ETR) extension cable designed for use with Bently Nevada 3300 XL 8 mm proximity transducer systems. It provides a calibrated electrical connection between a compatible proximity probe and a Proximitor® sensor, ensuring accurate signal transmission for vibration, shaft position, and speed monitoring.
This model features an 8.0-meter standard triaxial cable with multiple agency approvals, making it suitable for installations that require certified components for industrial or hazardous environments. Its rugged construction and high-temperature capability make it an excellent choice for long-term machinery protection applications.
Technical Specifications
Item
Description
Manufacturer
Bently Nevada (Baker Hughes)
Model
330190-080-00-05
Product Type
Extended Temperature Range (ETR) Extension Cable
Series
3300 XL 8 mm Proximity Transducer System
Cable Length
8.0 m (26.2 ft)
Cable Option
00 – Standard cable
Agency Approval
05 – Multiple agency approvals
Cable Construction
75 Ω shielded triaxial cable with FEP insulation
Operating Temperature
-52°C to +177°C
Typical Capacitance
69.9 pF/m
Function
Connection between proximity probe and Proximitor® sensor
System Compatibility
Bently Nevada 3300 XL 8 mm monitoring systems
Mechanical Dimensions & Weight
Parameter
Value
Dimensions (L × W × H)
8000 × 8 × 8 mm
Weight
Approx. 0.29 kg
Recommended Related Models
The 330190-080-00-05 is commonly paired with:
Bently Nevada 3300 XL 8 mm Proximity Probe
Bently Nevada 3300 XL Proximitor® Sensor
Bently Nevada 3500/40M Proximitor Monitor
Bently Nevada 3500 Machinery Protection System
Bently Nevada 330130 Series Extension Cables
Popular Bently Nevada Models
Commonly selected products for rotating equipment monitoring include:
3300 XL 8 mm Proximity Probe
3300 XL Proximitor® Sensor
330130 Standard Extension Cable
3500/22M Transient Data Interface
3500/42M Proximitor/Seismic Monitor
3500/15 Power Supply Module
Applications
The 330190-080-00-05 is widely used in machinery condition monitoring systems for:
Steam turbines
Gas turbines
Compressors
Centrifugal pumps
Electric motors
Generators
Oil and gas facilities
Petrochemical plants
Power generation stations
Heavy industrial rotating equipment
Advantages
Designed for 3300 XL Extended Temperature Range systems
Factory-calibrated compatibility with 3300 XL transducer components
Standard triaxial construction ensures stable signal transmission
FEP insulation offers excellent heat and chemical resistance
Multiple agency approvals for certified installations
Reliable performance in demanding industrial environments
Excellent resistance to electrical interference
Easy integration into existing Bently Nevada systems
Ideal for long-term machinery protection and condition monitoring
Technical FAQs
1. What is the function of the 330190-080-00-05?
It connects a compatible 3300 XL proximity probe to a Proximitor® sensor while maintaining the calibrated performance of the transducer system.
2. What is the cable length?
The cable length is 8.0 meters (26.2 feet).
3. Is this an armored cable?
No. The 00 option indicates the standard cable construction.
4. What does the 05 suffix indicate?
It designates the multiple agency approvals option for installations requiring certified components.
5. Which systems is it compatible with?
It is designed for Bently Nevada 3300 XL 8 mm proximity transducer systems.
6. What are the dimensions?
The cable dimensions are approximately 8000 × 8 × 8 mm (L × W × H).
7. What is the weight?
The cable weighs approximately 0.29 kg.
8. What type of cable is used?
It features a 75 Ω shielded triaxial cable with FEP insulation, providing dependable signal transmission in industrial environments.
9. Where is this cable commonly installed?
It is commonly used in turbine, compressor, pump, motor, and generator monitoring systems where accurate vibration and position measurements are required.
10. Why choose the 330190-080-00-05?
It combines certified approvals, stable signal performance, durable construction, and full compatibility with Bently Nevada 3300 XL systems, making it a dependable solution for critical machinery condition monitoring.
