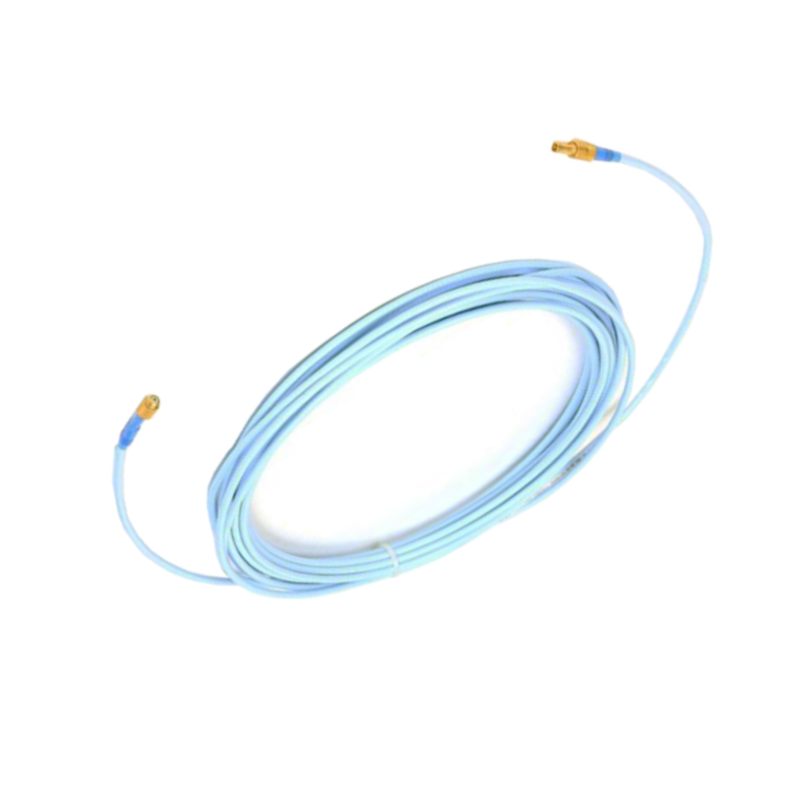

Bently Nevada 330190-085-00-CN 3300 XL Extended Temperature Range Extension Cable
Bently Nevada 330190-085-00-CN 3300 XL Extended Temperature Range Extension Cable
0.0
Points
Brand:Bently Nevada PLC Item No.:Bently Nevada 330190-085-00-CN Product Origin:USA Product Dimensions:8500 × 8 × 8 mm Product Weight:0.289 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330190-085-00-CN is a 3300 XL Extended Temperature Range (ETR) extension cable designed for use with the 3300 XL 8 mm Proximity Transducer System. It provides a calibrated connection between a compatible proximity probe and a Proximitor® sensor, ensuring accurate signal transmission for vibration, shaft position, and speed monitoring in critical rotating equipment.
Featuring an 8.5-meter standard extension cable with the CN country-specific approval option, this model is suitable for industrial installations requiring dependable performance and compliance with regional certification requirements. Its durable construction and excellent electrical characteristics make it ideal for long-term operation in demanding environments.
Technical Specifications
Item
Description
Manufacturer
Bently Nevada (Baker Hughes)
Model
330190-085-00-CN
Product Type
Extended Temperature Range (ETR) Extension Cable
Series
3300 XL 8 mm Proximity Transducer System
Cable Length
8.5 m (27.9 ft)
Cable Option
00 – Standard cable
Agency Approval
CN – Country-specific approvals
Cable Construction
75 Ω shielded triaxial cable with FEP insulation
Function
Connects proximity probe to Proximitor® sensor
System Compatibility
Bently Nevada 3300 XL 8 mm systems
Typical Capacitance
69.9 pF/m (21.3 pF/ft)
Mechanical Dimensions & Weight
Parameter
Value
Dimensions (L × W × H)
8500 × 8 × 8 mm
Weight
0.289 kg
Recommended Related Models
The 330190-085-00-CN is commonly used with:
Bently Nevada 3300 XL 8 mm Proximity Probe
Bently Nevada 3300 XL Proximitor® Sensor
Bently Nevada 3500/40M Proximitor Monitor
Bently Nevada 3500 Machinery Protection System
Bently Nevada 330130 Series Extension Cables
Popular Bently Nevada Models
Common products within the 3300 XL monitoring family include:
3300 XL 8 mm Proximity Probe
3300 XL Proximitor® Sensor
330130 Extension Cable
3500/22M Transient Data Interface
3500/42M Proximitor/Seismic Monitor
3500/15 Power Supply Module
Typical Applications
The 330190-085-00-CN is widely used in industrial machinery monitoring systems, including:
Steam turbines
Gas turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Oil and gas production facilities
Petrochemical plants
Power generation stations
Heavy rotating machinery
Key Advantages
Designed for the 3300 XL Extended Temperature Range transducer system
Maintains calibrated system accuracy and signal integrity
Reliable performance in harsh industrial environments
Compatible with Bently Nevada machinery protection systems
Durable construction for long service life
Ideal for critical condition monitoring applications
Technical FAQs
1. What is the primary function of the 330190-085-00-CN?
It connects a compatible 3300 XL proximity probe to a Proximitor® sensor while maintaining the calibrated electrical characteristics of the monitoring system.
2. What is the cable length?
The cable length is 8.5 meters (27.9 feet).
3. Is this an armored cable?
No. The 00 option indicates the standard (non-armored) cable configuration.
4. What does the CN suffix indicate?
The CN option specifies a country-specific approval configuration for applicable installations.
5. Which systems is it compatible with?
It is designed for Bently Nevada 3300 XL 8 mm Proximity Transducer Systems.
6. What are the dimensions?
The cable dimensions are approximately 8500 × 8 × 8 mm (L × W × H).
7. What is the weight?
The cable weighs approximately 0.289 kg.
8. What type of cable construction does it use?
It features a 75 Ω shielded triaxial cable with FEP insulation for stable and reliable signal transmission.
9. Where is this cable commonly installed?
It is widely installed in vibration and shaft position monitoring systems for turbines, compressors, pumps, motors, and other rotating equipment.
10. Why choose the 330190-085-00-CN?
It combines accurate signal transmission, robust construction, regional approval compatibility, and seamless integration with Bently Nevada 3300 XL monitoring systems, making it an excellent choice for critical machinery protection.
