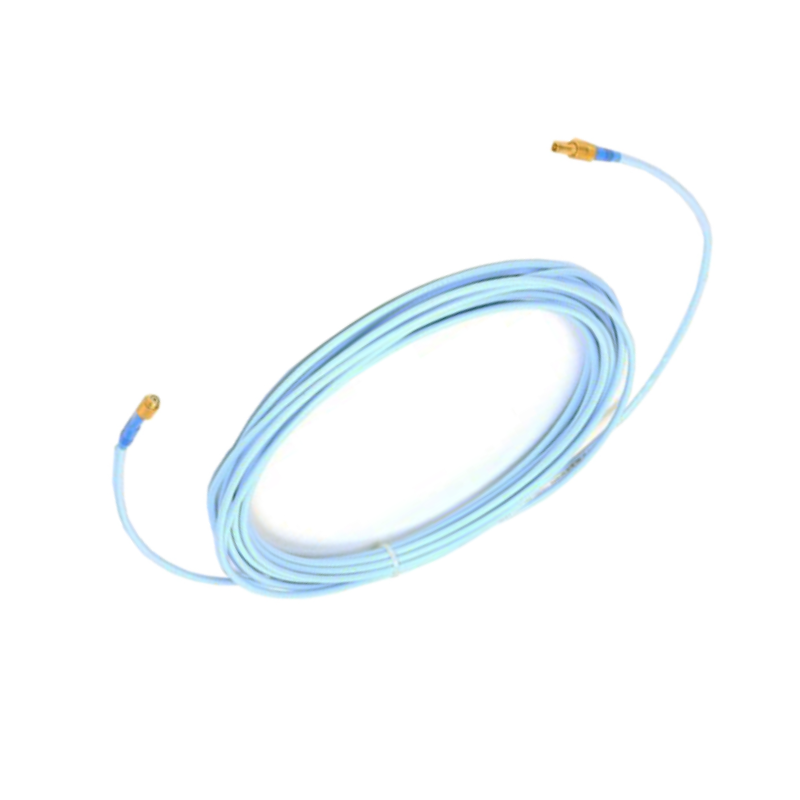

The Bently Nevada 330191-00-33-90-05 is a 3300 XL 8 mm Extended Temperature Range (ETR) proximity probe designed for precision measurement of shaft vibration and position in rotating machinery. It is part of the Bently Nevada 3300 XL transducer system and is engineered to deliver stable, non-contact measurement performance in harsh industrial environments.

This model is configured with a 9.0-meter integral cable (90 option) and multiple agency approvals (05 option), making it suitable for installations requiring extended reach and certified compliance. It is widely used in turbines, compressors, pumps, and generators where continuous condition monitoring is critical for equipment protection and predictive maintenance.

The probe uses eddy-current sensing technology to measure the distance between the probe tip and a conductive target surface, enabling both static (position) and dynamic (vibration) measurements with high accuracy.

Technical Specifications

Item	Description
Manufacturer	Bently Nevada (Baker Hughes)
Model	330191-00-33-90-05
Product Type	3300 XL 8 mm ETR Proximity Probe
System Series	3300 XL Proximity Transducer System
Measurement Principle	Eddy current displacement sensing
Thread Size	3/8-24 UNF
Case Length Option	33 (standard probe body configuration)
Unthreaded Length Option	00
Cable Length Option	90 = 9.0 m (integral cable)
Agency Approval	05 = CSA / ATEX / IECEx approvals
Cable Type	Integral high-temperature shielded cable
Output Type	Analog displacement signal
Application	Vibration, shaft position, and speed monitoring

Mechanical Dimensions & Weight

Parameter	Value
Dimensions (L × W × H)	9000 × 8 × 8 mm (integral cable assembly)
Weight	Approx. 0.33 – 0.80 kg (configuration dependent)

Recommended Related Models

The 330191-00-33-90-05 is commonly used with:

Bently Nevada 3300 XL Proximitor Sensor
330190 Series Extension Cables
3300 XL mounting accessories and probe holders
Bently Nevada 3500/40M vibration monitoring module
3500 Machinery Protection System racks

Popular Bently Nevada Models

Frequently used products in the same monitoring ecosystem include:

3300 XL 8 mm Proximity Probe series
3300 XL Proximitor Sensor
330190 Extension Cable series
3500/42M Vibration Monitor
3500/15 Power Supply Module
3500/22M Transient Data Interface

Applications

This proximity probe is widely used in industrial condition monitoring systems for:

Steam turbines
Gas turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Oil and gas production facilities
Petrochemical plants
Power generation stations
Heavy rotating machinery

Advantages

High-precision non-contact vibration and position measurement
Designed for harsh and high-temperature industrial environments
Long 9.0 m integral cable reduces need for intermediate connections
Compatible with Bently Nevada 3300 XL monitoring architecture
Supports both static and dynamic measurement signals
Stable long-term performance for critical machinery protection
Robust construction for industrial vibration environments
Suitable for continuous condition monitoring systems
Certified configuration (CSA / ATEX / IECEx options)
Proven reliability in turbine and compressor applications

Technical FAQs

1. What is the function of the 330191-00-33-90-05?

It is a proximity probe used to measure shaft vibration and position without physical contact using eddy current technology.

2. What system is it compatible with?

It is designed for the Bently Nevada 3300 XL 8 mm proximity transducer system.

3. What does the “90” option mean?

It indicates a 9.0-meter integral cable length.

4. What does the “05” option indicate?

It represents hazardous area and agency approvals (CSA, ATEX, IECEx).

5. What measurement type does it use?

It uses eddy current displacement sensing for vibration and position monitoring.

6. What are the dimensions?

The assembly is approximately 9000 × 8 × 8 mm depending on configuration.

7. What is the weight?

Approximately 0.33–0.80 kg, depending on final configuration.

8. Where is it commonly used?

It is used in turbines, compressors, pumps, motors, and generators.

9. Does it require a Proximitor sensor?

Yes, it must be used with a compatible Bently Nevada Proximitor sensor.

10. Why is this probe widely used?

Because it provides reliable, high-accuracy vibration and position monitoring in mission-critical rotating machinery systems with long-distance installation flexibility.
