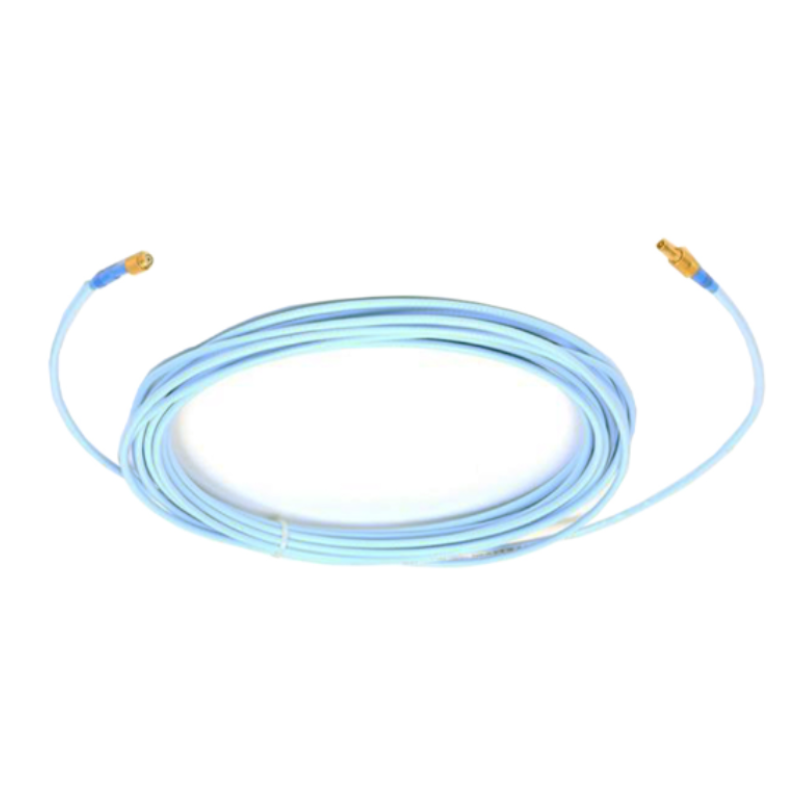

The Bently Nevada 330191-02-10-10-CN is a 3300 XL 8 mm Extended Temperature Range (ETR) proximity probe designed for high-accuracy, non-contact measurement of shaft vibration and position in rotating machinery. It is widely integrated into Bently Nevada monitoring architectures to support continuous condition monitoring and predictive maintenance strategies in industrial environments.
This configuration includes a compact probe body (02 option), standard mounting geometry (10/10 configuration parameters), and CN country-specific approval certification, making it suitable for installations requiring both reliable measurement performance and compliance with regional standards. It is commonly used in turbines, compressors, pumps, and generators operating under demanding conditions.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330191-02-10-10-CN |
| Product Type | 3300 XL 8 mm ETR Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Case Length Option | 02 – compact probe body configuration |
| Unthreaded Length | 10 – system-defined configuration |
| Total Length Option | 10 – standard 1.0 m class assembly configuration |
| Agency Approval | CN – country-specific certification option |
| Cable Type | Integrated shielded triaxial probe cable |
| Application | Vibration, shaft position, radial displacement monitoring |
Mechanical Dimensions & Weight
| Parameter | Value |
| Dimensions (L × W × H) | 1000 × 8 × 8 mm (assembly reference) |
| Weight | Approx. 0.30 kg |
Recommended Related Models
The 330191-02-10-10-CN is commonly paired with:
- Bently Nevada 3300 XL Proximitor® Sensor

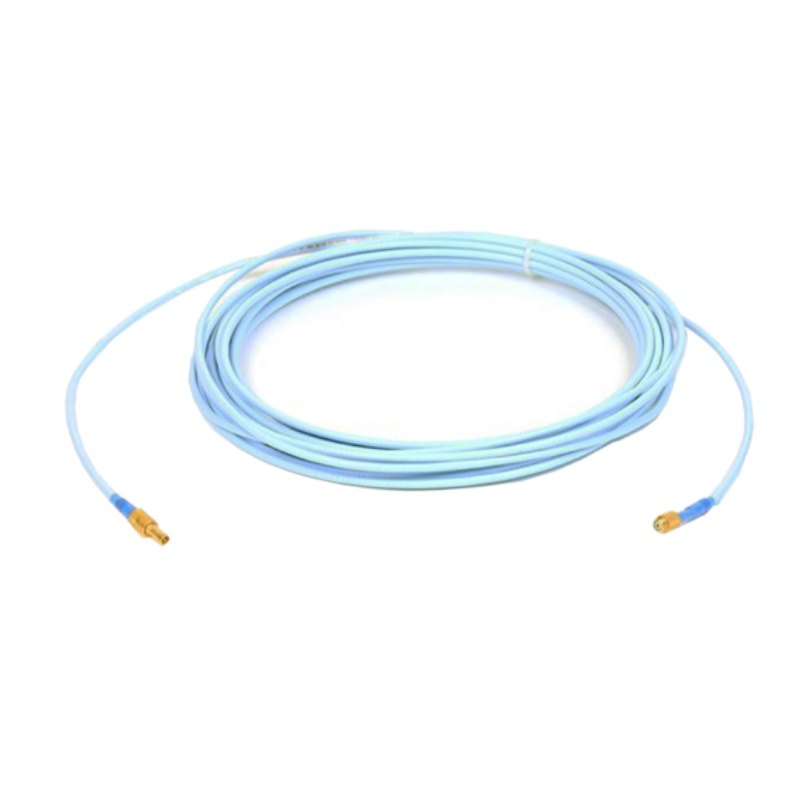

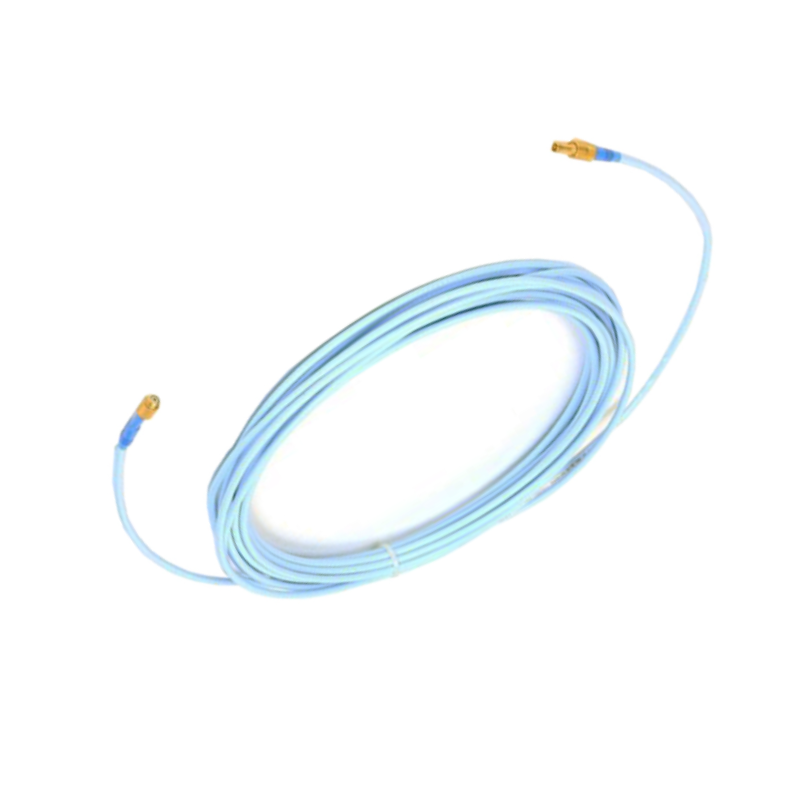

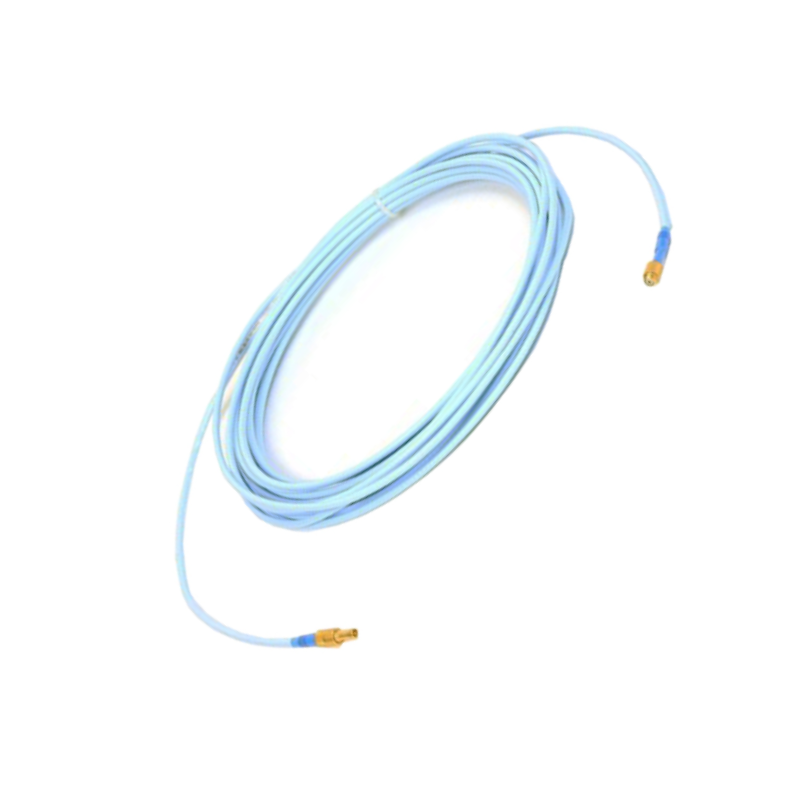

- 330190 Series Extension Cables
- Bently Nevada 3500/40M Vibration Monitor Module
- Bently Nevada 3500 Machinery Protection System
- Standard 3300 XL probe mounting hardware
