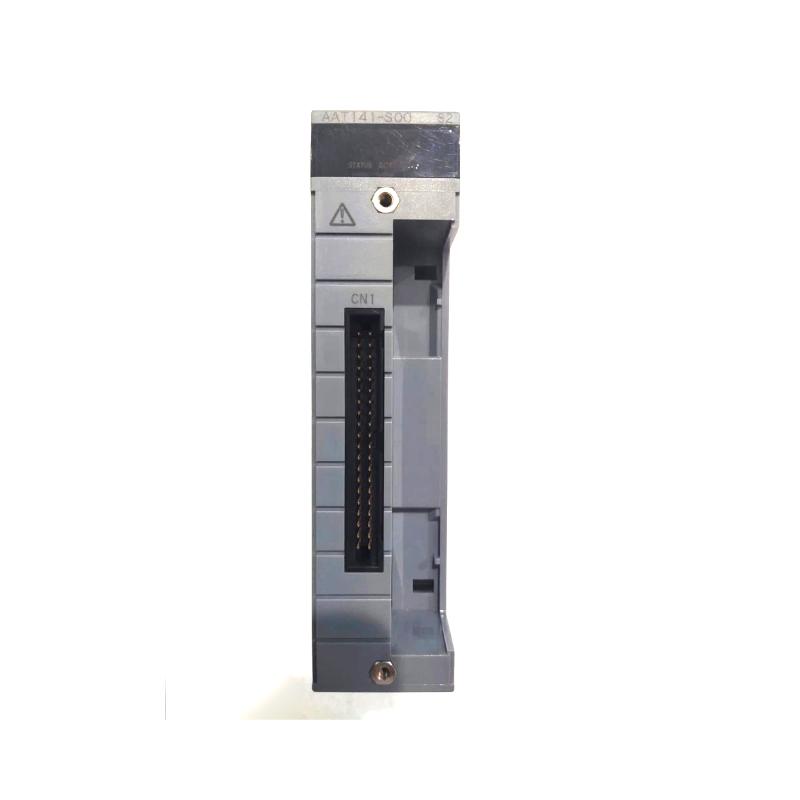

Yokogawa AAT141‑S50 Advanced Analog Transmitter & Signal Conditioning Module

Applications

• Process Control Loops – Converts field sensor readings to precise analog signals for use in regulatory loops.

• Temperature & Pressure Monitoring – Interfaces with RTDs and thermocouples for consistent thermal and pressure measurement.

• Industrial Automation Systems – Conditions raw sensor data for PLCs, DCS, and SCADA systems in continuous processes.

• Energy & Utility Management – Supports accurate analog data acquisition across turbines, boilers, and load control systems.

Advantages

• Broad Sensor Compatibility – Handles multiple input types, eliminating the need for separate hardware for each sensor class.

• High Signal Integrity – Galvanic isolation and conditioning ensure measured data remain accurate and noise‑free.

• Precision & Stability – Nearly 16‑bit resolution and ±0.1% output accuracy deliver dependable signal conditioning over time.

• Fast Filtering & Response – Typical response times under 100 ms help maintain tight control loop performance.

• Flexible Mounting – Supports DIN rail or panel mount installations for versatile control cabinet design.

• Industrial‑Ready Design – Built to withstand typical factory temperatures and electrical noise without performance degradation.

Technical FAQs

1. What sensor types can the AAT141‑S50 accept?
   It supports RTDs, thermocouples, millivolt sources, voltage, and current inputs.

2. What output signal formats are supported?
   Standard outputs include 4–20 mA and 0–10 V DC.

3. Does the module offer galvanic isolation?
   Yes — isolation is provided between I/O and system logic to enhance signal integrity.

4. What is the output accuracy of the module?
   The AAT141‑S50 delivers ±0.1% of full‑scale accuracy.

5. What is its typical response time?
   Response time is typically ≤100 ms, supporting real‑time control processes.

6. Can it be mounted in various ways?
   Yes — the module supports both DIN rail and panel mounting for flexible installation.

7. What temperature range does it operate within?
   It operates reliably from −20 °C to +60 °C.

8. Is the module suitable for noisy industrial environments?
   Yes — galvanic isolation and robust design ensure accurate data even in electrically noisy settings.

9. Which industries commonly use this module?
   It is widely used in manufacturing, energy, utilities, chemical processes, and environmental monitoring.

10. Why choose the AAT141‑S50 over a basic analog conditioning module?
    Because it supports a wide array of sensor types with stable, isolated, and high‐precision outputs, reducing hardware complexity and improving measurement reliability across control systems.
