Brand:Schneider PLC Item No.:ATS22C17Q Product Origin:France Product Dimensions:356 x 150 x 229.5 mm Product Weight:18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

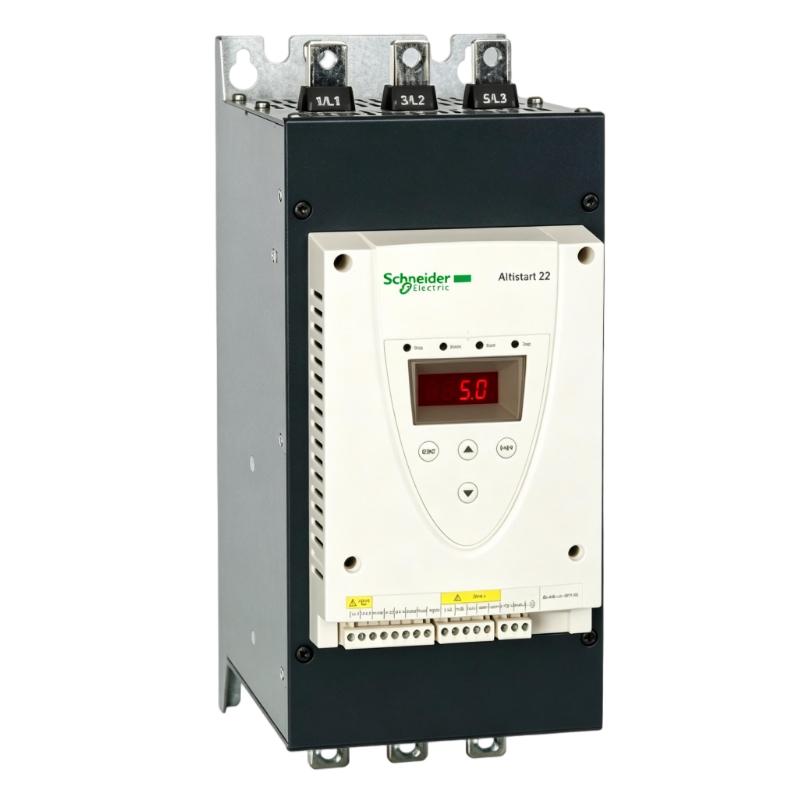

The Schneider ATS22C17Q is a soft starter designed for controlled acceleration of three-phase motors in industrial applications. It helps reduce starting current and mechanical stress by gradually increasing voltage during motor startup.
In practical use, it is commonly applied in pumps, fans, compressors, and conveyor systems where direct-on-line starting would cause high electrical impact or mechanical wear. The unit includes integrated bypass functionality and protection features, making it suitable for continuous industrial operation where stable motor startup behavior is required.
Technical Specifications
Item
Specification
Product Model
ATS22C17Q
Product Type
Soft Starter
Brand
Schneider Electric
Rated Current
170 A
Motor Power Range
45–90 kW (depending on voltage)
Supply Voltage
230–440 V AC, 3-phase
Control Voltage
230 V AC
Protection Class
IP00
Cooling Method
Forced convection
Mounting Type
Panel mounted
Dimensions
356 × 150 × 229.5 mm
Weight
18 kg
Recommended Related Models
Model
Product Name
ATS22C11Q
Schneider Altistart 22 Soft Starter
ATS22C21Q
Schneider Altistart 22 Higher Current Version
ATS480D22Y
Schneider Altivar Soft Starter Series
ATS01N222QN
Schneider Basic Soft Starter
Popular Related Models
Model
Product Name
ATS22D17Q
Schneider Altistart 22 Variant
ATS48C25Q
Schneider Altistart 48 Heavy Duty Starter
ATS22C32Q
Schneider Altistart 22 Higher Power Model
ATS01N212QN
Schneider Compact Soft Starter
Applications
• Used on medium to heavy industrial motors to ensure controlled starting of pumps in water supply and process systems.
• Applied in HVAC systems to reduce mechanical stress during fan and blower startup.
• Installed in compressor systems where smooth acceleration helps protect mechanical components and pipelines.
• Used in conveyor systems to reduce shock loads during start and stop cycles.
• Applied in industrial processing equipment where gradual motor ramp-up improves system stability.
• Suitable for general plant machinery where limiting inrush current is required for electrical network stability.
Key Advantages
• Reduces starting current to avoid sudden electrical and mechanical stress on equipment.
• Integrated bypass function helps improve efficiency after motor reaches operating speed.
• Stable ramp control improves smooth acceleration of motors under load.
• Built-in motor and starter protection helps support safe operation in industrial environments.
• Designed for reliable operation in demanding continuous-use applications.
• Supports simplified installation with clear wiring and straightforward commissioning.
Technical FAQs
Q1: What is the main function of this soft starter?
It controls motor startup by gradually increasing voltage to reduce inrush current.
Q2: What type of motors is it used with?
It is used with standard three-phase asynchronous motors.
Q3: Can it be used in pump systems?
Yes, it is commonly used in pump applications.
Q4: Does it support bypass operation?
Yes, it includes an integrated bypass after startup.
Q5: What happens after the motor reaches full speed?
The system transitions to bypass mode for normal running efficiency.
Q6: Is it suitable for continuous industrial duty?
Yes, it is designed for heavy-duty industrial operation.
Q7: Can it help reduce mechanical wear?
Yes, soft starting reduces mechanical shock during motor acceleration.
Q8: Does it require complex setup?
No, configuration is straightforward for standard applications.
Q9: What industries commonly use it?
Water treatment, HVAC, mining, manufacturing, and process industries.
Q10: What is its main role in a system?
It provides controlled motor starting to protect electrical and mechanical components.
