Brand:Schneider PLC Item No.:ATS22C17S6U Product Origin:France Product Dimensions:356 x 150 x 229.5 mm Product Weight:18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

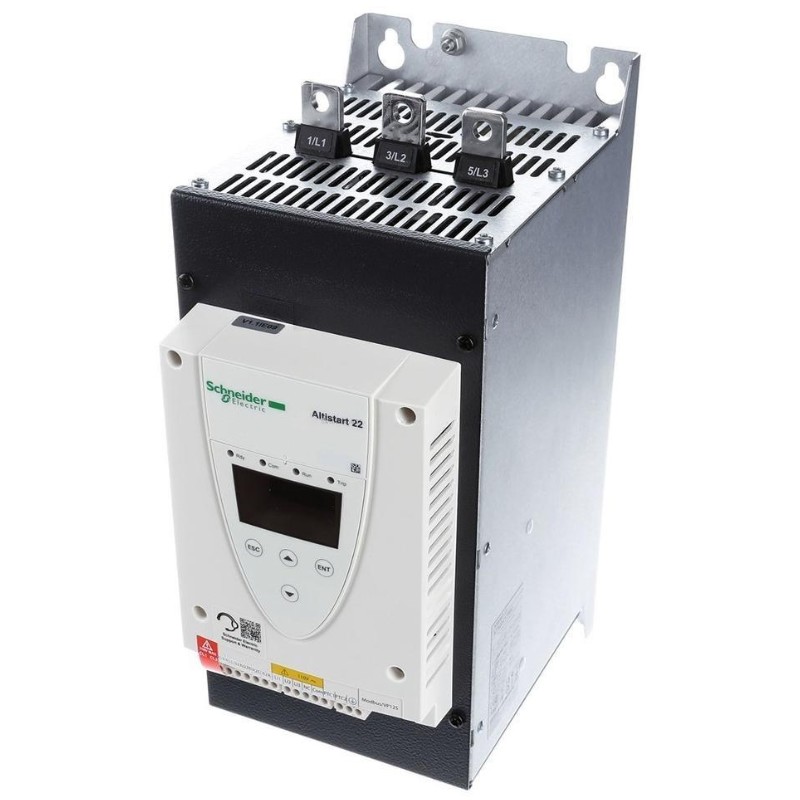

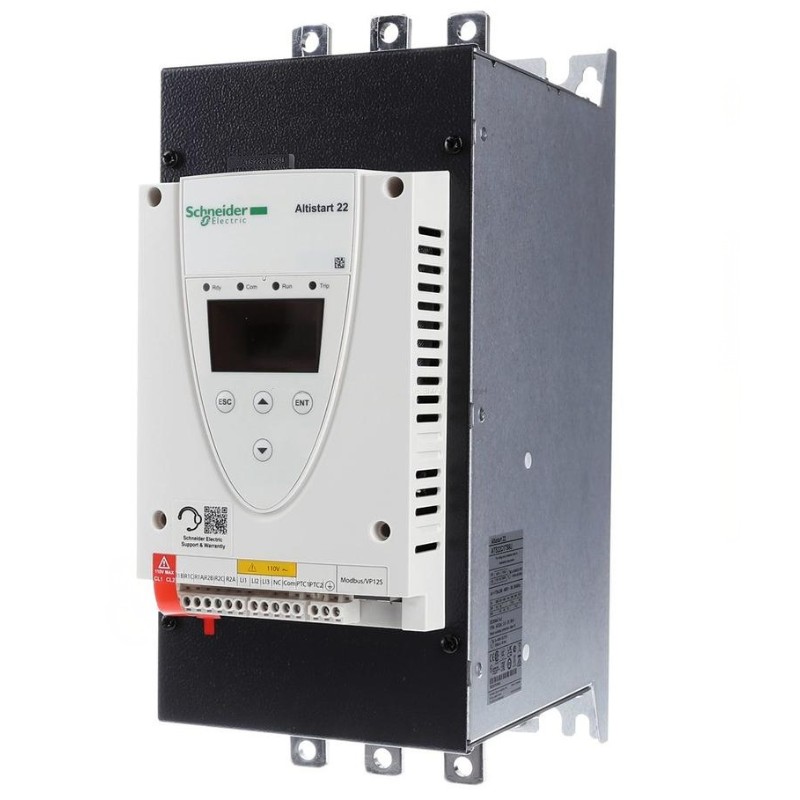

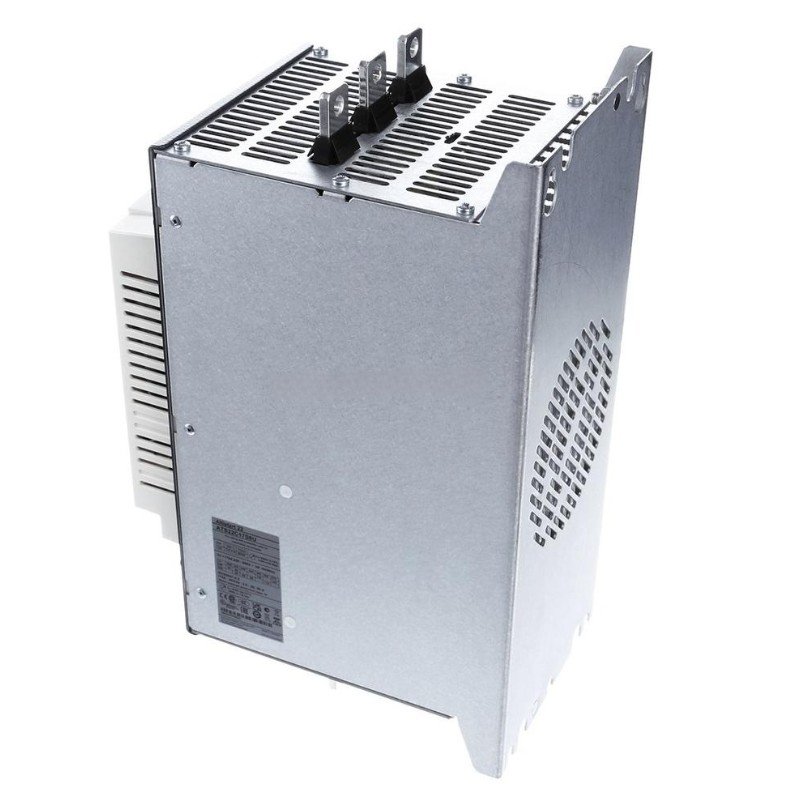

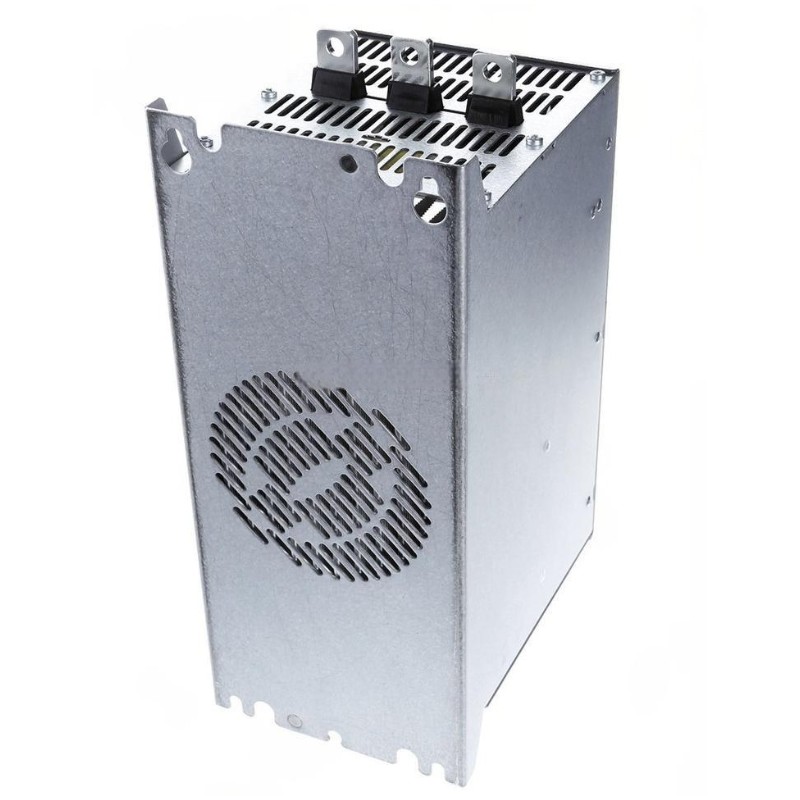

The Schneider ATS22C17S6U is a soft starter designed for controlled motor starting in industrial applications. It reduces starting current and mechanical stress by gradually increasing voltage during motor startup.
This model is widely used in pump, fan, compressor, and conveyor systems where direct starting would cause unnecessary strain on electrical supply and mechanical components. With an internal bypass design, it supports efficient operation after startup and is suitable for continuous industrial environments where stable motor behavior is required.
Technical Specifications
Item
Specification
Product Model
ATS22C17S6U
Product Series
Altistart 22
Rated Current
170 A
Supply Voltage
208–600 V AC
Control Voltage
110 V AC
Motor Power Range
50–150 HP (depending on voltage)
Control Method
Torque-controlled soft start
Function
Internal bypass included
Protection Class
IP00
Cooling Method
Forced convection
Mounting Type
Panel mounted
Dimensions
356 × 150 × 229.5 mm
Weight
18 kg
Recommended Related Models
Model
Product Name
ATS22C17Q
Schneider Altistart 22 Soft Starter
ATS22C21S6
Schneider Altistart 22 Higher Current Model
ATS480C17Y
Schneider Altistart 480 Soft Starter
ATS01N222QN
Schneider Basic Soft Starter
Popular Related Models
Model
Product Name
ATS22C11S6
Schneider Altistart 22 Lower Current Variant
ATS48C25Q
Schneider Altistart 48 Series
ATS22D17Q
Schneider Altistart 22 Alternative Version
ATS01N212QN
Schneider Compact Soft Starter
Applications
• Used for controlled starting of three-phase motors in pump systems to reduce pressure shock and improve smooth operation.
• Applied in HVAC fan and air handling units to limit mechanical stress during startup.
• Installed in compressor systems where gradual acceleration helps protect mechanical components and piping.
• Used in conveyor systems to reduce belt tension spikes during motor start.
• Applied in industrial processing equipment where stable ramp-up is needed for consistent operation.
• Suitable for general plant applications where reducing inrush current helps protect the electrical network.
Key Advantages
• Controlled start reduces peak current during motor acceleration.
• Integrated bypass function improves efficiency after reaching rated speed.
• Stable starting behavior supports longer equipment service life.
• Designed for reliable operation in continuous industrial environments.
• Compact structure simplifies installation in standard control cabinets.
Technical FAQs
Q1: What is the main function of this soft starter?
It controls motor starting by gradually increasing voltage to limit starting current and torque impact.
Q2: What type of motors is it used with?
It is used with standard three-phase asynchronous motors.
Q3: Does it include bypass functionality?
Yes, it has an internal bypass for normal running after startup.
Q4: Is it suitable for pump applications?
Yes, it is commonly used in pump systems.
Q5: What happens after the motor reaches full speed?
It switches to bypass mode to support efficient operation.
Q6: Can it be used in continuous duty systems?
Yes, it is designed for continuous industrial use.
Q7: Does it help reduce mechanical wear?
Yes, smoother acceleration reduces stress on mechanical parts.
Q8: Is installation complicated?
No, installation and setup are straightforward for standard applications.
Q9: What industries commonly use it?
Water treatment, HVAC, manufacturing, mining, and general industrial systems.
Q10: What is its main role in a system?
It provides controlled motor starting and reduces electrical impact during startup.
