Introduction

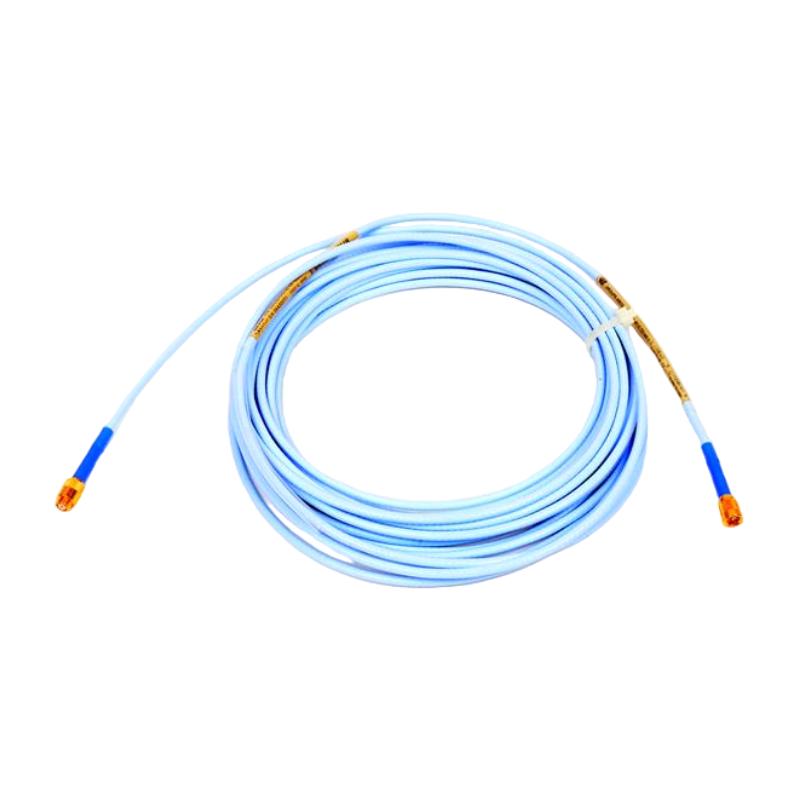

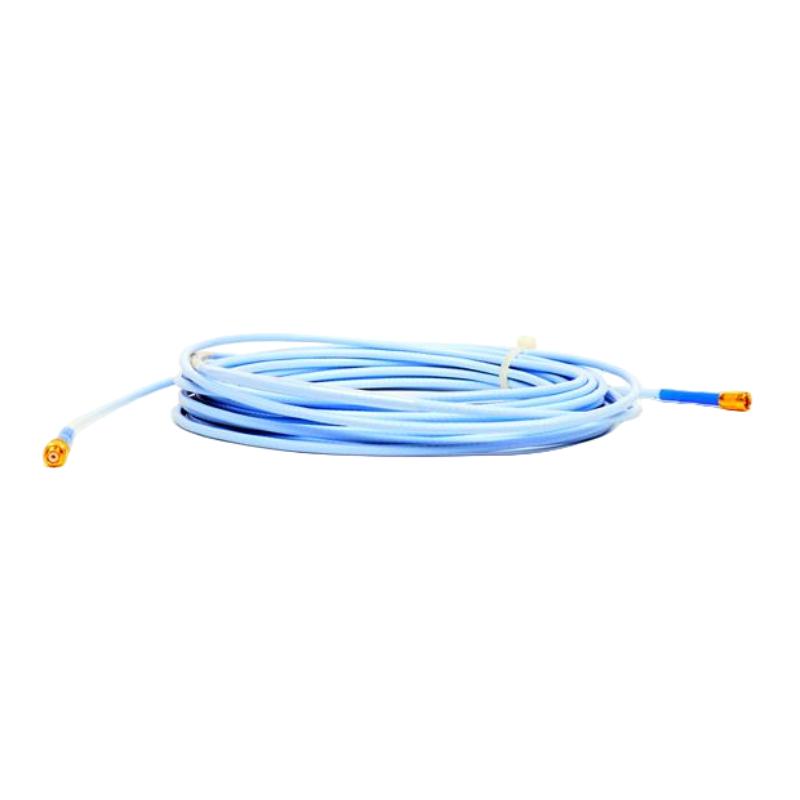

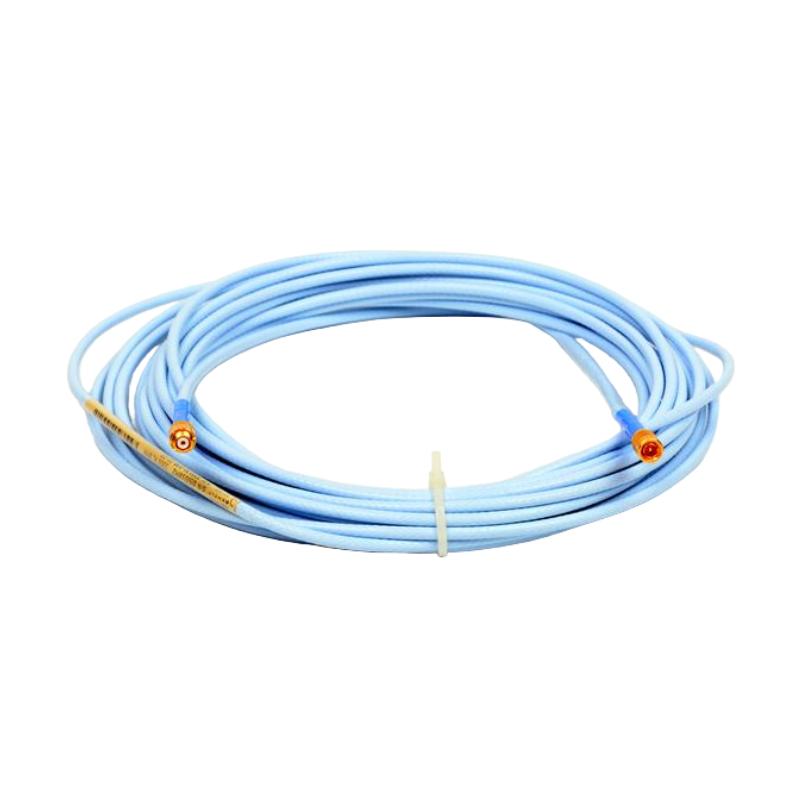

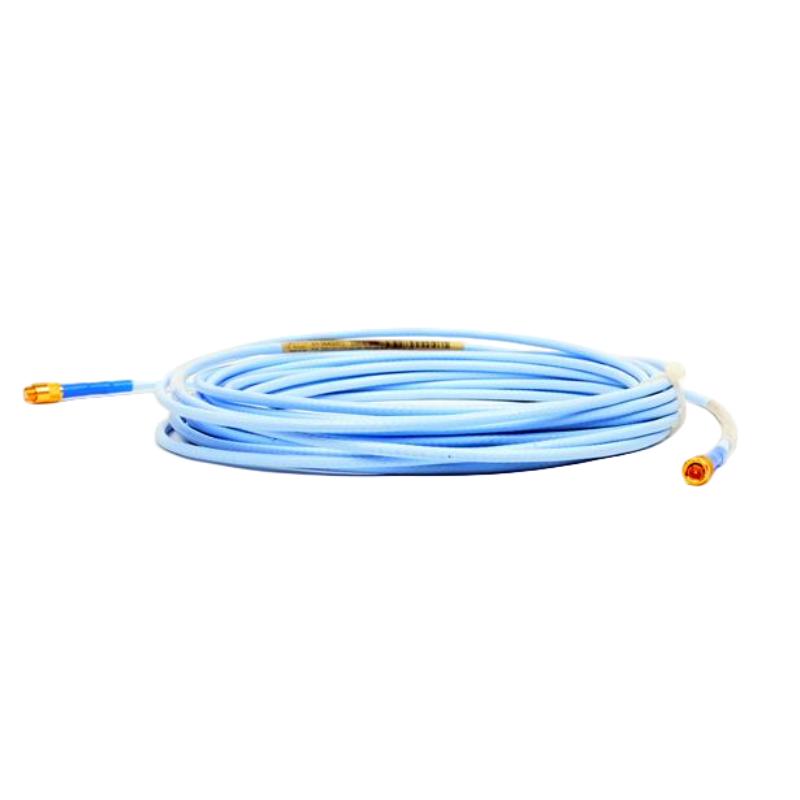

The Bently Nevada 330130-070-00 extension cable is a core component of the 3300 XL vibration monitoring ecosystem, enabling precise and stable signal transmission between proximity probes and monitoring modules.

It is engineered for high-reliability industrial environments where equipment protection depends on accurate vibration data acquisition.

With robust shielding and factory-terminated construction, the cable ensures consistent performance in demanding predictive maintenance and asset protection applications.

Technical Specifications

Parameter	Specification
Product Type	Vibration Monitoring Extension Cable Module
Series	Bently Nevada 3300 XL
Model	330130-070-00
Cable Length	7 m
Signal Type	Proximity probe vibration signal transmission
Shielding	Industrial-grade EMI shielding
Connector Type	Factory pre-terminated industrial connectors
Installation Type	Fixed industrial routing
Operating Environment	Harsh industrial / rotating machinery systems
Dimensions (W × H × D)	Cable-based (non-rigid form factor)
Weight	0.238 kg / 0.524 lb

Recommended Related Models

Bently Nevada 330780 Proximity Probe
Bently Nevada 330180 Proximitor Sensor
Bently Nevada 3300 XL 10-meter Extension Cable
Bently Nevada 3300 XL Proximity Transducer System
Bently Nevada 3500 Series Vibration Monitoring Modules

Popular Related Models

Bently Nevada 330780-90-00 Proximity Probe
Bently Nevada 330180-51-00 Proximitor Sensor
Bently Nevada 330130-040-00 Extension Cable (4 m)
Bently Nevada 3500/40M Vibration Monitor Module
Bently Nevada 3500/22M Transient Data Interface Module

Applications

This 3300 XL extension cable is designed for industrial condition monitoring systems where stable, low-noise signal transmission is required over extended distances.

It is commonly applied in:

Turbomachinery vibration monitoring networks
Compressor and gas turbine protection systems
Pump and motor health monitoring systems
Power generation asset condition monitoring
Oil & gas rotating equipment diagnostics
Industrial predictive maintenance infrastructures

The cable is optimized for continuous operation in environments where signal accuracy directly impacts equipment protection decisions.

Advantages

High-integrity signal transmission with minimal attenuation
Optimized compatibility with Bently Nevada 3300 XL system architecture
Strong EMI shielding for electrically noisy industrial environments
Stable performance over 7-meter transmission distance
Factory-terminated design for reduced installation errors
Enhanced durability for long-term industrial deployment
Consistent performance in vibration-critical monitoring loops

Technical FAQs

Q1: Is this cable specifically designed for the 3300 XL system?
Yes, it is fully engineered for compatibility with Bently Nevada 3300 XL proximity monitoring architecture.

Q2: Does the cable maintain signal stability over long distances?
Yes, it is designed to preserve low-noise signal transmission across the full 7-meter length.

Q3: Is external shielding effective against industrial EMI?
Yes, it incorporates industrial-grade shielding to reduce electromagnetic interference.

Q4: Can it be used in rotating machinery protection systems?
Yes, it is commonly used in vibration monitoring for rotating equipment protection.

Q5: Is field termination required?
No, it comes factory-terminated for direct installation.

Q6: Can it be installed in parallel with power lines?
It is not recommended due to potential EMI coupling effects.

Q7: Does it require calibration after installation?
No calibration is required for the cable itself within the monitoring system.

Q8: Is it suitable for continuous operation environments?
Yes, it is designed for continuous industrial duty cycles.

Q9: What happens if the shielding integrity is compromised?
Signal noise may increase significantly and the cable should be replaced immediately.

Q10: Can it be extended using additional connectors?
System extension beyond design specifications is not recommended as it may degrade signal quality.
