Introduction

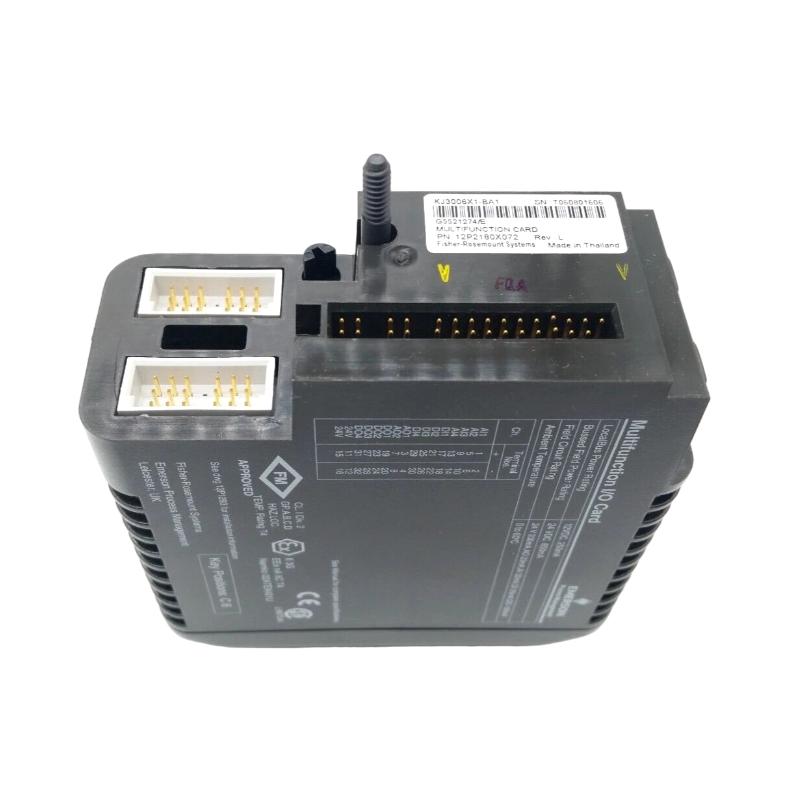

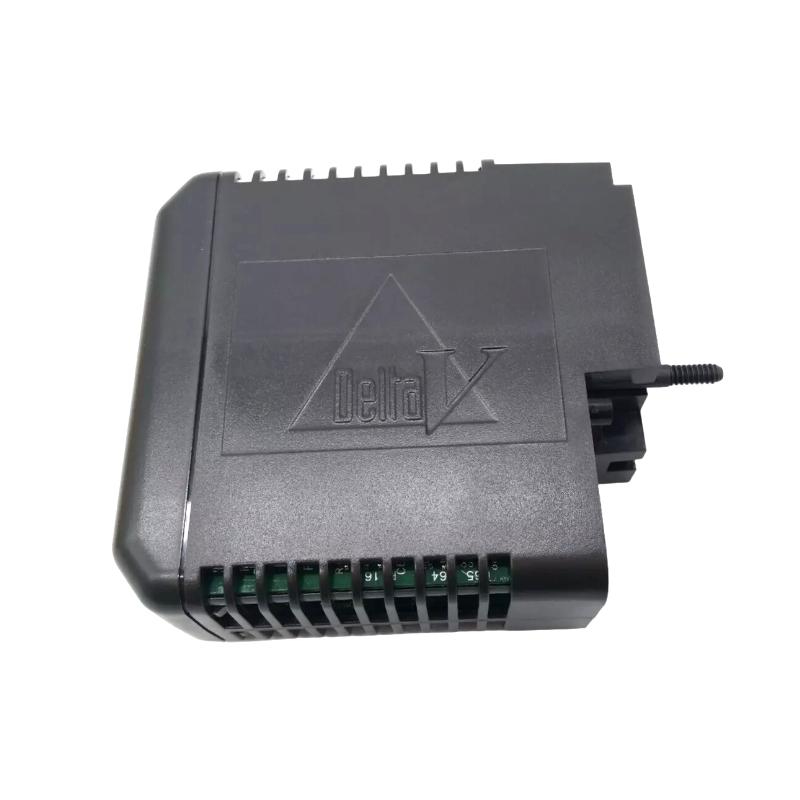

The Emerson KJ3006X1-BA1 Multi-function I/O Card offers a versatile and space-efficient approach to signal management in DeltaV automation systems. By combining multiple I/O functions into a single lightweight card, it helps reduce hardware footprint while maintaining system flexibility. Designed with industrial reliability in mind, it is well suited for both new installations and system expansions.

Technical Specifications

Item	Specification
Model	KJ3006X1-BA1
Product Type	Multi-function I/O Card
Dimensions	107 × 41 × 105 mm
Weight	0.204 kg
Installation	DeltaV I/O carrier
Function	Multi-function signal input/output
System Compatibility	Emerson DeltaV DCS
Application Environment	Industrial process automation

Recommended Related Models

Emerson KJ3002X1-BG2 – DeltaV I/O Carrier
Emerson VE4010B1 – IS Digital Input Module
Emerson VE4011B1 – IS Digital Output Module

Popular Related Models

Emerson KJ3005X1-BA1 – Analog I/O Card
Emerson KJ3007X1-BA1 – Digital I/O Card
Emerson VE4003S2B1 – Analog Input Module

Operational Applications

The Emerson KJ3006X1-BA1 Multi-function I/O Card is designed to deliver flexible signal handling within Emerson DeltaV control architectures. It is commonly applied in scenarios such as:

Mixed-signal environments requiring both digital and analog I/O handling
DeltaV systems where modularity and configuration flexibility are critical
Process automation systems with evolving I/O requirements
Industrial plants seeking to reduce hardware complexity through multifunction modules

Performance Highlights

Multi-function Capability: Supports diverse I/O requirements within a single compact card.
DeltaV-Native Integration: Designed specifically for seamless operation within DeltaV systems.
Lightweight Construction: At just 0.204 kg, it reduces panel load and simplifies handling.
Efficient Space Utilization: Compact dimensions allow high-density cabinet installations.
Industrial Reliability: Built for stable, long-term operation in demanding environments.

Technical FAQs

What is the main purpose of the KJ3006X1-BA1 card?
It provides flexible multi-function I/O support within DeltaV control systems.
Which control system is it designed for?
Emerson DeltaV Distributed Control Systems.
What are the physical dimensions of the card?
107 × 41 × 105 mm.
How much does the card weigh?
0.204 kg.
What makes it different from single-function I/O cards?
It combines multiple I/O functions, reducing the need for separate modules.
Is it suitable for system expansions or retrofits?
Yes, its modular design supports both upgrades and new installations.
Where is it typically installed?
In DeltaV I/O carriers inside control cabinets.
Does it help reduce overall system complexity?
Yes, by consolidating I/O functions into a single card.
Is it designed for continuous industrial operation?
Yes, engineered for reliable, around-the-clock use.
Which industries commonly use this card?
Oil & gas, chemical processing, power generation, and manufacturing.
