Brand:Epro PLC Item No.:PR6426/010-100 Product Origin:Germany Product Dimensions: Sensor Head Diameter: 32 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

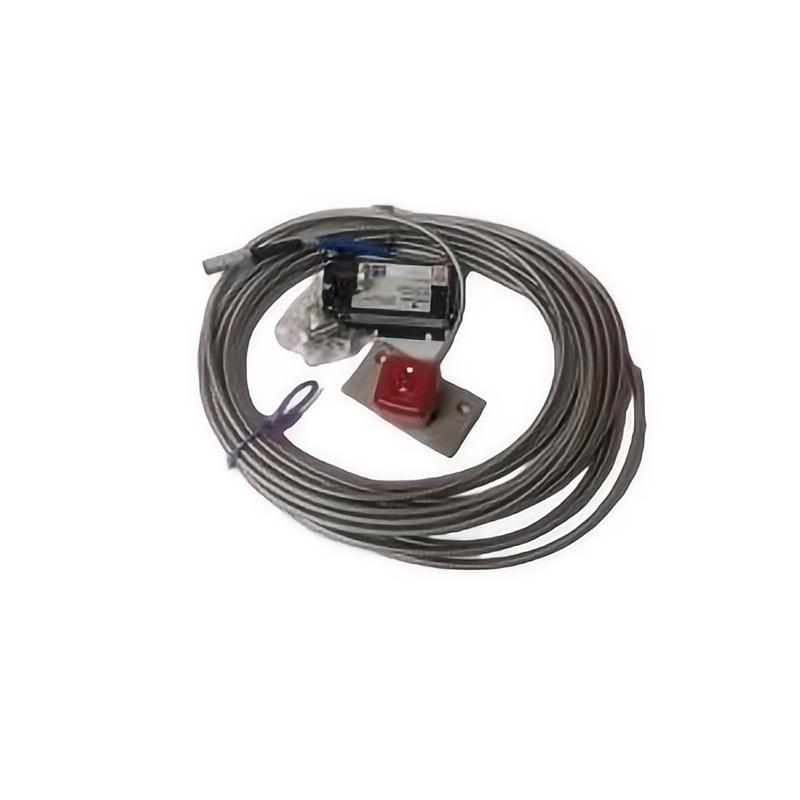

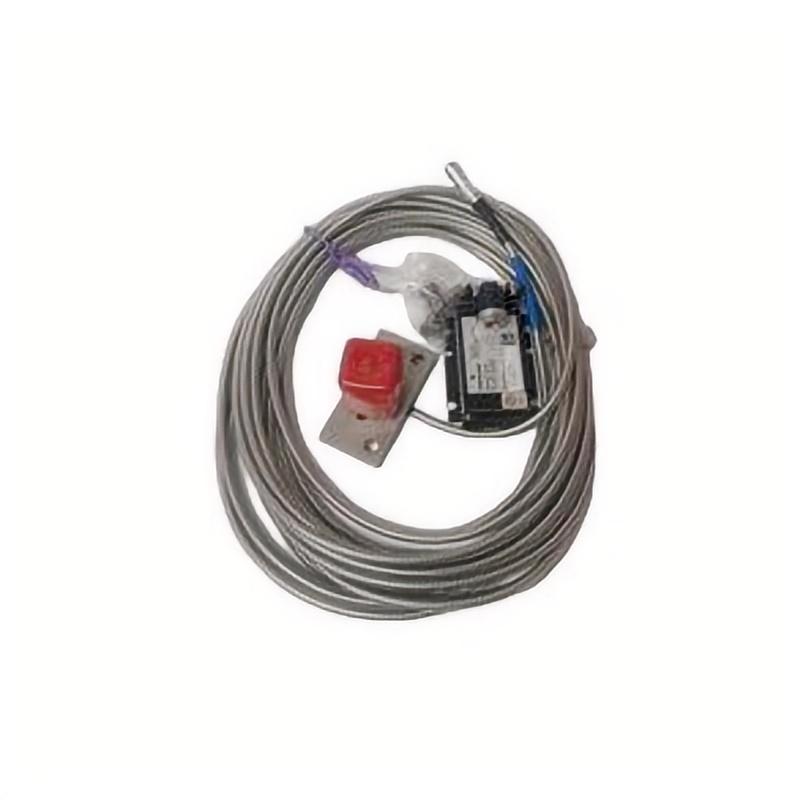

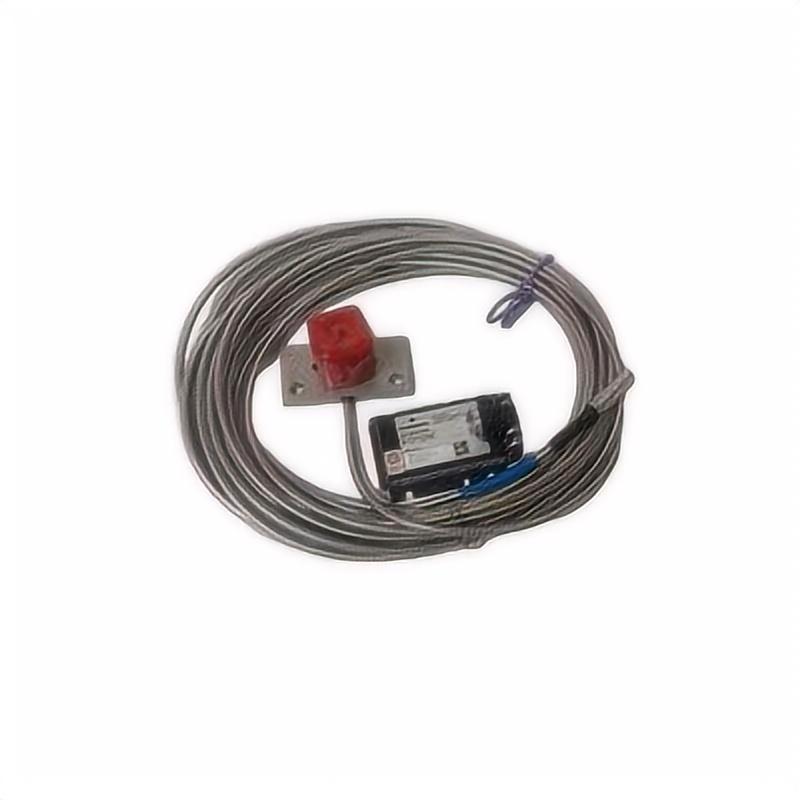

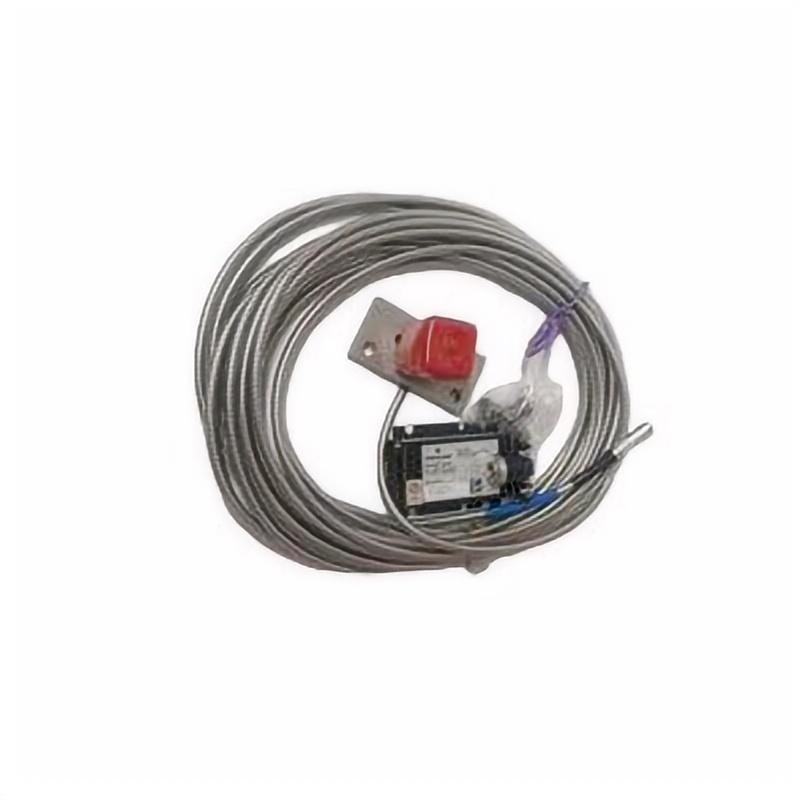

The EPRO PR6426/010-100 is a 32 mm eddy current displacement sensor used in high-reliability rotating machinery monitoring systems. It operates by generating a high-frequency electromagnetic field and measuring variations in induced eddy currents on the target surface, enabling precise non-contact measurement of shaft movement.
This technology is widely used in predictive maintenance systems to detect early signs of imbalance, misalignment, bearing wear, and rotor instability.
EPRO signal conditioning systems (e.g., CON021 series)
Installation Type
Fixed industrial mounting
Operating Environment
Turbine and heavy rotating machinery systems
Weight
0.8 kg / 1.76 lb
Dimensions (W × H × D)
N/A (sensor and cable assembly dependent)
Recommended Related Models
EPRO PR6426/010-110 Eddy Current Sensor
EPRO PR6426/010-140 Eddy Current Sensor
EPRO PR6425 Series Eddy Current Sensors
EPRO CON021 Signal Converter Module
EPRO MMS6000 Monitoring System Modules
Popular Related Models
EPRO PR6426/010-140 Eddy Current Sensor
EPRO PR6425/010-110 Eddy Current Sensor
EPRO PR6424 Series Eddy Current Sensors
EPRO CON041 Signal Conditioner Module
EPRO PR6423 Series Sensors
Applications
The PR6426/010-100 is designed for heavy-duty industrial rotating equipment monitoring, especially where large shaft diameters and high dynamic loads are involved.
Typical applications include:
Steam turbine shaft vibration monitoring
Gas turbine rotor displacement measurement
Hydro turbine shaft position monitoring
Large compressor axial displacement and thrust monitoring
Industrial gearbox condition monitoring
Power plant rotating machinery protection systems
Oil & gas turbomachinery diagnostics
It is suitable for critical machinery where continuous non-contact displacement measurement is required.
Advantages
32 mm class eddy current sensing for large shaft applications
Non-contact measurement eliminates mechanical wear and friction
High stability under high temperature and harsh environments
Strong resistance to oil, dust, and industrial contamination
High linearity for accurate vibration and displacement tracking
Suitable for continuous 24/7 monitoring operation
Compatible with EPRO signal conditioning systems
Reliable performance in mission-critical machinery protection
Technical FAQs
Q1: What does the PR6426/010-100 measure?
It measures shaft vibration, radial displacement, axial position, and eccentricity.
Q2: Is this a contact sensor?
No, it is a non-contact eddy current displacement sensor.
Q3: What size shaft is it used for?
It is designed for large rotating shafts, typically used in heavy industrial machinery.
Q4: Does it require a signal conditioner?
Yes, it is used with EPRO signal conditioning modules (such as CON021 or equivalent).
Q5: Can it be used in turbine systems?
Yes, it is widely used in steam, gas, and hydro turbine monitoring systems.
Q6: Is it suitable for harsh environments?
Yes, it is designed for high temperature, vibration, and contaminated industrial conditions.
Q7: Does the sensor require calibration?
No direct sensor calibration is required; system calibration is handled by the signal conditioner.
Q8: What material does it measure?
It measures conductive metallic targets such as turbine shafts.
Q9: Can it operate continuously?
Yes, it is designed for continuous industrial monitoring applications.
Q10: What is the measurement principle?
It uses eddy current induction to measure distance changes between probe and conductive surface.
