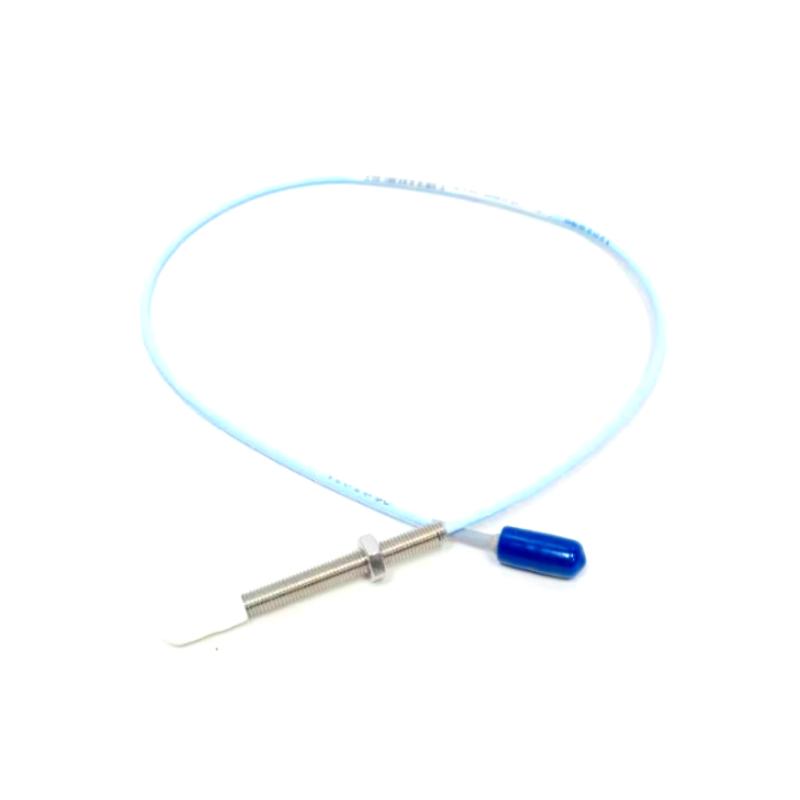

The Bently Nevada 330193-00-08-10-00 is a 3300 XL 8 mm Extended Temperature Range (ETR) proximity probe designed for precise, non-contact measurement of shaft vibration and radial position in rotating machinery. It is widely used in condition monitoring systems for turbines, compressors, pumps, and generators where long-term signal stability and high accuracy are essential.
As part of the Bently Nevada 3300 XL series, this probe uses eddy-current sensing technology to deliver reliable displacement measurement even in harsh industrial environments with vibration, oil contamination, and electromagnetic interference.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330193-00-08-10-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (standard mounting) |
| Case Length Option | 08 – standard extended probe body configuration |
| Unthreaded Length | 00 – standard configuration |
| Cable Length Option | 10 – 1.0 m integral cable |
| Output Type | Analog displacement signal |
| Application | Shaft vibration, radial displacement, position monitoring |
Mechanical Dimensions & Weight
| Parameter | Value |
| Dimensions (L × W × H) | 1000 × 8 × 8 mm (assembly reference including cable length) |
| Weight | Approx. 0.32–0.36 kg |
