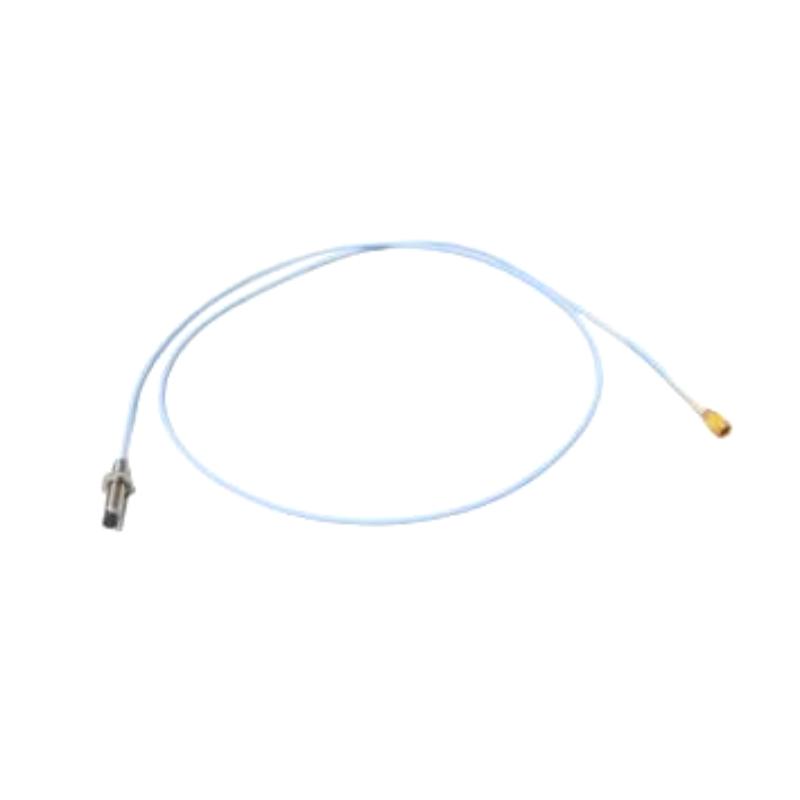

The Bently Nevada 330193-09-20-05-00 is a 3300 XL 8 mm Extended Temperature Range (ETR) proximity probe used for high-precision, non-contact measurement of shaft vibration and radial displacement in rotating machinery. It is part of the widely adopted 3300 XL proximity transducer system, designed for continuous machinery protection and condition monitoring in demanding industrial environments such as power generation, oil & gas, and heavy manufacturing.
This model follows the standard eddy-current sensing principle, delivering stable and repeatable signals even under harsh conditions such as high vibration, temperature variation, and electromagnetic interference.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330193-09-20-05-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 (typical 3300 XL configuration) |
| Case Length Option | 09 – extended probe body configuration |
| Unthreaded Length | 20 – extended mounting geometry |
| Cable Length Option | 05 – system cable configuration (short-medium length class) |
| Output Type | Analog displacement signal |
| Application | Shaft vibration, position, radial displacement monitoring |
Mechanical Dimensions & Weight
| Parameter | Value |
| Dimensions (L × W × H) | 500 × 8 × 8 mm (approx. assembly reference including cable contribution) |
| Weight | Approx. 0.30–0.40 kg |
