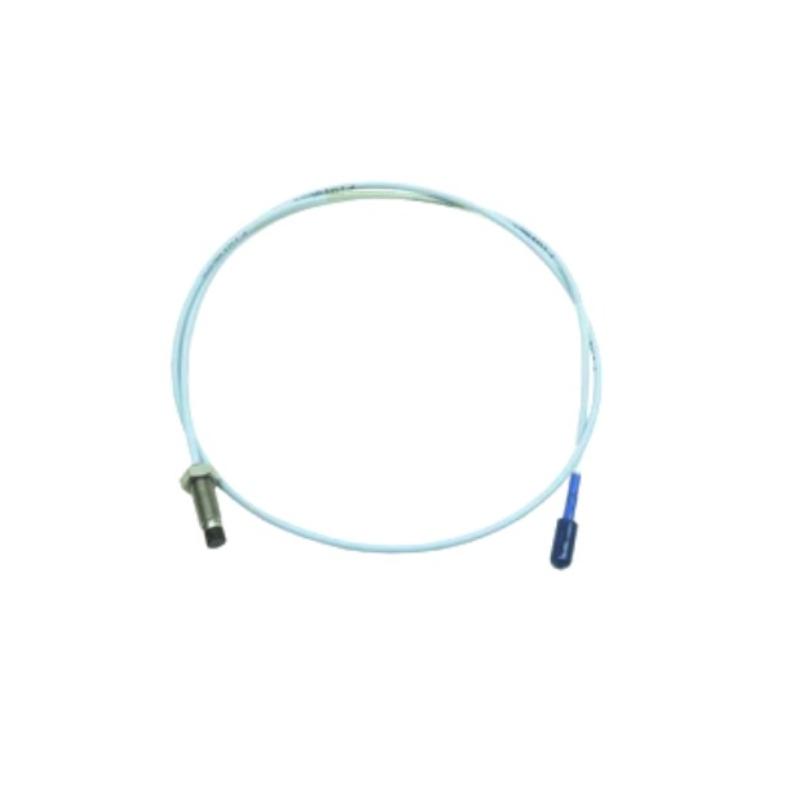

The Bently Nevada 330195-02-12-05-00 is a 3300 XL 8 mm Extended Temperature Range (ETR) reverse-mount proximity probe designed for accurate, non-contact measurement of shaft vibration and radial position in rotating machinery. It is widely used in turbine systems, compressors, pumps, and generators for continuous condition monitoring and protection.
As part of the 3300 XL proximity transducer system, this model is built on eddy-current sensing technology, providing stable signal output and reliable performance in harsh industrial environments with high vibration, temperature variation, and electrical noise interference.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330195-02-12-05-00 |
| Product Type | 3300 XL 8 mm ETR Reverse Mount Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (standard 3300 XL configuration) |
| Case Length Option | 02 – standard compact probe body configuration |
| Unthreaded Length | 12 mm |
| Cable Length Option | 05 – approx. 0.5 m system cable (short configuration) |
| Output Type | Analog displacement signal |
| Application | Shaft vibration, radial position monitoring |
Physical Dimensions & Weight
| Parameter | Value |
| Dimensions (L × W × H) | Approx. 500 × 8 × 8 mm (assembly reference including cable length) |
| Weight | Approx. 0.25–0.35 kg |
