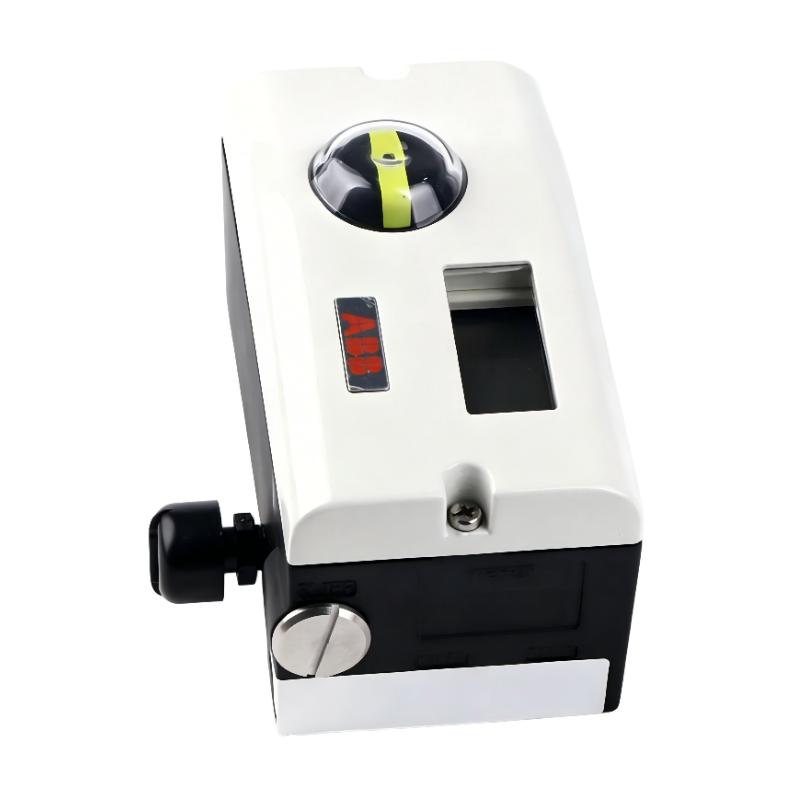

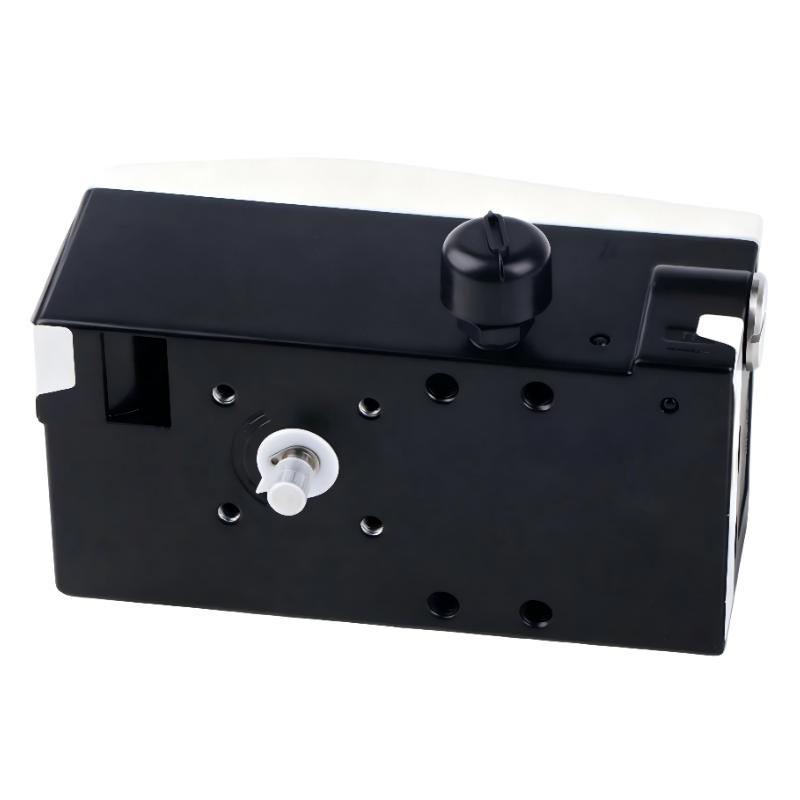

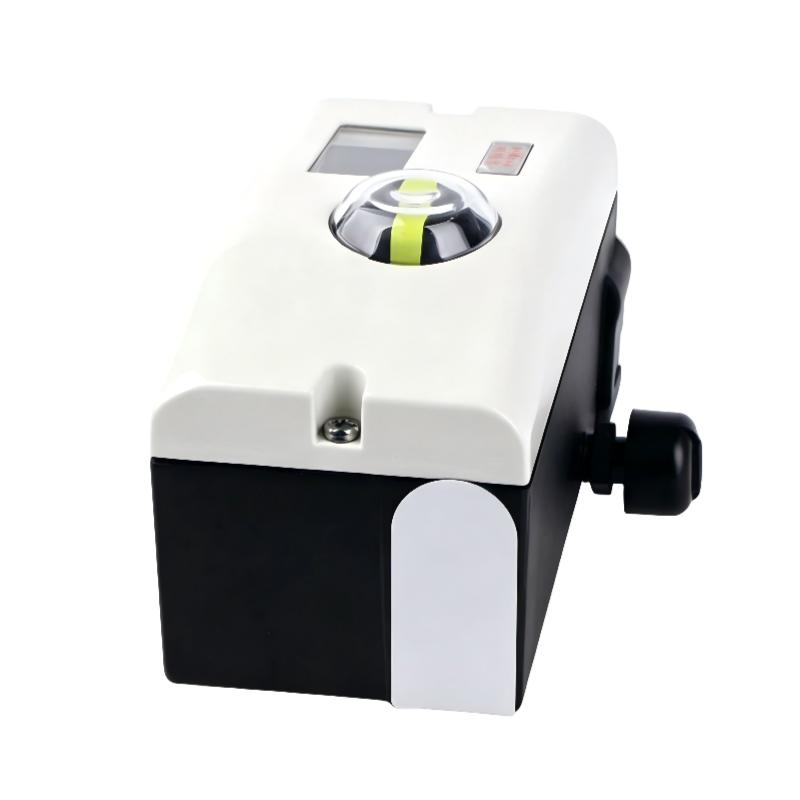

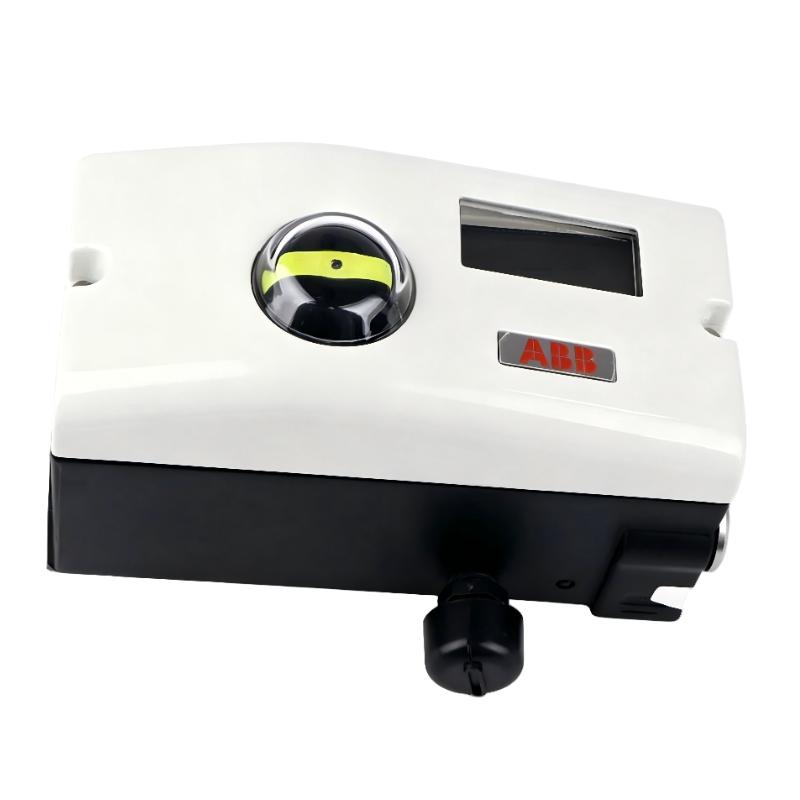

ABB V18345-2020521001 Valve Positioner

Applications

• Designed for precise valve positioning in chemical processing, petrochemical, and refinery applications.

• Suitable for oil and gas facilities requiring accurate control of flow, pressure, and process media.

• Used in power generation plants for regulating steam, condensate, cooling water, and auxiliary process valves.

• Ideal for water and wastewater treatment systems that demand reliable valve modulation and stable process control.

• Applicable to pharmaceutical, food, and beverage industries where accurate valve positioning and dependable automation are essential.

Key Advantages

• Intelligent electro-pneumatic control delivers fast response and outstanding positioning accuracy.

• Advanced digital control technology minimizes hysteresis and enhances process stability.

• Supports standard 4–20 mA input with HART communication for convenient configuration and diagnostics.

• Automatic self-calibration simplifies commissioning and reduces installation time.

• Integrated diagnostic functions support predictive maintenance and improve system availability.

• Compatible with both linear and rotary pneumatic actuators for versatile industrial applications.

Technical FAQs

Q1: What type of control signal does this positioner use?
It operates with a standard 4–20 mA two-wire analog input signal.

Q2: Does this model support HART communication?
Yes, HART communication is supported for parameter configuration, diagnostics, and device management.

Q3: Which actuator types are compatible?
It is compatible with both linear and rotary pneumatic actuators using standard industrial mounting interfaces.

Q4: Does the positioner support double-acting actuators?
Yes, this configuration is suitable for double-acting pneumatic actuator applications.

Q5: Is automatic commissioning available?
Yes, automatic initialization and self-adjustment simplify installation and optimize positioning accuracy.

Q6: Can valve position feedback be provided?
Yes, compatible configurations support analog position feedback for continuous monitoring.

Q7: What diagnostic functions are included?
The device continuously monitors valve travel, actuator performance, and operating status to support predictive maintenance.

Q8: Is it designed for continuous industrial operation?
Yes, it is engineered for continuous-duty service in demanding process automation environments.

Q9: Can it be integrated into PLC and DCS systems?
Yes, it integrates seamlessly with modern PLC and DCS platforms using standard industrial communication methods.

Q10: How does the positioner respond during a power failure?
Depending on the configured output option, it can provide a defined fail-safe action such as fail-freeze.
