Brand:Schneider PLC Item No.:ATS01N212QN Product Origin:France Product Dimensions:124 x 45 x 131 mm Product Weight:0.42 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

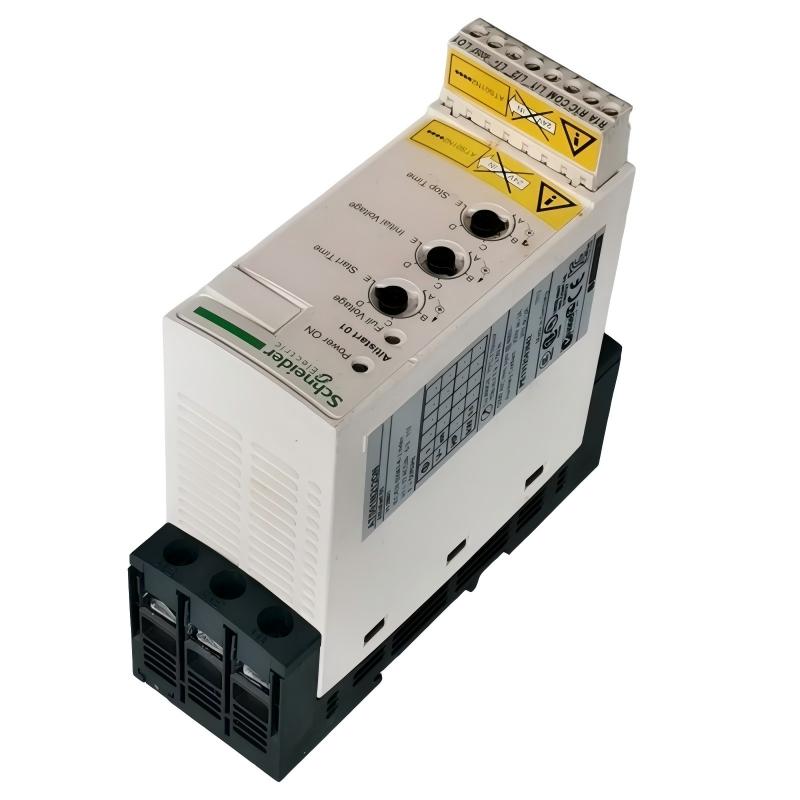

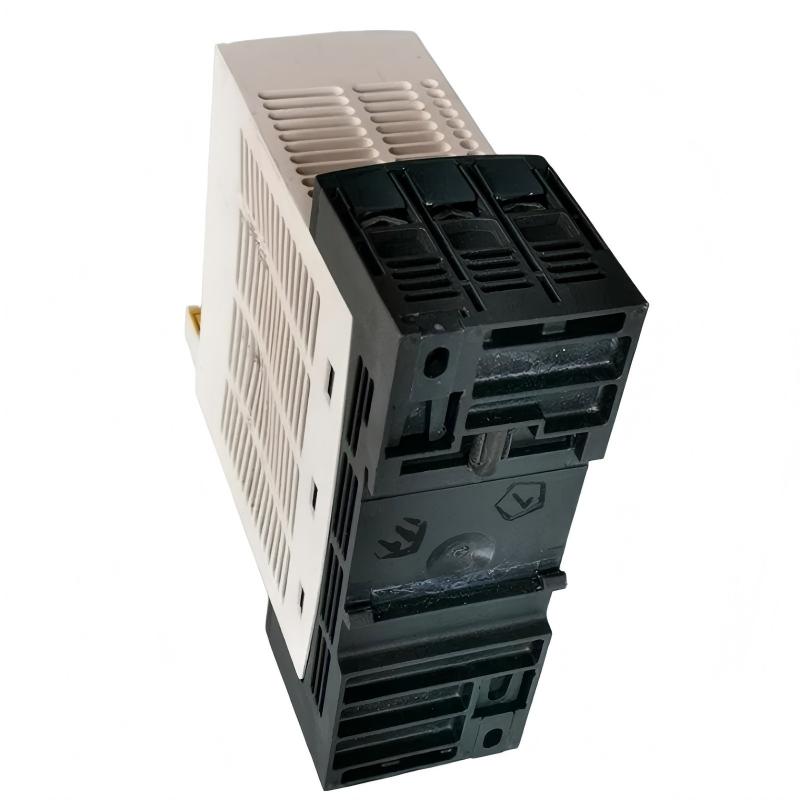

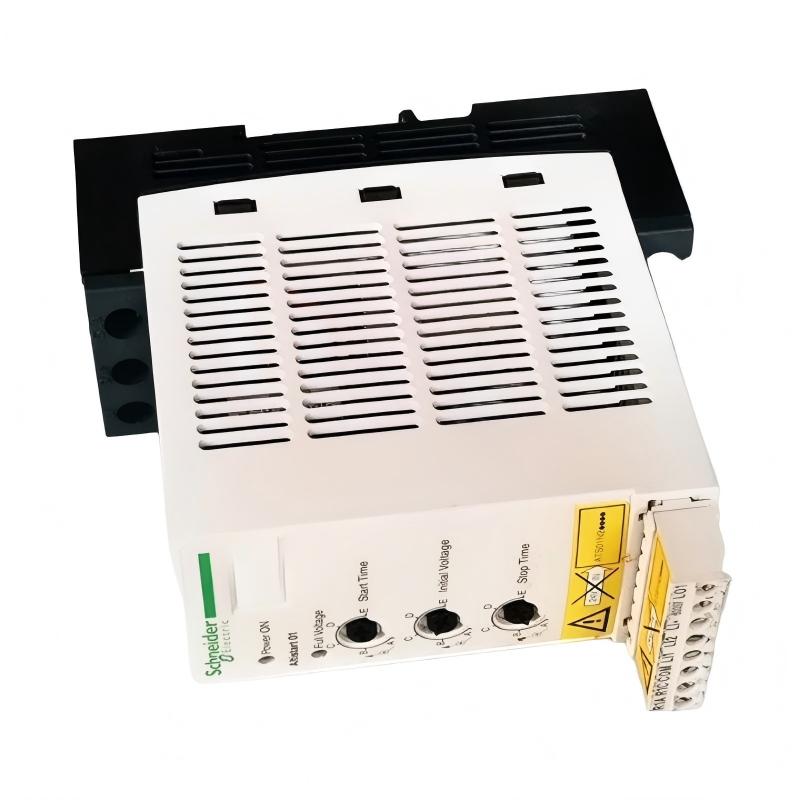

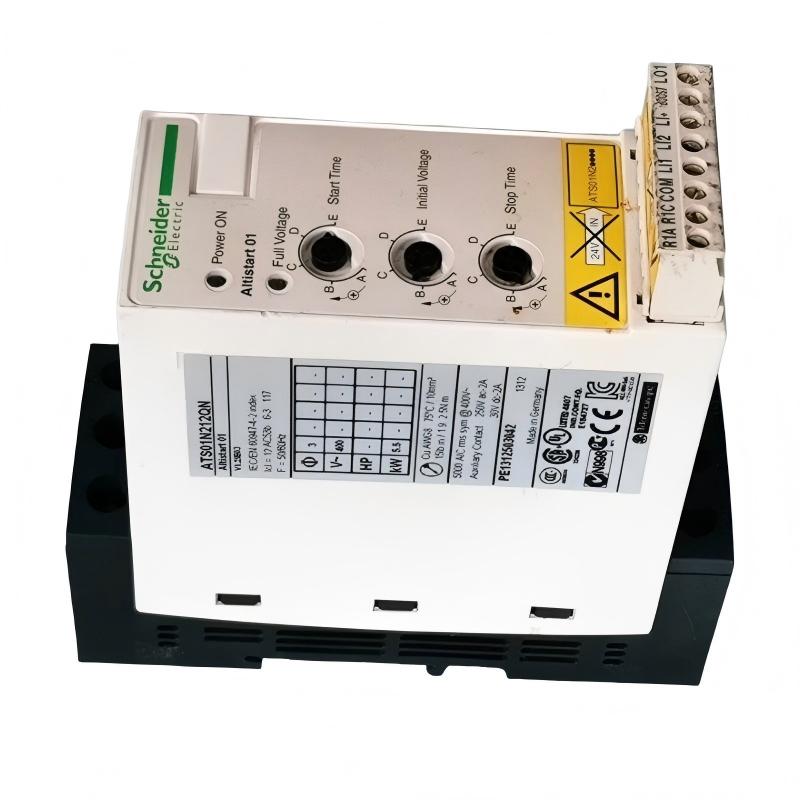

The Schneider Electric ATS01N212QN Soft Starter from the Altistart 01 series is a compact motor starting solution designed to provide smooth acceleration and deceleration for three-phase asynchronous motors. It reduces mechanical stress and electrical surges during startup, improving system stability and extending equipment service life.
This model is widely used in OEM systems and light industrial applications where simplicity, reliability, and space efficiency are key requirements.
Technical Specifications
Parameter
Value
Model
ATS01N212QN
Series
Altistart 01
Rated Supply Voltage
380–415 VAC
Rated Current
12 A
Motor Power
5.5 kW (3-phase @ 400V)
Control Type
Voltage ramp soft start
Phases
3-phase
Mounting Type
DIN rail
Starting Time
1–10 s adjustable
Deceleration Time
1–10 s adjustable
Integrated Bypass
Yes
Protection Rating
IP20
Dimensions (H×W×D)
124 × 45 × 131 mm
Weight
0.42 kg (0.93 lb)
Operating Principle
Asynchronous motor soft starter
Recommended Related Models
ATS01N112QN Soft Starter Module
ATS01N222QN Soft Starter Module
ATS01N206QN Soft Starter Module
ATS48C11Q Soft Starter Module
Popular Related Models
ATS01N112QN
ATS01N212QN
ATS01N222QN
ATS48C14Q
ATS48C25Q
Applications
The Schneider Electric ATS01N212QN Soft Starter is designed for controlled motor starting in light industrial environments where smooth acceleration is required to protect mechanical systems and improve operational stability.
Typical applications include:
Pumping and fluid transfer systems
HVAC fans and air circulation units
Conveyor and light transport systems
Small compressors
Automated mechanical equipment
OEM machinery requiring soft start control
Its controlled voltage ramp helps reduce mechanical shock and electrical stress during startup and shutdown cycles.
Advantages
Compact design for space-efficient panel installation
Integrated bypass function for improved energy efficiency
Smooth voltage ramp reduces mechanical stress
Helps limit inrush current during motor start
Simple configuration with minimal setup effort
Stable performance in standard industrial environments
Enhances overall motor lifespan and system reliability
Technical FAQs (Engineering Focus)
1. What is the operating principle of this soft starter?
It uses voltage ramp control to gradually increase motor voltage during startup.
2. Is this device suitable for heavy industrial loads?
It is intended for light-duty and standard industrial motor applications.
3. Does it support fieldbus or communication protocols?
No, it operates as a standalone soft starter without communication interfaces.
4. Can it be used with all three-phase motors?
Yes, it is designed for three-phase asynchronous motor control.
5. Does it require external motor protection?
Yes, external overload and protection devices are required.
6. Is parameter setup complex?
No, only basic ramp time adjustments are needed for commissioning.
7. Can it reduce water hammer in pumping systems?
Yes, the soft stop function helps reduce hydraulic shock effects.
8. Is continuous operation supported?
Yes, within rated thermal and electrical limits.
9. Does it provide torque control?
No, it does not include advanced torque control functionality.
10. Does it include a bypass contactor?
Yes, it has an integrated bypass function.
