Introduction

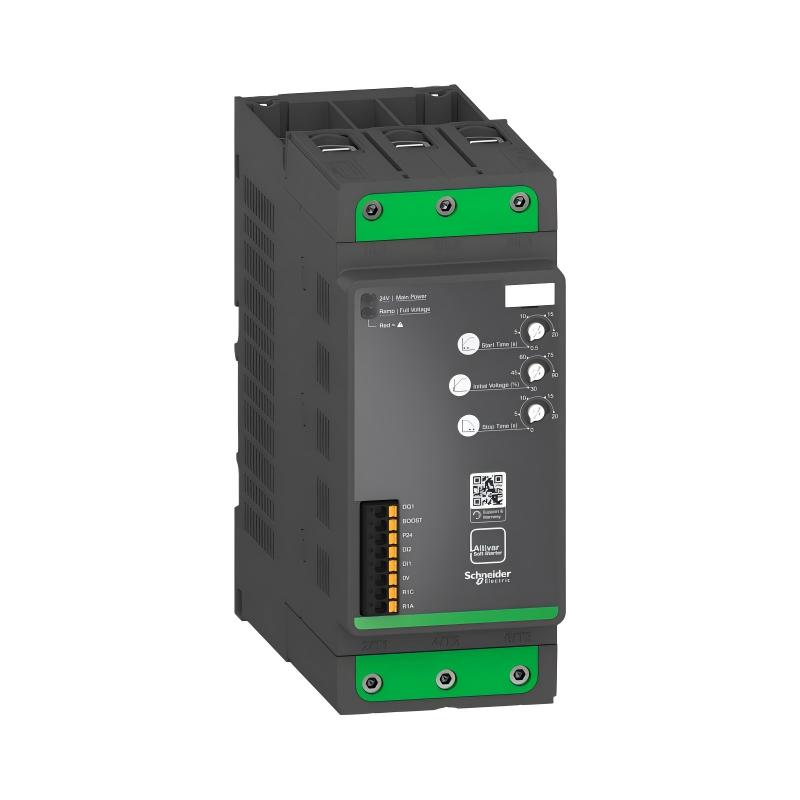

The ATS130N2C11LT is part of Schneider Electric’s Altivar ATS130 series, designed as a robust soft starter solution for industrial motor applications. It enables controlled voltage ramp-up during motor starting, helping reduce stress on electrical infrastructure and mechanical components.

Its compact structure and industrial-grade design make it suitable for OEM systems, pump stations, and production equipment requiring reliable and stable motor starting performance.

Technical Specifications

Parameter	Value
Product Series	Schneider Altivar ATS130
Model	ATS130N2C11LT
Device Type	Soft Starter
Rated Supply Voltage	200–480 V AC (3-phase)
Frequency	50/60 Hz
Rated Current	105 A
Motor Power Range	30 – 55 kW (depending on voltage)
Control Voltage	24 V DC
Control Method	Voltage ramp start
Protection Class	IP20
Mounting Type	Panel mounting
Operating Temperature	-10°C to +40°C
Storage Temperature	-25°C to +70°C
Dimensions (H × W × D)	197 × 81 × 180 mm
Weight	2.3 kg (5.07 lb)

Recommended Related Models

Schneider ATS130N2C11LT – 105A Soft Starter Module
Schneider ATS130N2D11LT – Higher current ATS130 variant
Schneider ATS22 Series Soft Starters
Schneider Altivar ATV320 Variable Speed Drives

Popular Related Models

ATS130N2C11LT Soft Starter Module
ATS130N2C11LT 105A Industrial Soft Starter
ATS22D Series Soft Starter Modules
ATS48 Heavy-Duty Soft Starters

Applications

The Schneider ATS130N2C11LT Soft Starter is designed for controlled starting and stopping of three-phase asynchronous motors in medium to heavy industrial applications where reducing mechanical stress and electrical inrush is essential.

Typical applications include:

Industrial pumping systems
HVAC ventilation and air handling systems
Compressors and refrigeration equipment
Conveyor and material transport systems
Process machinery in manufacturing lines
General-purpose industrial motor control systems

It is suitable for installations requiring compact integration and stable motor acceleration performance.

Advantages

Compact industrial design for control panel integration
Controlled voltage ramp reduces mechanical and electrical stress
Integrated bypass function improves energy efficiency during operation
Reduces peak current during motor startup
Enhances service life of motors and driven equipment
Stable operation in industrial environments
Designed for simplified installation and commissioning
Suitable for medium-duty industrial motor control applications

Technical FAQs (10 Questions)

Q1: What motor type is supported by this soft starter?
A: Three-phase squirrel cage induction motors.

Q2: What is the main function of this device?
A: It provides controlled motor starting and stopping to reduce inrush current and mechanical stress.

Q3: Does it support speed regulation during operation?
A: No, it only manages start and stop functions.

Q4: Can it be used in pump applications?
A: Yes, it is commonly used in pumping systems.

Q5: Does it require software configuration?
A: No, it is designed for simple parameter setup.

Q6: Does it include motor protection functions?
A: Yes, it includes built-in electronic protection features.

Q7: Can it operate without external PLC control?
A: Yes, it supports standalone operation.

Q8: Does it support communication protocols?
A: No, it does not include fieldbus communication interfaces.

Q9: Is it suitable for frequent starting cycles?
A: It is intended for standard industrial duty operation.

Q10: Does it help reduce mechanical wear?
A: Yes, it reduces torque shock during motor startup.
