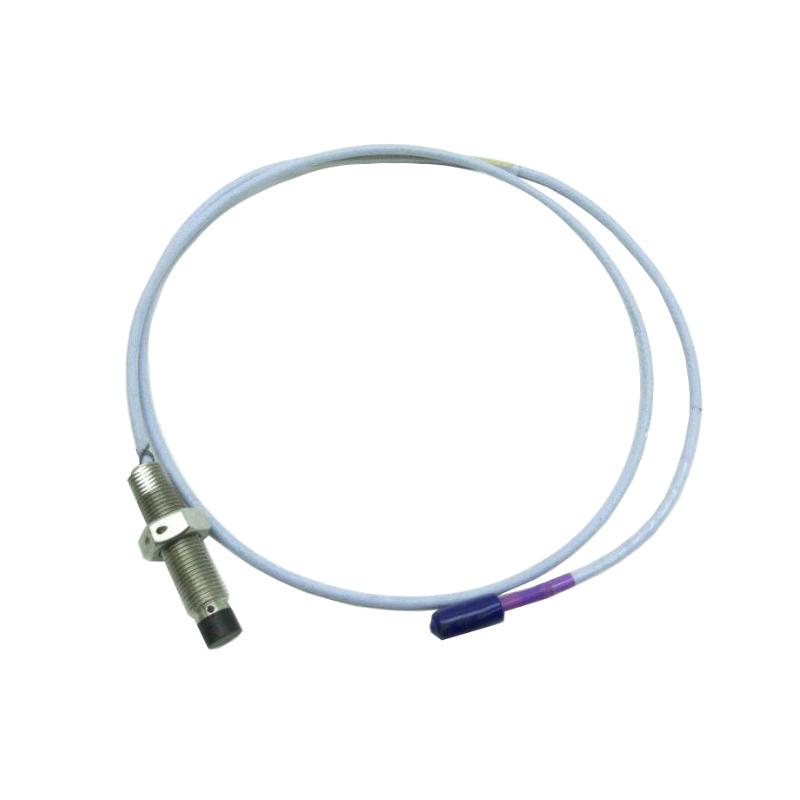

The Bently Nevada 330701-00-15-50-01-CN is a 3300 XL 11 mm proximity probe designed for non-contact measurement of shaft vibration, radial position, and mechanical displacement in rotating machinery. It is widely used in industrial condition monitoring systems for turbines, compressors, pumps, and generators where stable signal output and high measurement accuracy are required.
This model belongs to the Bently Nevada 3300 XL proximity transducer system, which is known for its rugged construction, excellent linearity, and strong resistance to industrial electromagnetic interference. It is suitable for continuous monitoring in demanding environments such as power plants, petrochemical facilities, and heavy industrial equipment.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330701-00-15-50-01-CN |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 11 mm |
| Thread Type | 1/2-20 UNF |
| Case Length Option | 00 – no threaded extension |
| Unthreaded Length | 15 – 1.5 in (approx. 38 mm) |
| Cable Length Option | 50 – 5.0 m integral cable |
| Connector Type | ClickLoc connector system |
| Approval Option | CN – China-specific certification configuration |
| Output Signal | Analog displacement signal |
| Application | Shaft vibration, radial position, gap measurement |
Physical Dimensions
| Parameter | Value |
| Dimensions (L × W × H) | 5000 × 11 × 11 mm (overall assembly including cable reference) |
| Weight | Approx. 0.50 kg |
