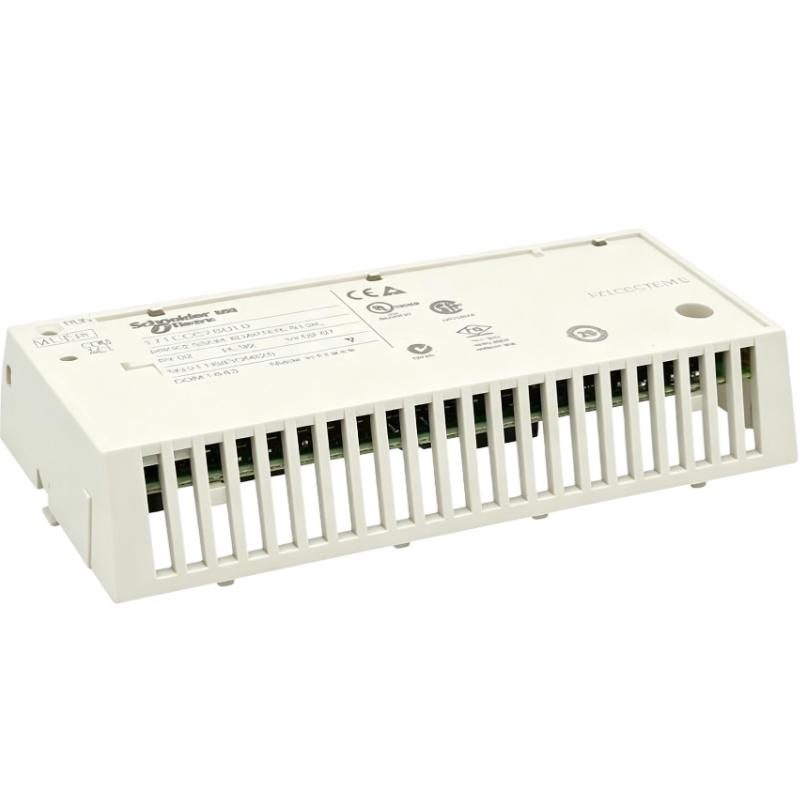

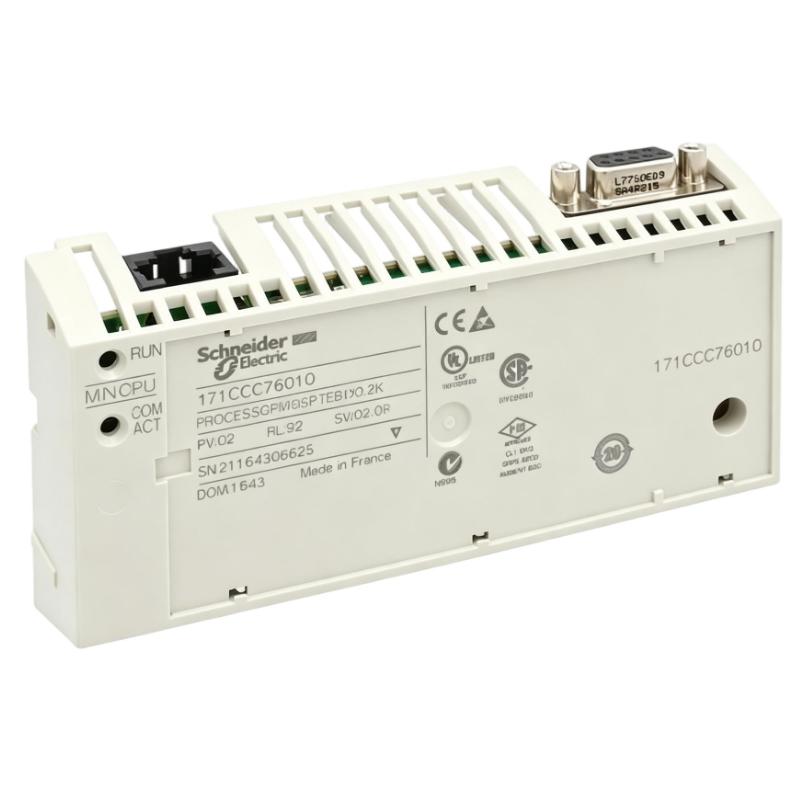

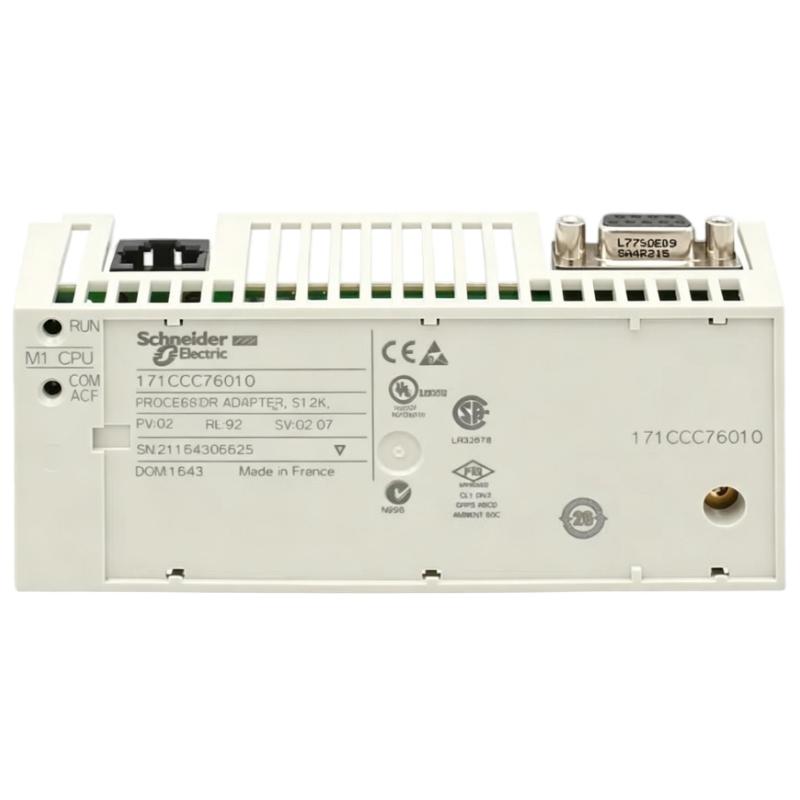

Schneider 171CCC76010 M1/M1E Processor Adapter

Applications

• Designed for Modicon Momentum automation systems requiring reliable processor-to-I/O base integration.

• Used in industrial control architectures where M1/M1E processors must interface with distributed I/O modules.

• Suitable for factory automation systems requiring stable communication between CPU and field devices.

• Applied in legacy PLC modernization projects based on Schneider Momentum platforms.

• Used in industrial control panels requiring compact processor adapter integration.

Key Advantages

• Provides stable electrical and communication interface between M1/M1E processor and Momentum I/O base.

• Ensures reliable Modbus communication for industrial automation systems.

• Supports multiple engineering software environments for flexible system configuration.

• Compact and modular design improves integration in control cabinet architectures.

• Enhances system scalability by enabling efficient processor-to-I/O expansion.

Technical FAQs

Q1: What is the function of this processor adapter?
It connects M1/M1E processors to the Modicon Momentum I/O base system.

Q2: What communication protocol does it support?
It supports Modbus communication protocol for industrial automation integration.

Q3: Which PLC platform is it compatible with?
It is designed for the Modicon Momentum automation platform.

Q4: Can it be used in modern automation systems?
It is mainly used in legacy or existing Momentum-based control systems.

Q5: Does it require external power supply?
It is powered through the Momentum I/O base system.

Q6: What software environments are supported?
It supports engineering tools such as Concept, Modsoft, and ProWORX platforms.

Q7: Is it suitable for distributed I/O systems?
Yes, it is specifically designed for distributed I/O architectures.

Q8: Does it support high-speed processing?
It is designed for deterministic industrial control performance within its platform limits.

Q9: Can it be replaced with newer PLC modules?
Replacement depends on system architecture and migration strategy.

Q10: Is it hot-swappable?
This depends on system configuration and installation design.
