Brand:Schneider PLC Item No.:ATS480C14Y Product Origin:France Product Dimensions:340 x 200 x 272 mm Product Weight:12.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

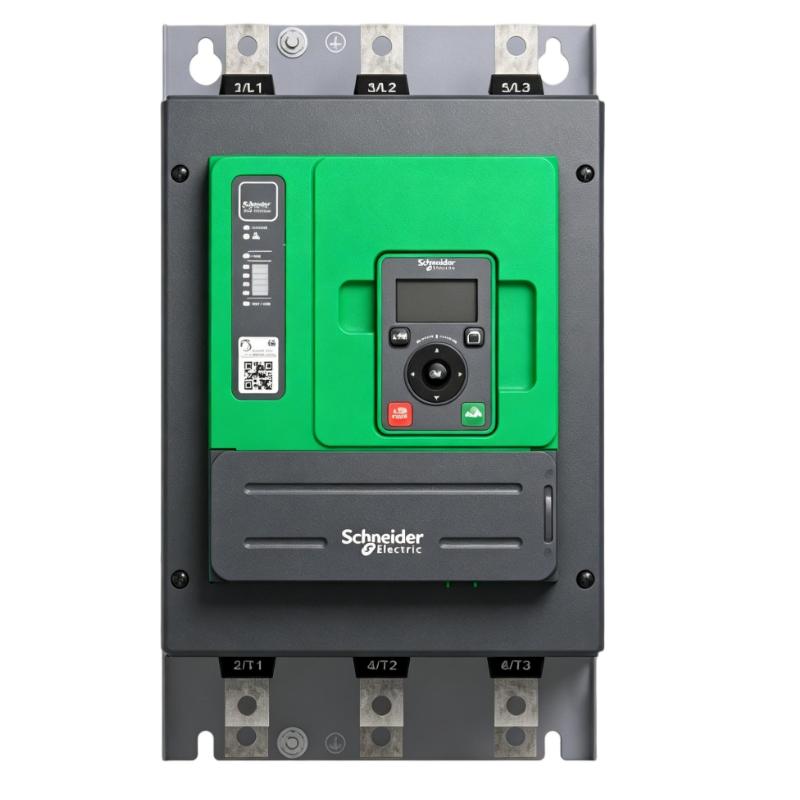

The Schneider ATS480C14Y Soft Starter is designed to provide controlled acceleration and deceleration of three-phase motors in industrial applications. By managing voltage during startup, it significantly reduces electrical stress on the power system and mechanical stress on driven equipment.
Technical Specifications
Parameter
Value
Model
ATS480C14Y
Product Line
Altistart 480
Product Type
Soft Starter
Rated Current
140 A
Supply Voltage
208–690 V AC
Control Supply Voltage
110–230 V AC
Frequency
50/60 Hz
Motor Power Range
37–110 kW (depending on voltage)
Communication
Modbus / Ethernet via optional modules
Protection Functions
Overload, phase loss, thermal protection
Cooling Method
Forced convection
Operating Temperature
-10°C to +60°C
Dimensions
340 × 200 × 272 mm
Weight
12.4 kg
Recommended Related Models
Model
Product Name
ATS480C11Y
Schneider Altistart 480 Soft Starter
ATS480C17Y
Schneider Altistart 480 Motor Controller
ATS22C21S6U
Schneider Altistart 22 Soft Starter
ATS48C14Y
Schneider Altistart 48 Heavy Duty Starter
Popular Related Models
Model
Product Name
ATS480D17Q
Schneider Altistart 480 High Performance Soft Starter
ATS480C25Y
Schneider Industrial Motor Soft Starter
ATS22C32S6U
Schneider Compact Soft Starter Series
ATS01N232QN
Schneider Basic Motor Soft Starter
Applications
• Designed for controlled starting and stopping of three-phase asynchronous motors in industrial automation systems.
• Suitable for pumps and pumping stations requiring reduced water hammer and smooth acceleration.
• Used in HVAC systems for controlled starting of fans, blowers, and air handling units.
• Applied in compressors where limiting starting torque helps protect mechanical components.
• Ideal for conveyor systems requiring smooth load handling and reduced mechanical stress.
Key Advantages
• Advanced torque control ensures smooth motor acceleration and stable operation under varying load conditions.
• Integrated bypass contactor reduces heat dissipation after start-up, improving energy efficiency.
• Wide voltage compatibility supports flexible deployment in global industrial systems.
• Built-in motor protection functions enhance operational safety and equipment reliability.
• Modular communication capability supports integration into modern industrial automation networks.
Technical FAQs
Q1: What is the rated current of this soft starter?
It is rated for 140 A under normal duty conditions.
Q2: What motor voltage range is supported?
It supports motors operating within a 208–690 V AC supply range.
Q3: Does it support heavy-duty industrial applications?
Yes, it is designed for both normal and demanding industrial process applications.
Q4: What type of motors can be used with this device?
It is intended for three-phase asynchronous induction motors.
Q5: Does it include built-in motor protection?
Yes, it includes overload and phase protection functions.
Q6: Can it be used in HVAC systems?
Yes, it is commonly used in HVAC fan and pump control systems.
Q7: Does it support communication interfaces?
Yes, it supports industrial communication protocols via optional modules such as Modbus and Ethernet-based systems.
Q8: What is the main advantage of soft starting?
It reduces inrush current and mechanical stress during motor startup.
Q9: Does it include a bypass function?
Yes, it includes an integrated bypass for improved efficiency after startup.
Q10: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial duty cycles.
