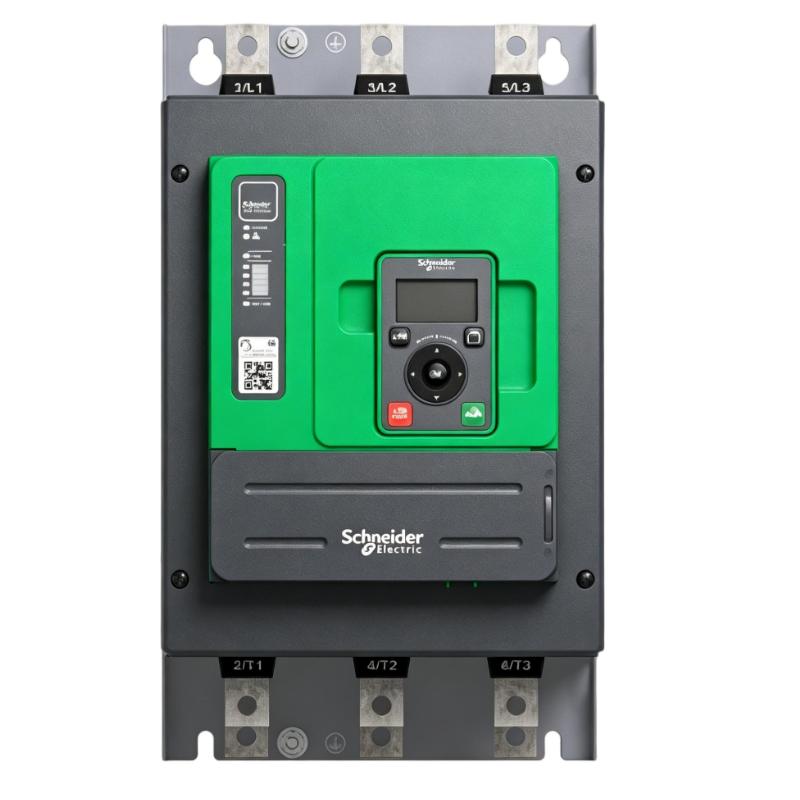

Schneider ATS480C17Y Soft Starter

Applications

• Designed for controlled starting and stopping of three-phase asynchronous motors in industrial automation systems.

• Suitable for pumps and pumping stations where reduced inrush current and smooth acceleration are required.

• Used in HVAC systems for fans, blowers, and air handling units to improve mechanical lifetime.

• Applied in compressor systems to reduce starting torque and protect mechanical components.

• Ideal for conveyor and material handling systems requiring smooth load transfer and controlled motor ramp-up.

Key Advantages

• Advanced torque control provides smooth motor acceleration and stable process behavior.

• Integrated bypass contactor reduces heat generation after startup, improving overall efficiency.

• Wide voltage range supports flexible deployment in global industrial environments.

• Built-in motor protection functions enhance system safety and equipment reliability.

• Modular communication capability enables integration into modern automation architectures.

Technical FAQs

Q1: What is the rated current of this soft starter?
It is rated for 170 A at standard duty conditions.

Q2: What voltage range does it support?
It supports three-phase supply from 208 to 690 V AC.

Q3: Is it suitable for heavy industrial applications?
Yes, it is designed for both standard and demanding industrial motor control applications.

Q4: What type of motor is compatible?
It is designed for three-phase asynchronous induction motors.

Q5: Does it include motor protection functions?
Yes, it includes overload, phase loss, and thermal protection functions.

Q6: Can it be used in HVAC systems?
Yes, it is commonly used in HVAC fan and pump applications.

Q7: Does it support communication protocols?
Yes, it supports Modbus and optional Ethernet-based industrial communication modules.

Q8: What is the benefit of soft starting?
It reduces electrical inrush current and mechanical stress during motor startup.

Q9: Does it include a bypass function?
Yes, it has an integrated bypass contactor to improve efficiency after starting.

Q10: Is it suitable for continuous operation?
Yes, it is designed for continuous-duty industrial environments.
