Brand:Schneider PLC Item No.:ATS480C25Y Product Origin:France Product Dimensions:380 × 277 × 320 mm Product Weight:18.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

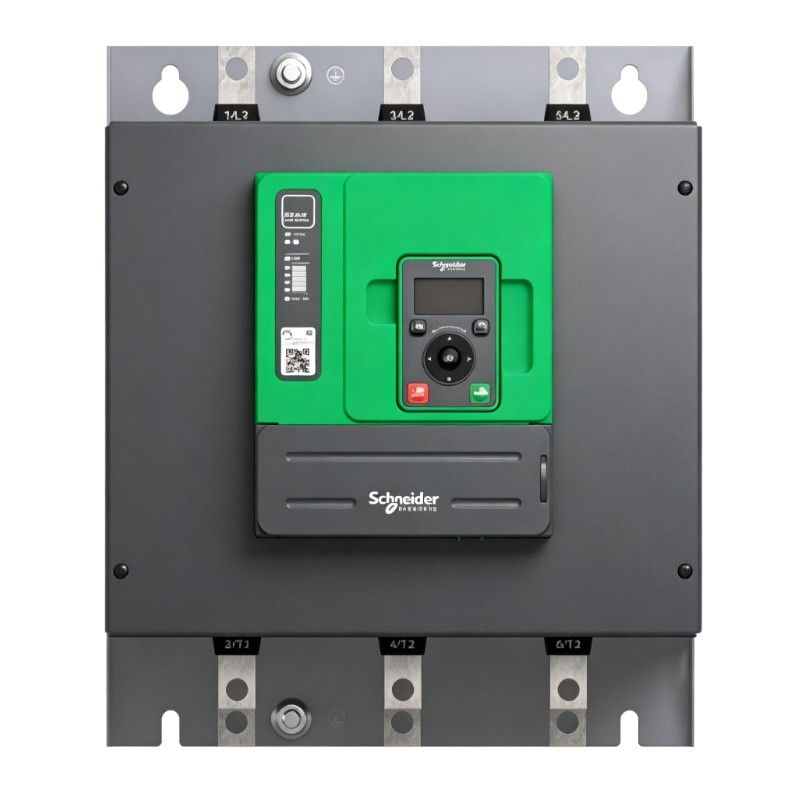

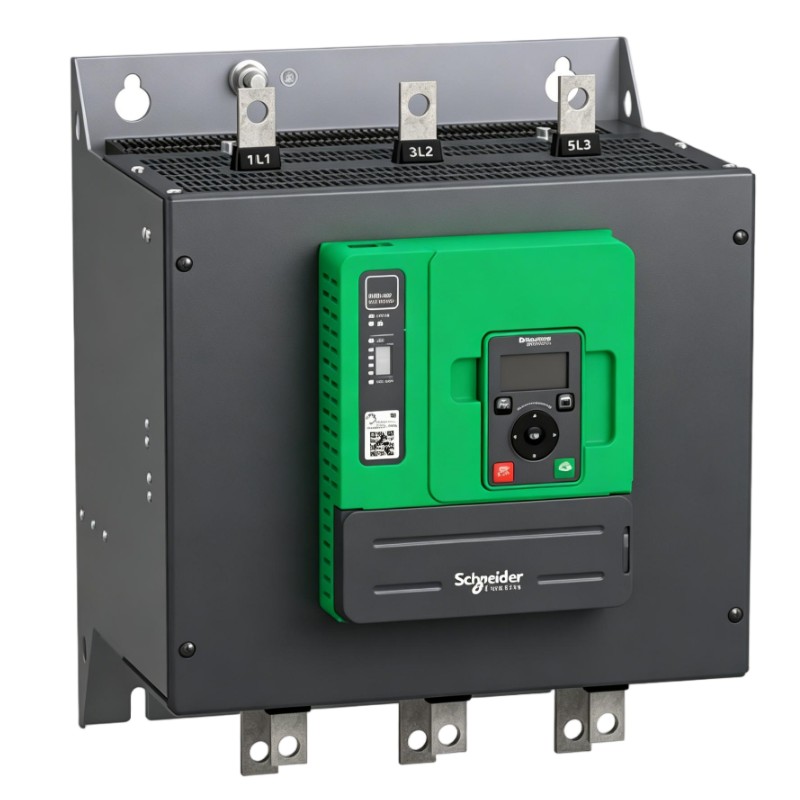

The Schneider ATS480C25Y Soft Starter is engineered for high-performance motor control in demanding industrial applications. It provides controlled acceleration and deceleration of three-phase motors by regulating voltage during startup, significantly reducing mechanical stress and electrical inrush current.
Technical Specifications
Parameter
Value
Model
ATS480C25Y
Product Line
Altistart 480
Product Type
Soft Starter
Rated Current
250 A
Supply Voltage
208–690 V AC
Control Supply Voltage
110–230 V AC
Frequency
50/60 Hz
Motor Power Range
75–250 kW (depending on voltage)
Communication
Modbus / Ethernet via optional modules
Protection Functions
Overload, phase loss, thermal protection
Cooling Method
Forced convection
Operating Temperature
-10°C to +60°C
Dimensions
380 × 277 × 320 mm
Weight
18.2 kg
Recommended Related Models
Model
Product Name
ATS480C17Y
Schneider Altistart 480 Soft Starter
ATS480C21Y
Schneider Heavy Duty Soft Starter
ATS480C14Y
Schneider Altistart 480 Compact Soft Starter
ATS22C32S6U
Schneider Altistart 22 Soft Starter
Popular Related Models
Model
Product Name
ATS480D17Q
Schneider Advanced Soft Starter Series
ATS48C25Q
Schneider Altistart 48 Heavy Duty Starter
ATS22C21S6U
Schneider Industrial Soft Starter
ATS01N232QN
Schneider Basic Motor Soft Starter
Applications
• Designed for controlled starting and stopping of high-power three-phase asynchronous motors in industrial systems.
• Suitable for pumps and pumping stations requiring smooth acceleration and reduced water hammer effects.
• Used in HVAC systems for large fans, chillers, and air handling units to improve mechanical lifetime.
• Applied in compressor systems where controlled torque reduces mechanical and electrical stress.
• Ideal for heavy-duty conveyor and material handling systems requiring stable motor acceleration under high load.
Key Advantages
• Advanced torque control ensures smooth motor acceleration and stable operation under heavy load conditions.
• Integrated bypass contactor reduces heat loss and improves system efficiency after startup.
• Wide voltage range supports flexible deployment in global industrial environments.
• Built-in motor protection enhances operational safety and reduces equipment downtime.
• Modular communication options enable integration into modern industrial automation architectures.
Technical FAQs
Q1: What is the rated current of the ATS480C25Y?
It is rated at 250 A under normal duty conditions.
Q2: What voltage range does it support?
It supports a three-phase supply range of 208–690 V AC.
Q3: What type of motors is it designed for?
It is designed for three-phase asynchronous induction motors.
Q4: Is it suitable for heavy industrial applications?
Yes, it is designed for both normal and heavy-duty industrial process applications.
Q5: Does it include motor protection functions?
Yes, it includes overload, phase loss, and thermal protection functions.
Q6: Can it be used in HVAC systems?
Yes, it is commonly used in HVAC fans, pumps, and chiller systems.
Q7: Does it support communication protocols?
Yes, it supports Modbus and optional industrial Ethernet communication modules.
Q8: What is the benefit of soft starting?
It reduces inrush current and mechanical stress during motor startup.
Q9: Does it include a bypass function?
Yes, it includes an integrated bypass contactor to improve efficiency after startup.
Q10: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial-duty environments.
