Brand:Schneider PLC Item No.:ATS480C32Y Product Origin:France Product Dimensions:380 × 277 × 320 mm Product Weight:18.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

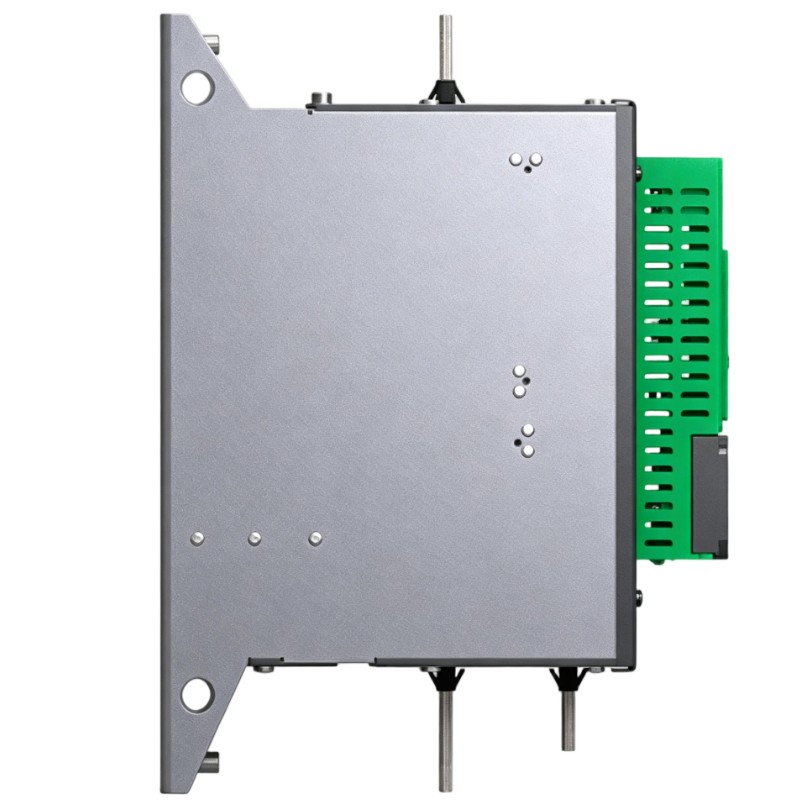

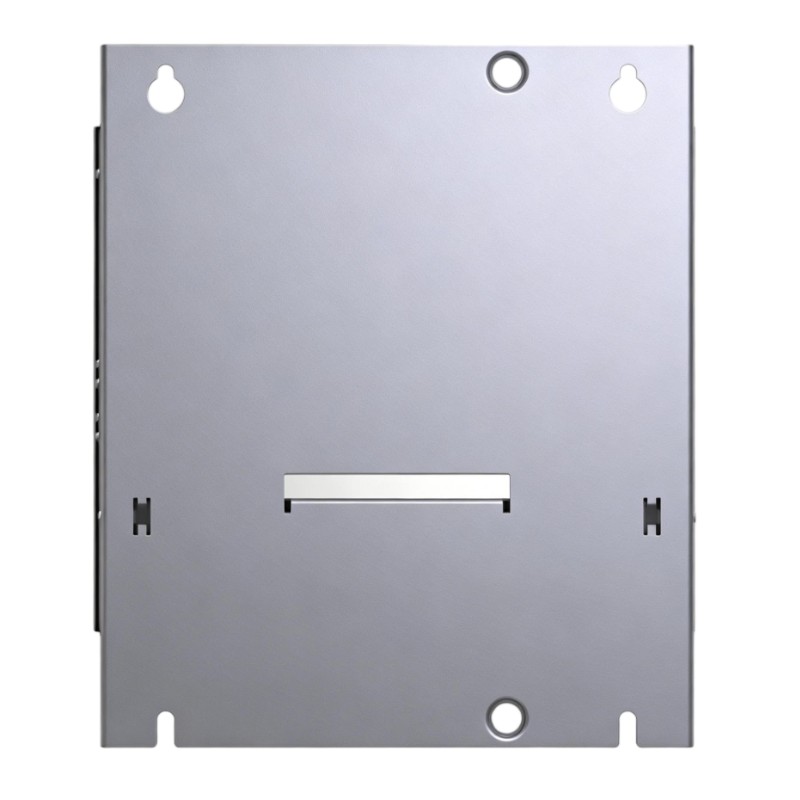

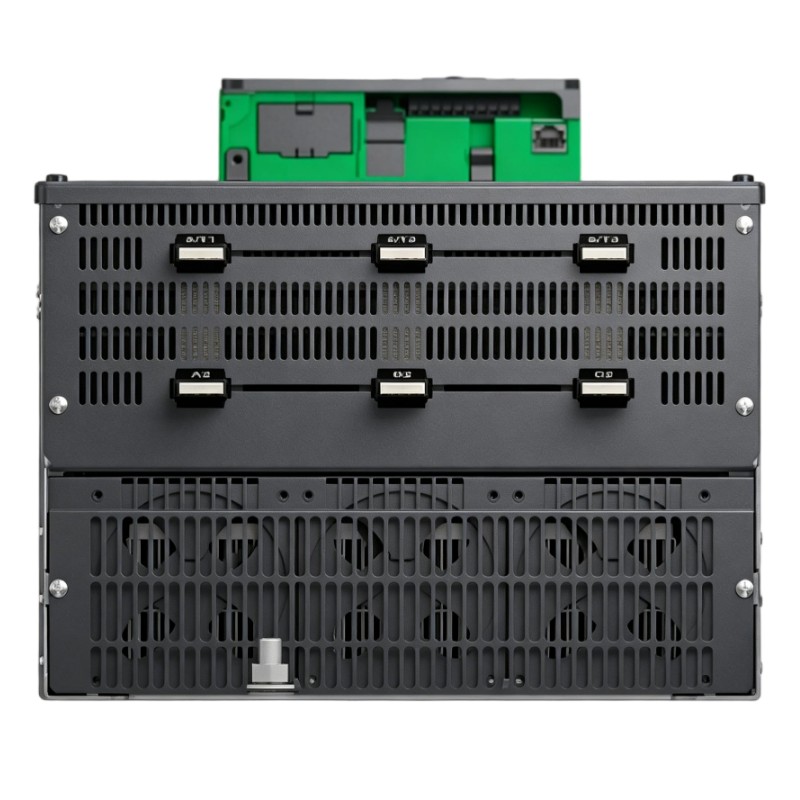

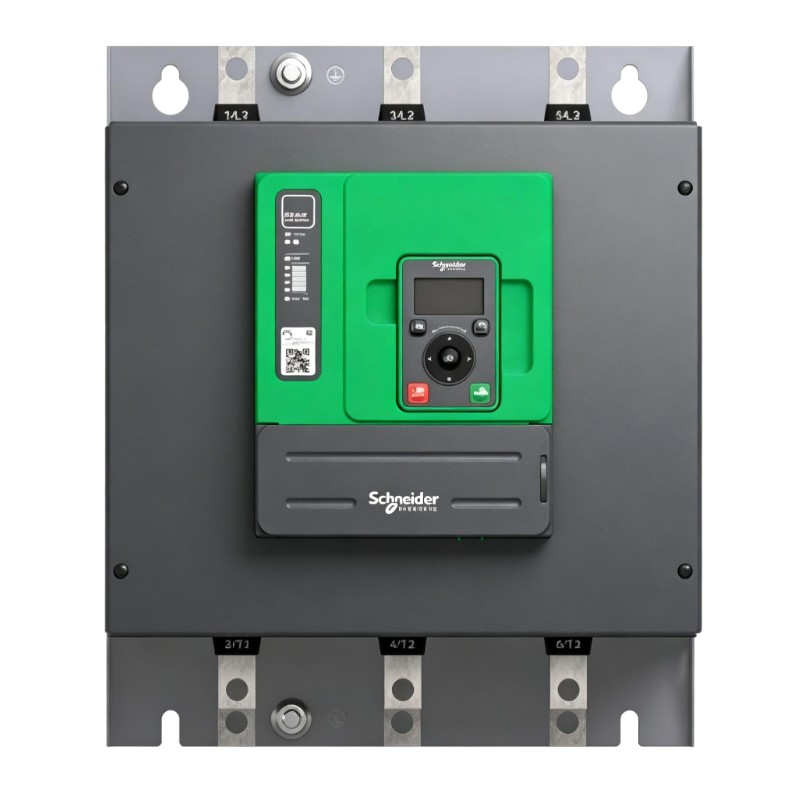

The Schneider ATS480C32Y Soft Starter is a high-performance motor control device designed for smooth starting and stopping of three-phase asynchronous motors in demanding industrial environments. By controlling voltage during startup, it significantly reduces electrical inrush current and mechanical stress on driven equipment.
Technical Specifications
Parameter
Value
Model
ATS480C32Y
Product Line
Altistart 480
Product Type
Soft Starter
Rated Current
320 A
Supply Voltage
208–690 V AC
Control Supply Voltage
110–230 V AC
Frequency
50/60 Hz
Motor Power Range
90–315 kW (depending on voltage)
Communication
Modbus / Ethernet via optional modules
Protection Functions
Overload, phase loss, thermal protection
Cooling Method
Forced convection
Operating Temperature
-10°C to +60°C
Dimensions
380 × 277 × 320 mm
Weight
18.2 kg
Recommended Related Models
Model
Product Name
ATS480C25Y
Schneider Altistart 480 Soft Starter
ATS480C21Y
Schneider Heavy Duty Soft Starter
ATS480C17Y
Schneider Altistart 480 Soft Starter
ATS480D17Q
Schneider Advanced Soft Starter Series
Popular Related Models
Model
Product Name
ATS22C32S6U
Schneider Altistart 22 Soft Starter
ATS48C32Q
Schneider Altistart 48 Heavy Duty Starter
ATS01N232QN
Schneider Basic Motor Soft Starter
ATS480C14Y
Schneider Altistart 480 Compact Soft Starter
Applications
• Designed for controlled starting and stopping of high-power three-phase asynchronous motors in industrial automation systems.
• Suitable for pumps and pumping stations requiring smooth acceleration and reduced water hammer effects.
• Used in HVAC systems for large fans, chillers, and air handling units in industrial facilities.
• Applied in compressor systems where controlled torque improves mechanical reliability and reduces stress.
• Ideal for heavy-duty conveyors and material handling systems operating under high load conditions.
Key Advantages
• Advanced torque control system ensures smooth motor acceleration and stable operation under heavy load.
• Integrated bypass contactor reduces heat generation after startup, improving overall system efficiency.
• Wide voltage range supports flexible deployment across global industrial power systems.
• Built-in motor protection enhances operational safety and reduces unplanned downtime.
• Modular communication capability enables integration with modern industrial automation networks.
Technical FAQs
Q1: What is the rated current of this model?
It is rated for 320 A under normal duty operation.
Q2: What voltage range does it support?
It supports a three-phase supply range from 208 to 690 V AC.
Q3: Is it suitable for heavy industrial applications?
Yes, it is designed for both standard and heavy-duty industrial motor control applications.
Q4: What type of motor is compatible?
It is designed for three-phase asynchronous induction motors.
Q5: Does it include motor protection functions?
Yes, it includes overload, phase loss, and thermal protection functions.
Q6: Can it be used in HVAC systems?
Yes, it is widely used in HVAC fan, pump, and compressor systems.
Q7: Does it support communication protocols?
Yes, it supports Modbus and optional Ethernet-based industrial communication modules.
Q8: What is the main benefit of soft starting?
It reduces inrush current and mechanical stress during motor startup.
Q9: Does it include a bypass function?
Yes, it includes an integrated bypass contactor to improve efficiency after startup.
Q10: Is it suitable for continuous operation?
Yes, it is designed for continuous-duty industrial environments.
