Brand:Schneider PLC Item No.:ATS480C41Y Product Origin:France Product Dimensions:670 x 400 x 314 mm Product Weight:51.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

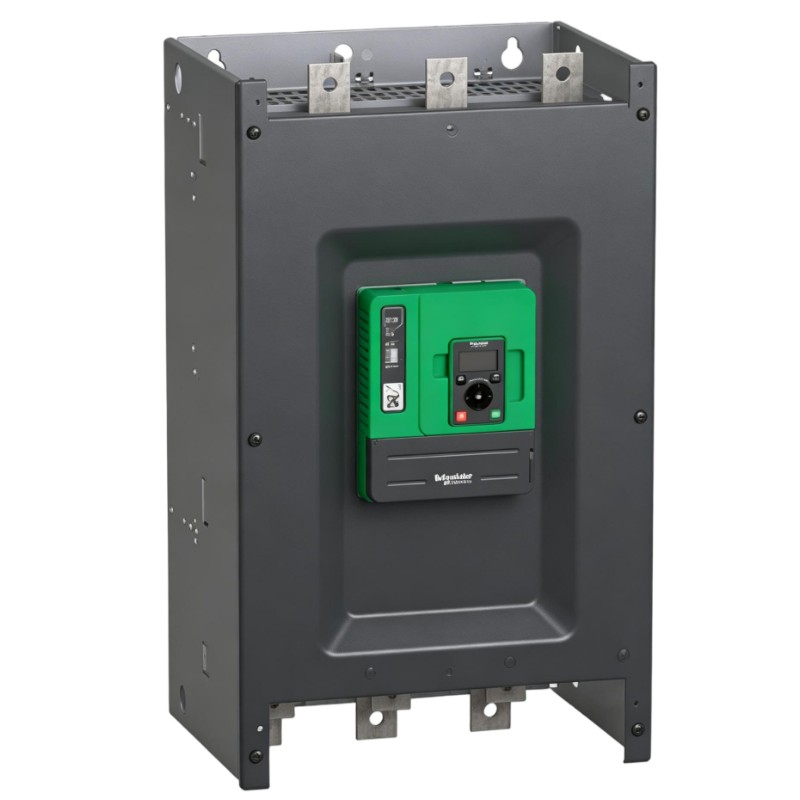

The Schneider ATS480C41Y Soft Starter is a high-capacity motor control device designed for smooth starting and stopping of large three-phase asynchronous motors in demanding industrial applications. By controlling voltage during startup, it significantly reduces electrical inrush current and mechanical stress on driven equipment.
Technical Specifications
Parameter
Value
Model
ATS480C41Y
Product Line
Altistart 480
Product Type
Soft Starter
Rated Current
410 A
Supply Voltage
208–690 V AC
Control Supply Voltage
110–230 V AC
Frequency
50/60 Hz
Motor Power Range
110–400 kW (depending on voltage)
Communication
Modbus / Ethernet via optional modules
Protection Functions
Overload, phase loss, thermal protection

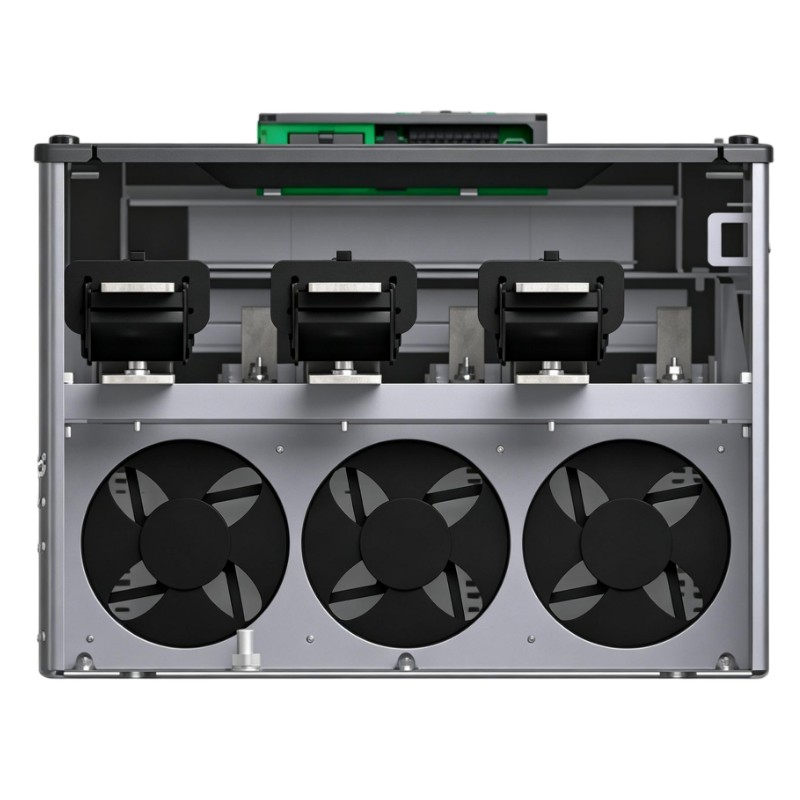

Cooling Method
Forced convection
Operating Temperature
-10°C to +60°C
Dimensions
670 × 400 × 314 mm
Weight
51.4 kg
Recommended Related Models
Model
Product Name
ATS480C32Y
Schneider Altistart 480 Soft Starter
ATS480C25Y
Schneider Altistart 480 Heavy Duty Soft Starter
ATS480D17Q
Schneider Advanced Soft Starter Series
ATS22C32S6U
Schneider Compact Soft Starter
Popular Related Models
Model
Product Name
ATS48C41Q
Schneider Altistart 48 Heavy Duty Starter
ATS480C21Y
Schneider Altistart 480 Mid Range Soft Starter
ATS01N232QN
Schneider Basic Motor Soft Starter
ATS22C21S6U
Schneider Industrial Soft Starter Series
Applications
• Designed for controlled starting and stopping of high-power three-phase asynchronous motors in heavy industrial systems.
• Suitable for large pumping stations requiring smooth acceleration and reduced hydraulic shock.
• Used in HVAC infrastructure for high-capacity chillers, large fans, and air handling systems.
• Applied in compressor systems where controlled torque reduces mechanical stress and improves equipment lifetime.
• Ideal for heavy-duty conveyors, crushers, and material handling systems operating under high inertia loads.
Key Advantages
• Advanced torque control ensures smooth motor acceleration and stable performance under high load conditions.
• Integrated bypass contactor reduces thermal losses after startup, improving energy efficiency.
• Wide voltage range enables flexible deployment across global industrial power systems.
• Built-in motor protection functions enhance operational safety and reduce unplanned downtime.
• Designed for digital integration with modern industrial automation and monitoring architectures.
Technical FAQs
Q1: What is the rated current of the ATS480C41Y?
It is rated for 410 A under normal duty operation.
Q2: What supply voltage range does it support?
It supports a three-phase supply range of 208–690 V AC.
Q3: What type of motor is compatible?
It is designed for three-phase asynchronous induction motors.
Q4: Is it suitable for heavy industrial applications?
Yes, it is designed for process industries, infrastructure systems, and heavy-duty machinery.
Q5: Does it include motor protection functions?
Yes, it includes overload, phase loss, and thermal protection functions.
Q6: Can it be used in HVAC systems?
Yes, it is widely used in large HVAC fan, pump, and chiller applications.
Q7: Does it support communication protocols?
Yes, it supports Modbus and optional industrial Ethernet communication modules.
Q8: What is the main benefit of soft starting?
It reduces inrush current and mechanical stress during motor startup.
Q9: Does it include a bypass function?
Yes, it includes an integrated bypass contactor to improve efficiency after startup.
Q10: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial-duty environments.
