Brand:Schneider PLC Item No.:ATS480C66Y Product Origin:France Product Dimensions:670 x 400 x 314 mm Product Weight:51.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

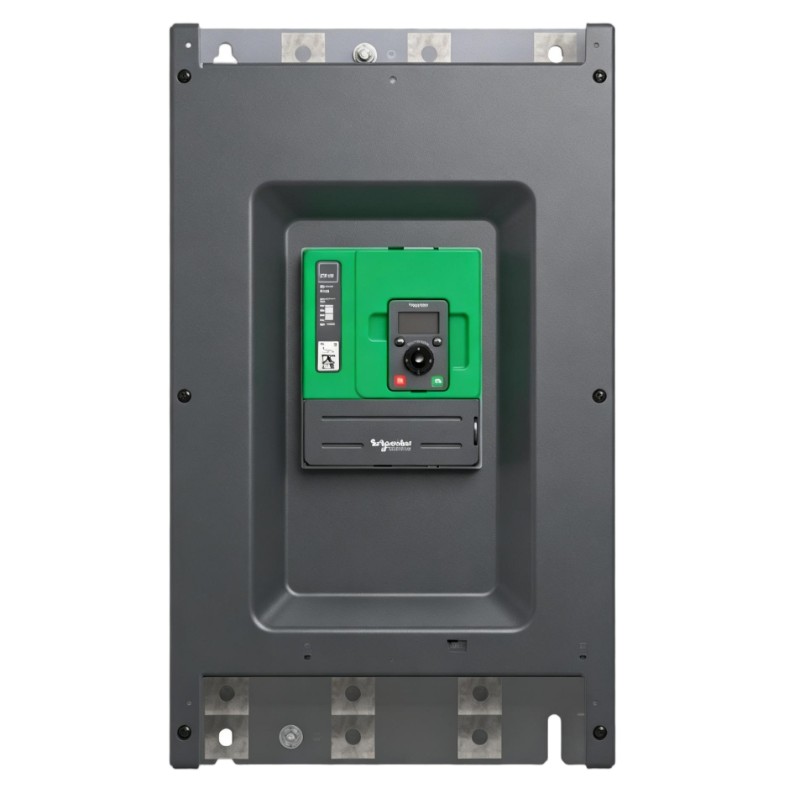

The Schneider ATS480C66Y Soft Starter is a high-capacity motor control device designed for smooth starting and stopping of large three-phase asynchronous motors. By regulating voltage during startup, it significantly reduces electrical inrush current and mechanical stress on driven equipment, improving system reliability and equipment lifespan.
Technical Specifications
Parameter
Value
Model
ATS480C66Y
Product Line
Altistart 480
Product Type
Soft Starter
Rated Current
660 A
Supply Voltage
208–690 V AC
Control Supply Voltage
110–230 V AC
Frequency
50/60 Hz
Motor Power Range
up to 630 kW (depending on voltage)
Communication
Modbus / Ethernet via optional modules
Protection Functions
Overload, phase loss, thermal protection
Cooling Method
Forced convection
Operating Temperature
-15°C to +60°C
Dimensions
670 × 400 × 314 mm
Weight
51.4 kg
Recommended Related Models
Model
Product Name
ATS480C59Y
Schneider Altistart 480 Soft Starter
ATS480C48Y
Schneider High Power Soft Starter
ATS480C41Y
Schneider Heavy Duty Soft Starter
ATS480C32Y
Schneider Industrial Soft Starter
Popular Related Models
Model
Product Name
ATS480C25Y
Schneider Altistart 480 Soft Starter
ATS22C32S6U
Schneider Compact Soft Starter Series
ATS48C66Q
Schneider Altistart 48 Heavy Duty Starter
ATS01N232QN
Schneider Basic Motor Soft Starter
Applications
• Designed for controlled starting and stopping of high-power three-phase asynchronous motors in heavy industrial environments.
• Suitable for large pumping stations requiring smooth acceleration and reduced hydraulic shock (water hammer control).
• Used in HVAC systems for high-capacity chillers, industrial ventilation fans, and air handling units.
• Applied in compressor systems where controlled torque improves mechanical reliability and reduces wear.
• Ideal for heavy-duty conveyors, crushers, and process machinery operating under high inertia loads.
Key Advantages
• Advanced torque control ensures smooth motor acceleration and stable performance under demanding load conditions.
• Integrated bypass contactor reduces thermal losses after startup, improving overall energy efficiency.
• Wide voltage range supports flexible deployment in global industrial power systems.
• Built-in motor protection functions enhance operational safety and reduce unexpected downtime.
• Digital architecture enables seamless integration with modern automation and monitoring systems.
Technical FAQs
Q1: What is the rated current of the ATS480C66Y?
It is rated for 660 A under normal duty operation at 40°C.
Q2: What supply voltage range does it support?
It supports a three-phase supply range of 208–690 V AC.
Q3: What type of motor is compatible?
It is designed for three-phase asynchronous induction motors.
Q4: Is it suitable for heavy industrial applications?
Yes, it is engineered for process industries, infrastructure systems, and heavy-duty machinery.
Q5: Does it include motor protection functions?
Yes, it includes overload, phase loss, and thermal protection functions.
Q6: Can it be used in HVAC systems?
Yes, it is widely used in large HVAC, pumping, and compressor applications.
Q7: Does it support communication protocols?
Yes, it supports Modbus and optional Ethernet-based communication modules.
Q8: What is the main benefit of soft starting?
It reduces inrush current and mechanical stress during motor startup.
Q9: Does it include a bypass function?
Yes, it includes an integrated bypass contactor to improve efficiency after startup.
Q10: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial-duty environments.
