Brand:Schneider PLC Item No.:ATV12H018M2 Product Origin:France Product Dimensions:72 x 143 x 102.2 mm Product Weight:0.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

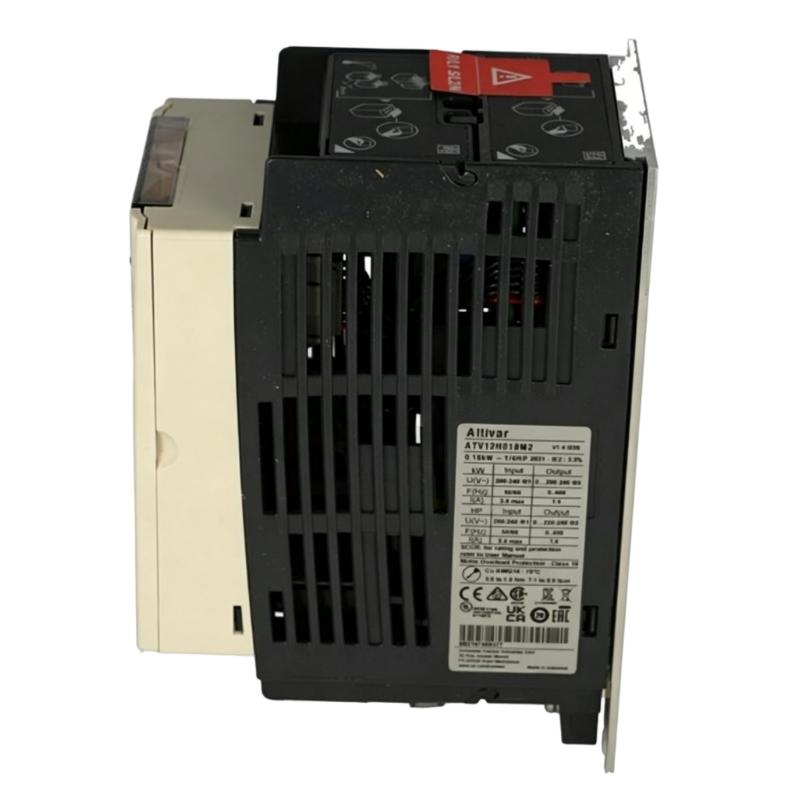

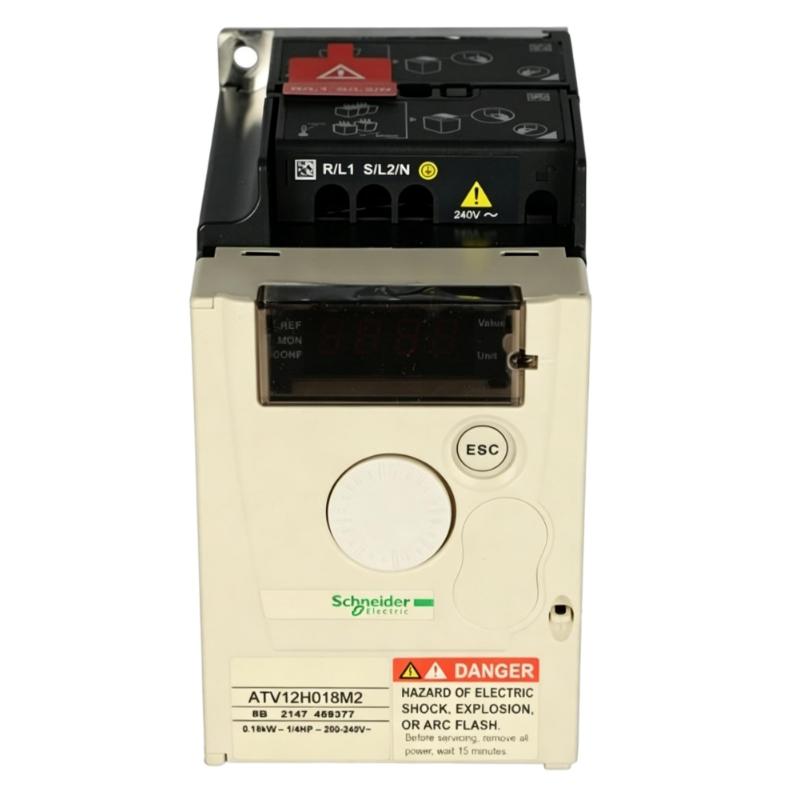

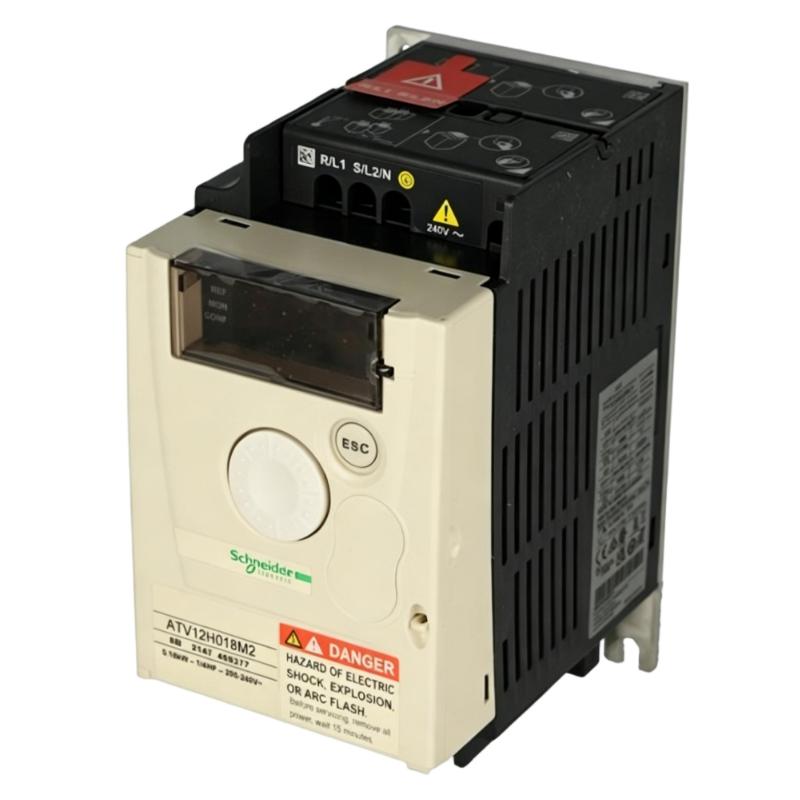

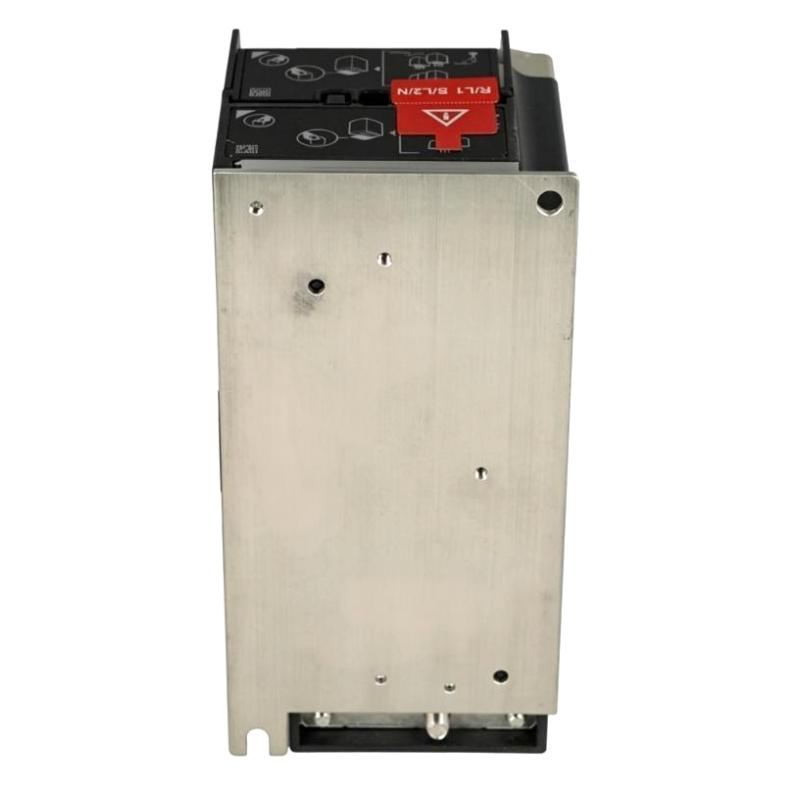

The Schneider ATV12H018M2 Frequency Converter is a compact variable speed drive designed for simple motor control applications in industrial and commercial environments. It delivers reliable speed regulation for small three-phase motors, helping improve energy efficiency and process stability.
Technical Specifications
Parameter
Value
Model
ATV12H018M2
Product Series
Altivar 12
Product Type
Frequency Converter / VFD
Supply Voltage
200–240 V AC (single-phase input)
Output Voltage
0–240 V AC (three-phase output)
Rated Power
0.18 kW
Output Current
1.4 A
Control Method
V/f Control
Communication
Modbus RS485
Protection Functions
Overload, short-circuit, thermal protection
Switching Frequency
Up to 4 kHz
Operating Temperature
-10°C to +60°C
Protection Rating
IP20
Dimensions
143 × 72 × 102.2 mm
Weight
0.7 kg
Recommended Related Models
Model
Product Name
ATV12H037M2
Schneider Altivar 12 Frequency Converter
ATV12H075M2
Schneider Altivar 12 Variable Speed Drive
ATV12P018M2
Schneider Altivar 12 Compact Drive Variant
ATV320U06M2
Schneider Altivar 320 Compact VFD
Popular Related Models
Model
Product Name
ATV12H018F1
Schneider Altivar 12 Frequency Converter
ATV12H055M2
Schneider Altivar 12 Motor Drive
ATV320U04M2
Schneider Altivar 320 Compact Drive
ATV310H037N4
Schneider Altivar 310 Frequency Converter
Applications
• Designed for simple industrial and commercial motor speed control in compact automation systems.
• Suitable for small pumps used in water circulation, cooling loops, and light industrial fluid handling.
• Used in HVAC equipment such as small fans, ventilation units, and air extraction systems.
• Applied in conveyor systems for packaging, light material transport, and sorting equipment.
• Ideal for OEM machinery requiring basic variable speed control with stable performance.
Key Advantages
• Provides smooth motor speed regulation through efficient V/f control for stable operation.
• Integrated Modbus RS485 communication enables easy integration into PLC-based automation systems.
• Compact drive design simplifies installation in space-constrained control cabinets.
• Built-in protection functions improve motor safety and reduce operational risks.
• User-friendly parameter structure allows fast commissioning and straightforward setup.
Technical FAQs
Q1: What type of motor is compatible with this drive?
It is designed for three-phase asynchronous motors with single-phase 200–240 V input supply.
Q2: Does it support communication with PLC systems?
Yes, it supports Modbus RS485 communication for industrial integration.
Q3: What control method does this frequency converter use?
It uses voltage/frequency (V/f) control for basic and stable motor speed regulation.
Q4: Is it suitable for continuous operation?
Yes, it is designed for continuous-duty industrial and commercial applications.
Q5: Does it include built-in motor protection?
Yes, it includes protection against overload, overheating, and phase-related faults.
Q6: Can it be used for pump applications?
Yes, it is commonly used in small pump systems for flow and pressure control.
Q7: Does it support braking functions?
It supports basic deceleration control; external braking accessories may be required depending on load.
Q8: Is it suitable for HVAC systems?
Yes, it is widely used in small fans and ventilation control systems.
Q9: What is the installation environment requirement?
It is designed for indoor control cabinet installation with appropriate ventilation.
Q10: Does it require complex programming?
No, it is designed for simple parameter setup and fast commissioning.
