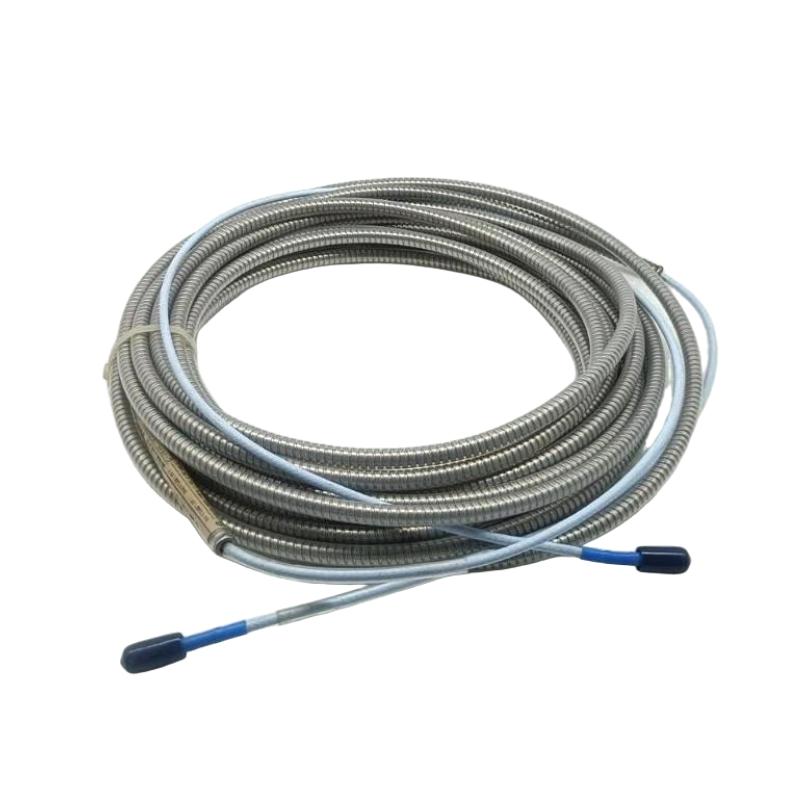

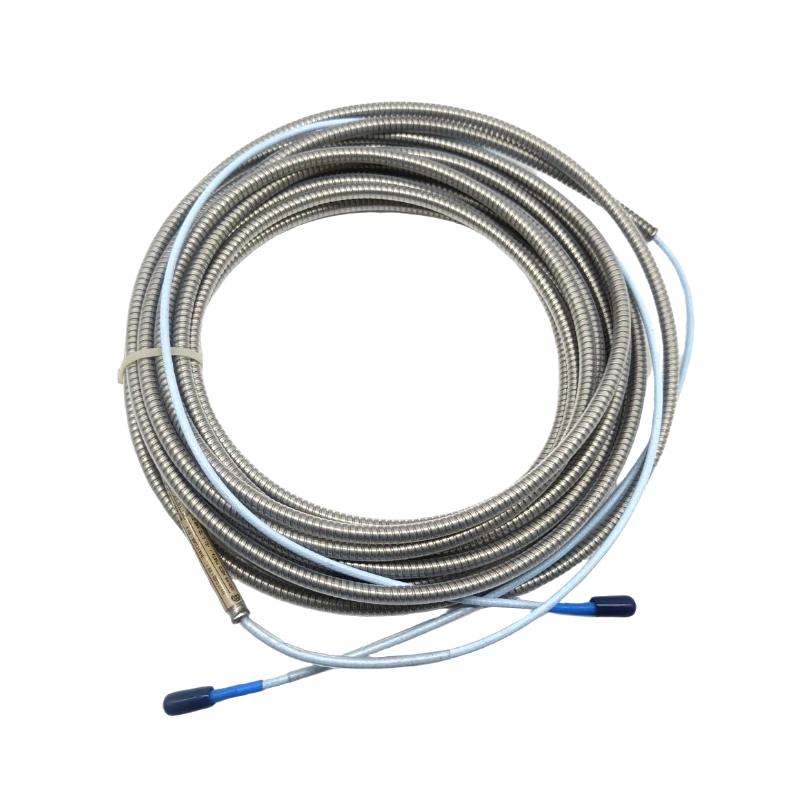

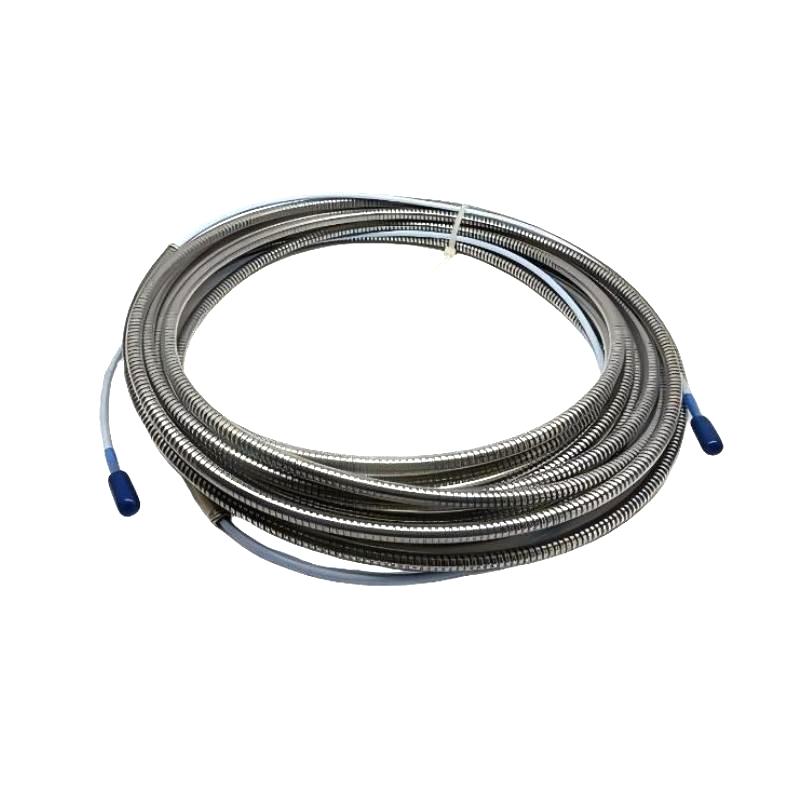

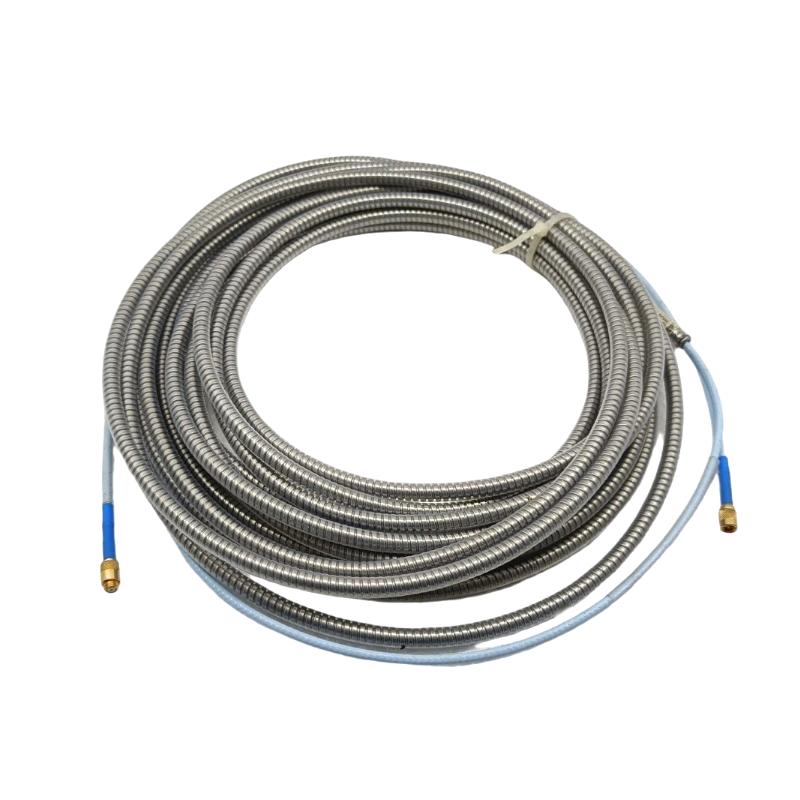

Bently Nevada 330130-085-11-05 3300 XL Standard Extension Cable

Applications

This extension cable is used in vibration monitoring systems where proximity probes need to be connected to the monitoring module over a fixed installation distance. It is typically applied in rotating machinery protection setups such as steam turbines, compressors, pumps, and other critical industrial drive systems.

In real-world installations, it is usually routed through cable trays or protective conduits to maintain stable signal transmission in environments with continuous vibration and electrical noise.

Advantages

The key strength of this cable is stable signal integrity over long operating periods. In vibration monitoring, even small inconsistencies in transmission can affect measurement reliability, so consistent shielding and secure connection design are important.

It is built for industrial conditions where mechanical stress and electromagnetic interference are common. Once installed correctly, it generally operates as a long-life, low-maintenance component within the monitoring chain.

Another practical benefit is system-level compatibility with the 3300 XL architecture, allowing straightforward integration without additional interface components.

Technical FAQs (10 Technical Questions)

Q1: What is the function of this cable in the system?
It connects the proximity probe to the monitoring instrumentation for signal transmission.

Q2: Is it an active component?
No, it is a passive signal cable.

Q3: Does it affect measurement accuracy?
Indirectly yes—signal stability depends on proper cable condition and installation.

Q4: Can it be used interchangeably with other series cables?
No, it should be used within the specified 3300 XL system configuration.

Q5: What type of signal does it carry?
It carries vibration and displacement measurement signals from the probe system.

Q6: Is shielding included in the design?
Yes, it is designed with industrial shielding to reduce interference.

Q7: Does installation require special tools?
Standard industrial installation tools and proper torque control for connectors are typically required.

Q8: Is it suitable for harsh environments?
Yes, it is intended for industrial machinery environments with vibration and electrical noise.

Q9: Does it require regular replacement?
It is generally a long-life component unless physically damaged or degraded.

Q10: Is calibration needed after installation?
System verification is recommended after installation or replacement.
