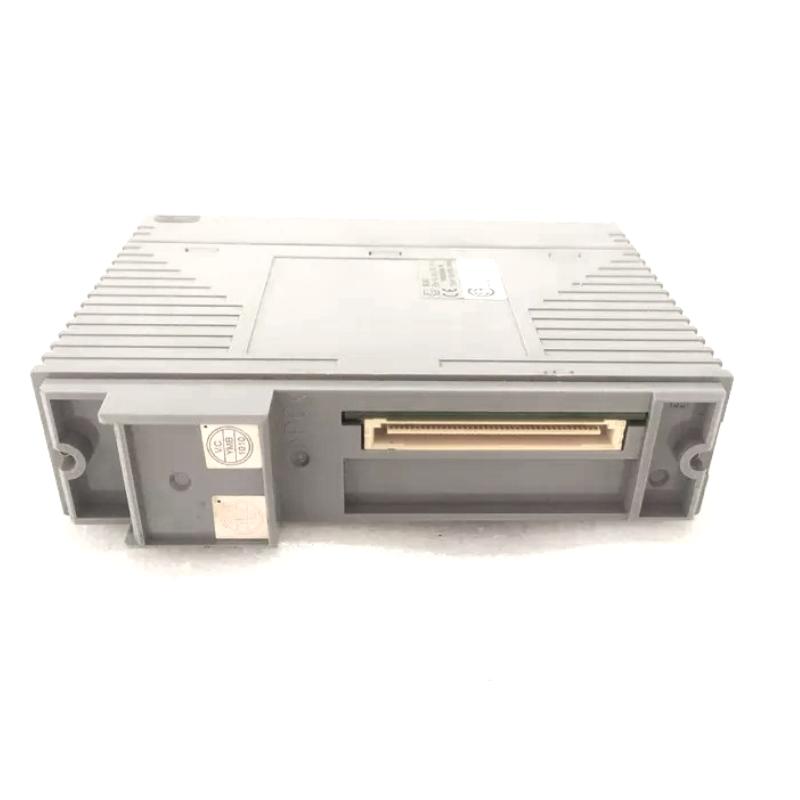

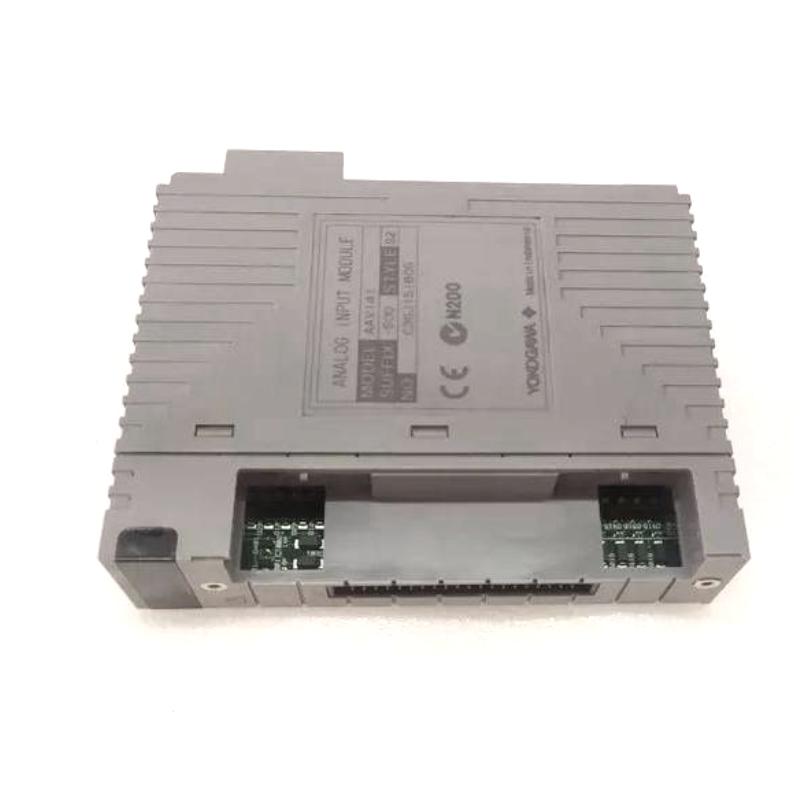

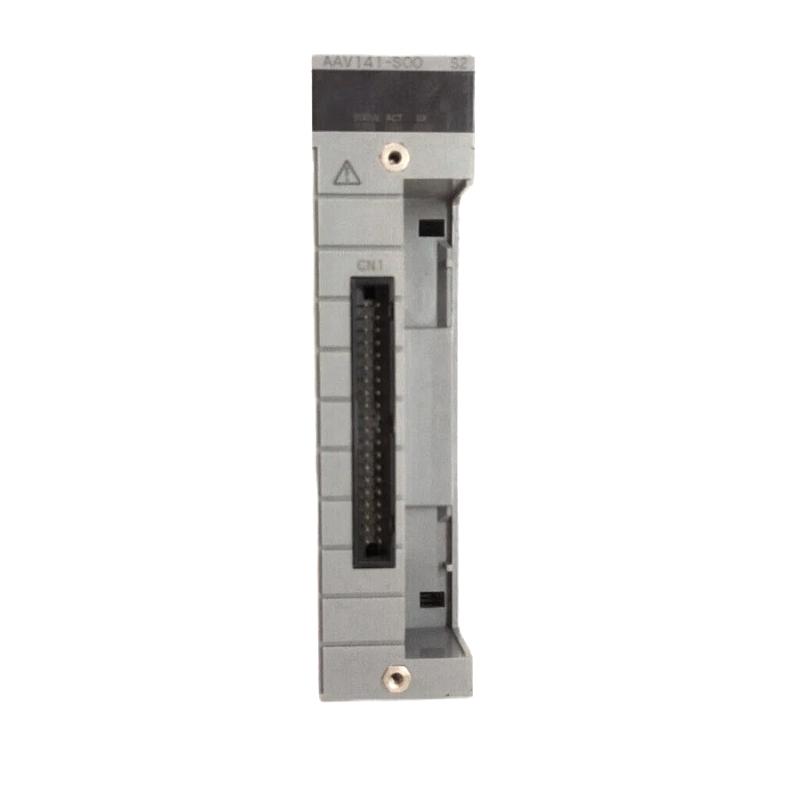

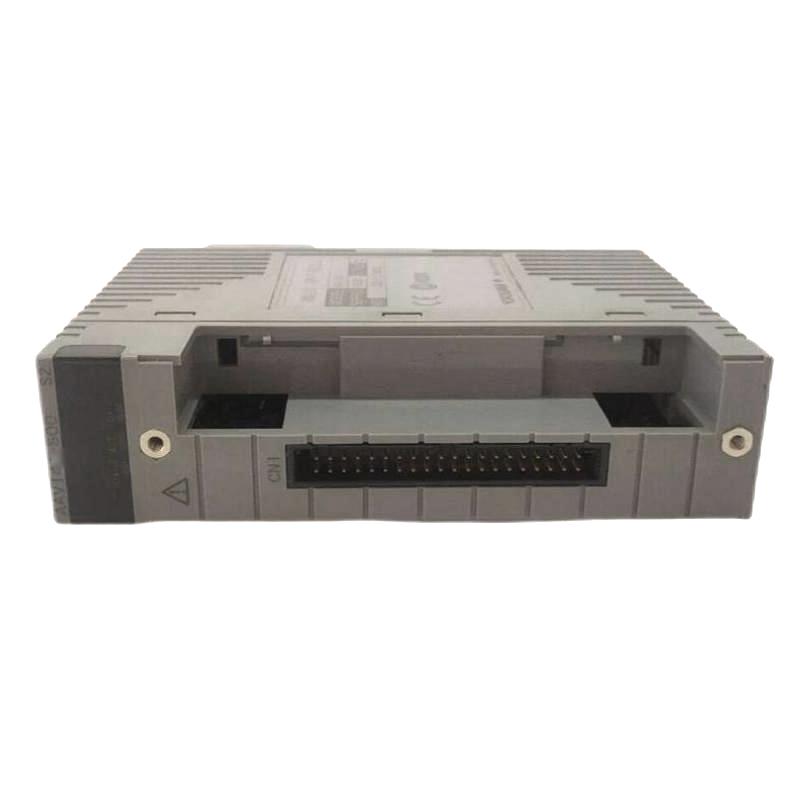

The Yokogawa AAV142‑S00 is a high‑performance analog input/output signal module designed to bridge field instrumentation and modern control systems with accuracy and resilience. Engineered for demanding industrial environments, this module captures and conditions analog data from sensors such as thermocouples, RTDs, voltage, and current sources, then delivers standardized outputs compatible with PLCs, DCS, or SCADA systems. Its combination of precision, noise immunity, and flexible installation makes the AAV142‑S00 a dependable choice for commercial automation, advanced process control, and mission‑critical measurement systems that demand consistent and trustworthy data.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Yokogawa AAV142‑S00 |
| Module Type | Analog Input/Output Signal Module |
| Input Signal Types | Thermocouple, RTD, Voltage, Current, mV |
| Output Signal Types | 4–20 mA DC / 0–10 V DC |
| Resolution | Equivalent to 16‑bit |
| Accuracy | ±0.1 % full scale |
| Electrical Isolation | Galvanic isolation between I/O and system |
| Response Time | ≤100 ms (typical) |
| Operating Temperature Range | −20 °C to +60 °C |
| Mounting Options | DIN Rail / Panel Mount |
| Dimensions (W×H×D) | 45 mm × 120 mm × 100 mm |
| Weight | 0.34 kg |
