Brand:Schneider PLC Item No.:ATV12H055M2 Product Origin:France Product Dimensions:72 x 143 x 131.2 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

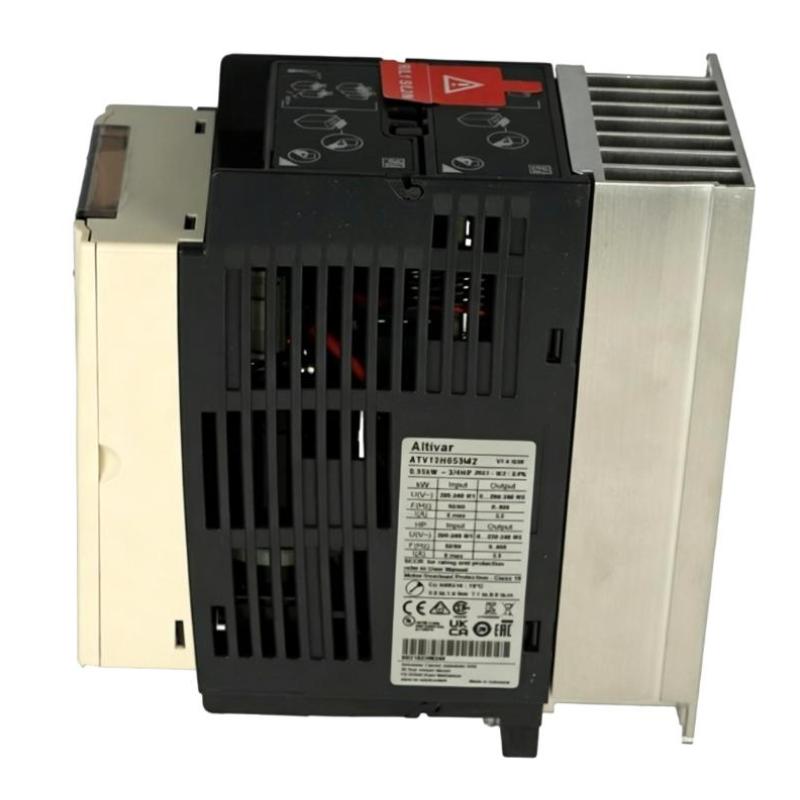

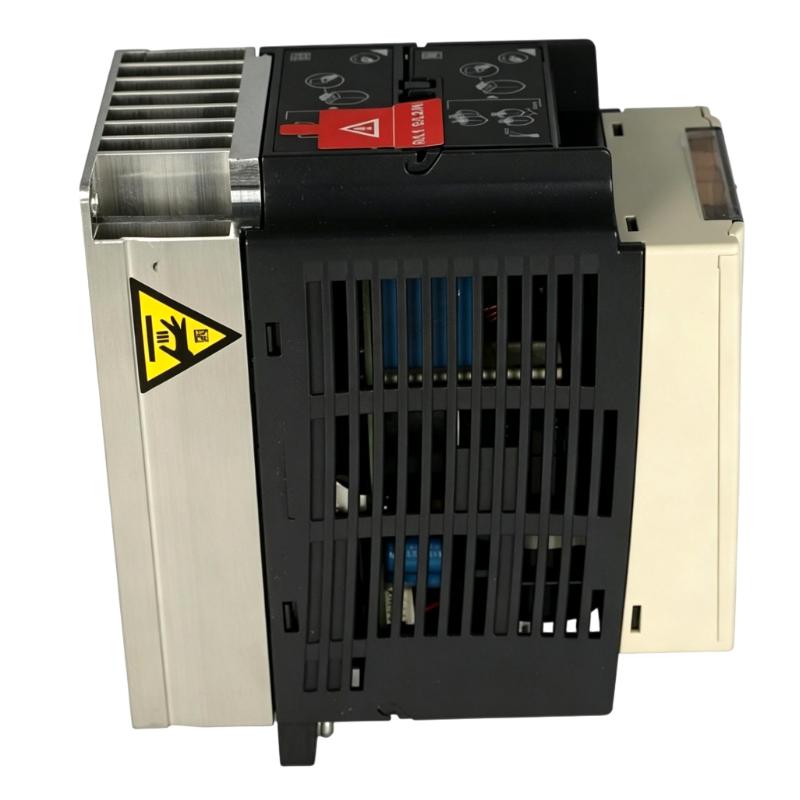

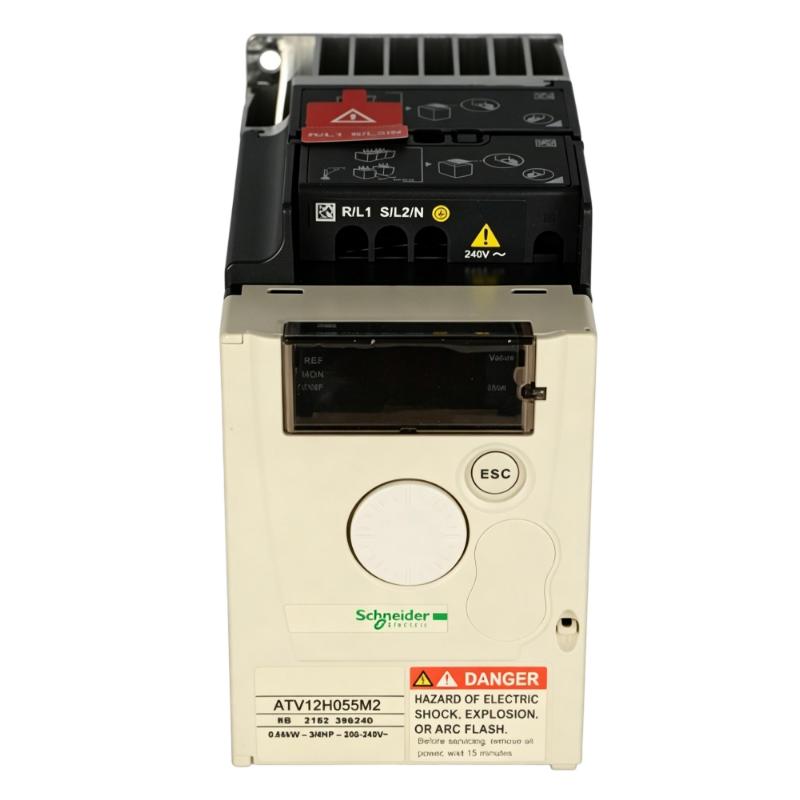

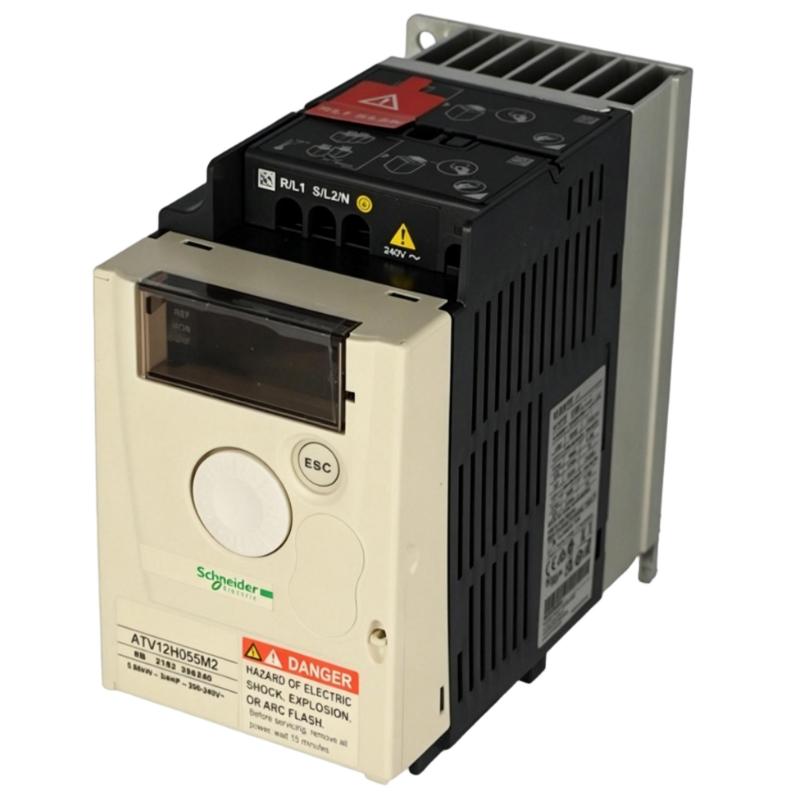

The Schneider ATV12H055M3 Frequency Converter is a compact variable speed drive designed for simple and reliable motor control in industrial and commercial applications. It provides efficient speed regulation for small three-phase motors, helping improve energy efficiency, process stability, and equipment lifespan.
Technical Specifications
Parameter
Value
Model
ATV12H055M3
Product Series
Altivar 12
Product Type
Frequency Converter / VFD
Supply Voltage
200–240 V AC (three-phase input)
Output Voltage
0–240 V AC (three-phase output)
Rated Power
0.55 kW
Output Current
3.5 A
Control Method
V/f Control
Communication
Modbus RS485
Protection Functions
Overload, thermal, short-circuit protection
Switching Frequency
Up to 4 kHz
Operating Temperature
-10°C to +60°C
Protection Rating
IP20
Dimensions
143 × 72 × 131.2 mm
Weight
0.8 kg
Recommended Related Models
Model
Product Name
ATV12H037M3
Schneider Altivar 12 Frequency Converter
ATV12H055M2
Schneider Altivar 12 VFD (Single-phase input)
ATV12H018M2
Schneider Altivar 12 Compact Drive
ATV320U04M2
Schneider Altivar 320 Compact Drive
Popular Related Models
Model
Product Name
ATV12H075M2
Schneider Altivar 12 Frequency Converter
ATV310H055N4
Schneider Altivar 310 Industrial Drive
ATV320U06M2
Schneider Altivar 320 VFD
ATV12P055M2
Schneider Altivar 12 OEM Variant
Applications
• Designed for compact motor speed control in light industrial automation systems requiring stable and efficient operation.
• Suitable for small pump applications such as water circulation, cooling systems, and low-pressure fluid transfer.
• Used in HVAC systems including compact fans, ventilation units, and air handling devices.
• Applied in light-duty conveyor systems for packaging, sorting, and small-scale material handling.
• Ideal for OEM machinery requiring simple and reliable variable speed control in confined control cabinet spaces.
Key Advantages
• Provides smooth and stable motor speed regulation using efficient V/f control technology.
• Supports Modbus RS485 communication for easy integration into PLC and industrial control systems.
• Compact structure allows flexible installation in space-limited electrical cabinets.
• Built-in motor protection functions improve operational safety and system reliability.
• Simple parameter configuration enables fast commissioning and user-friendly setup.
Technical FAQs
Q1: What motor type is compatible with this drive?
It is designed for three-phase asynchronous motors with 200–240 V three-phase supply systems.
Q2: What is the rated power of this model?
The rated output power is 0.55 kW.
Q3: Does it support industrial communication?
Yes, it supports Modbus RS485 communication protocol.
Q4: What control method does it use?
It uses V/f (voltage/frequency) control for basic and stable motor speed regulation.
Q5: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial-duty applications.
Q6: Does it include motor protection functions?
Yes, it includes protection against overload, overheating, and electrical faults.
Q7: Can it be used for pump applications?
Yes, it is commonly used in small pump and fluid control systems.
Q8: Is it suitable for HVAC systems?
Yes, it is widely used in compact HVAC fan and ventilation systems.
Q9: What is the installation requirement?
It is designed for indoor installation inside a ventilated control cabinet.
Q10: Does it require complex programming?
No, it supports quick and simple parameter-based commissioning.
