Brand:Schneider PLC Item No.:ATV12H075F1 Product Origin:France Product Dimensions:105 x 142 x 156.2 mm Product Weight:1.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

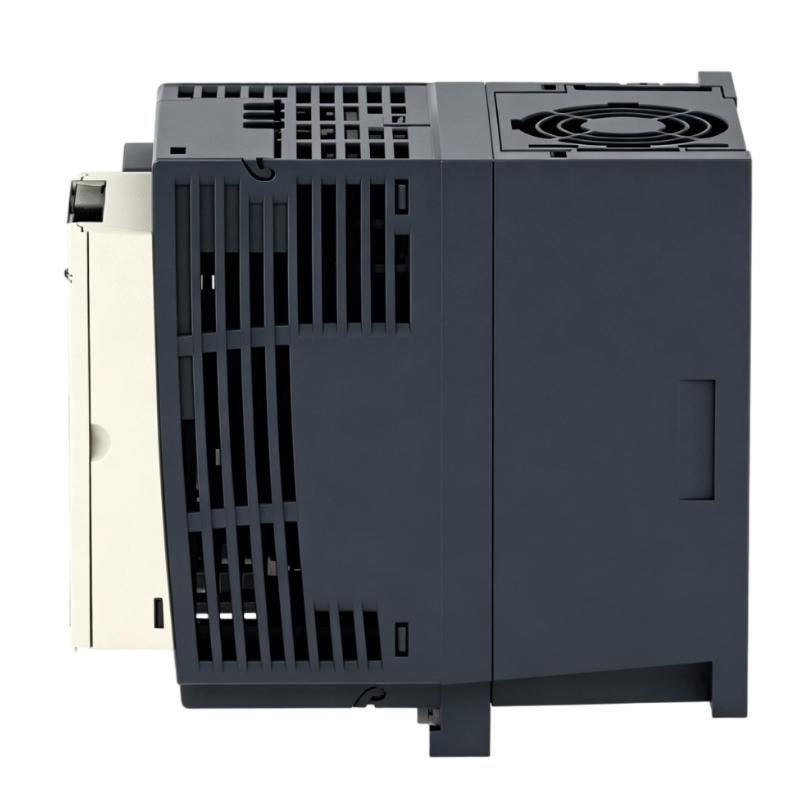

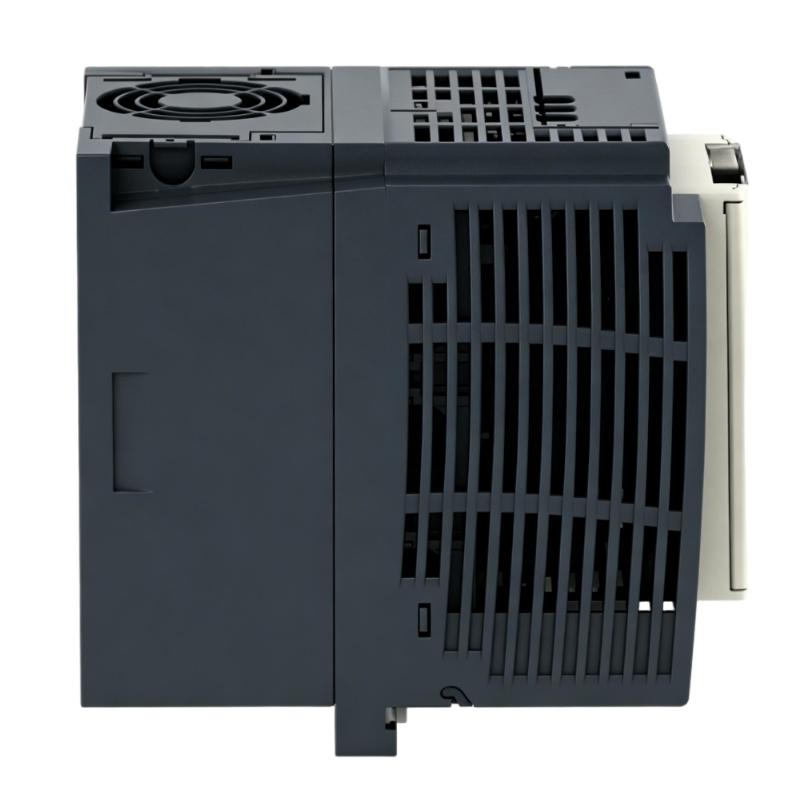

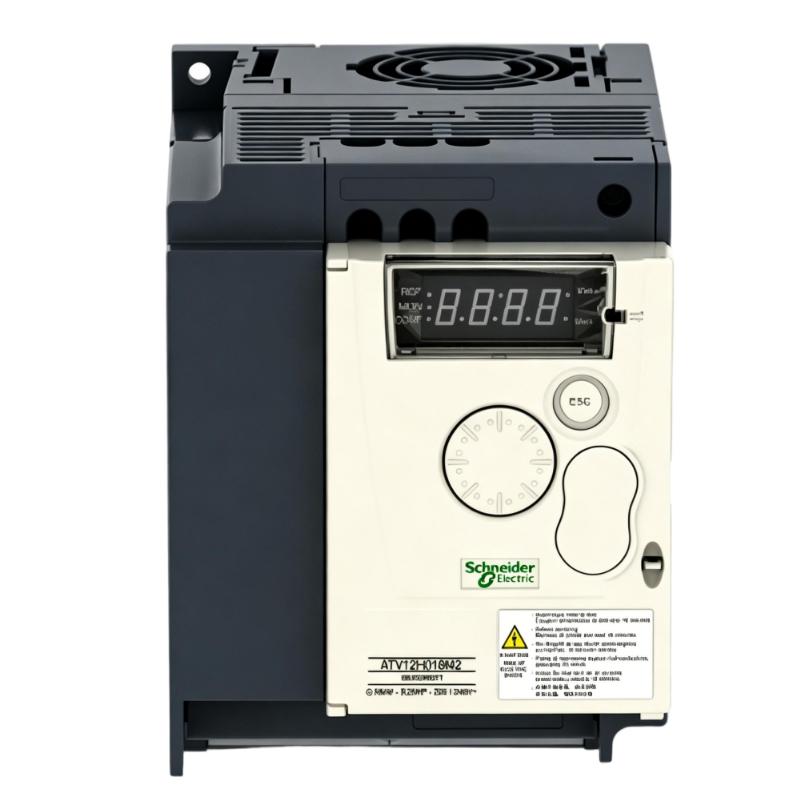

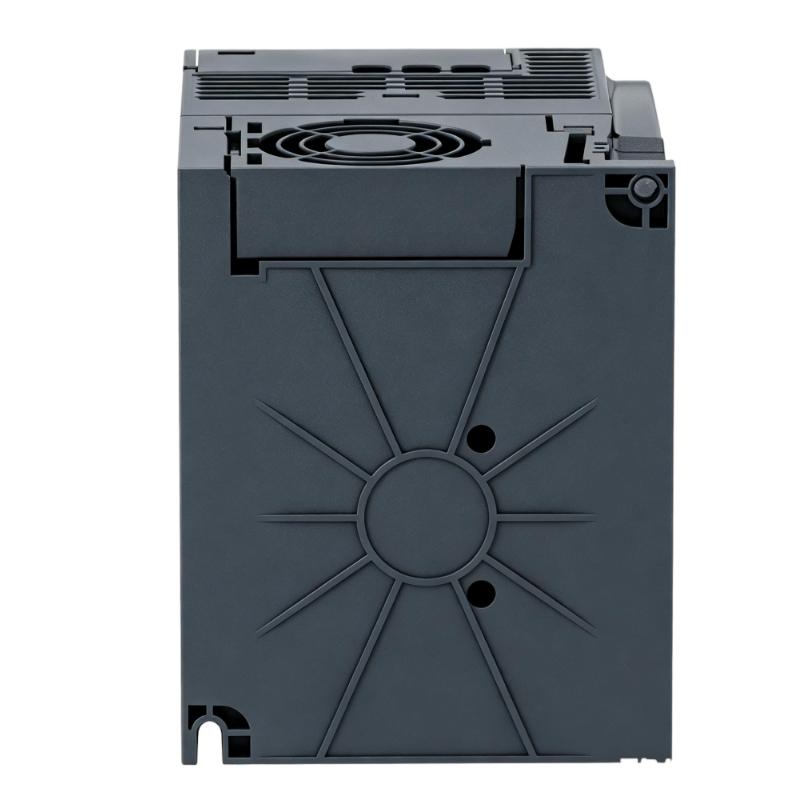

The Schneider ATV12H075F1 Frequency Converter is a compact variable speed drive designed for simple and reliable motor control in light industrial and commercial applications. It delivers efficient speed regulation for small three-phase motors, helping improve energy efficiency and process stability.
Technical Specifications
Parameter
Value
Model
ATV12H075F1
Product Series
Altivar 12
Product Type
Frequency Converter / VFD
Supply Voltage
200–240 V AC (single-phase input)
Output Voltage
0–240 V AC (three-phase output)
Rated Power
0.75 kW
Output Current
4.2 A
Control Method
V/f Control
Communication
Modbus RS485
Protection Functions
Overload, thermal, short-circuit protection
Switching Frequency
Up to 4 kHz
Operating Temperature
-10°C to +60°C
Protection Rating
IP20
Dimensions
105 x 142 x 156.2 mm
Weight
1.3 kg
Recommended Related Models
Model
Product Name
ATV12H037F1
Schneider Altivar 12 Frequency Converter
ATV12H018F1
Schneider Altivar 12 Compact Drive
ATV12H075M2
Schneider Altivar 12 VFD (M2 Variant)
ATV320U11M2
Schneider Altivar 320 Compact Drive
Popular Related Models
Model
Product Name
ATV12H055M2
Schneider Altivar 12 Frequency Converter
ATV12H037M2
Schneider Altivar 12 Compact VFD
ATV310H075N4
Schneider Altivar 310 Industrial Drive
ATV320U07M2
Schneider Altivar 320 VFD
Applications
• Designed for compact motor speed control in light industrial automation and OEM equipment.
• Suitable for small pump systems used in water circulation, cooling loops, and low-pressure fluid transfer applications.
• Used in HVAC systems for compact fans, ventilation units, and small air handling equipment.
• Applied in light conveyor systems for packaging, sorting, and simple material handling processes.
• Ideal for machine builders requiring reliable and space-efficient variable speed control solutions.
Key Advantages
• Provides stable motor speed regulation using efficient V/f control for smooth operation.
• Integrated Modbus RS485 communication enables easy PLC and automation system integration.
• Compact structure supports flexible installation in small control cabinets.
• Built-in motor protection functions enhance operational safety and equipment reliability.
• Simple parameter setup enables fast commissioning and reduces installation time.
Technical FAQs
Q1: What type of motor is supported?
It is designed for three-phase asynchronous motors with single-phase 200–240 V input systems.
Q2: What is the rated power of this model?
The rated output power is 0.75 kW.
Q3: Does it support industrial communication?
Yes, it supports Modbus RS485 communication.
Q4: What control method does it use?
It uses V/f control for basic and stable motor speed regulation.
Q5: Is it suitable for continuous operation?
Yes, it is designed for continuous industrial-duty applications.
Q6: Can it be used for pump applications?
Yes, it is commonly used in small pump and fluid control systems.
Q7: Does it include motor protection?
Yes, it includes overload, thermal, and short-circuit protection functions.
Q8: Is it suitable for HVAC systems?
Yes, it is widely used in small HVAC fans and ventilation systems.
Q9: Does it require complex commissioning?
No, it supports quick and simple parameter-based setup.
Q10: What installation environment is required?
It is designed for indoor installation inside a ventilated control cabinet.
