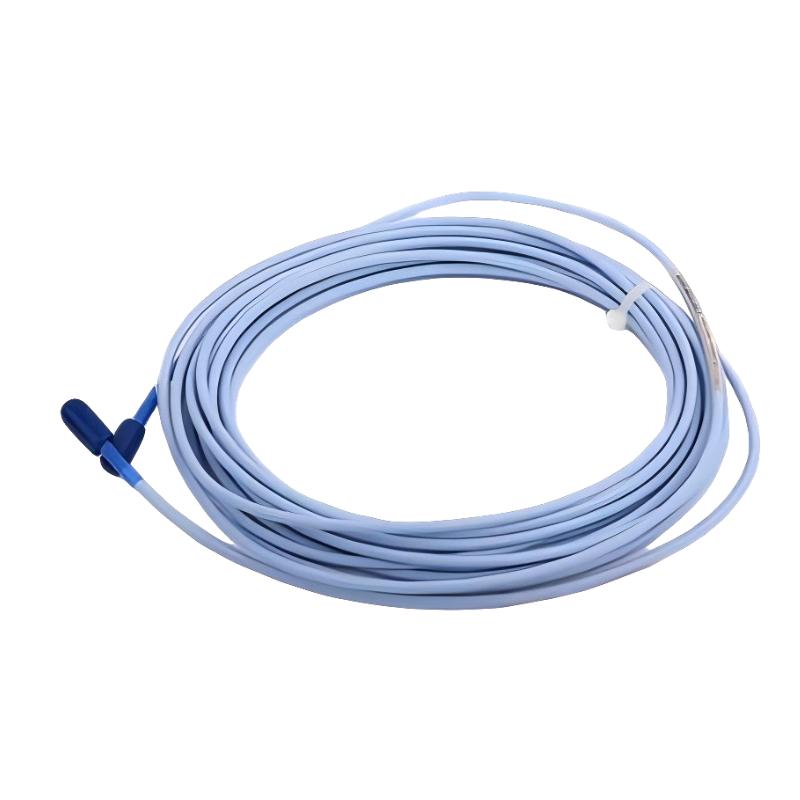

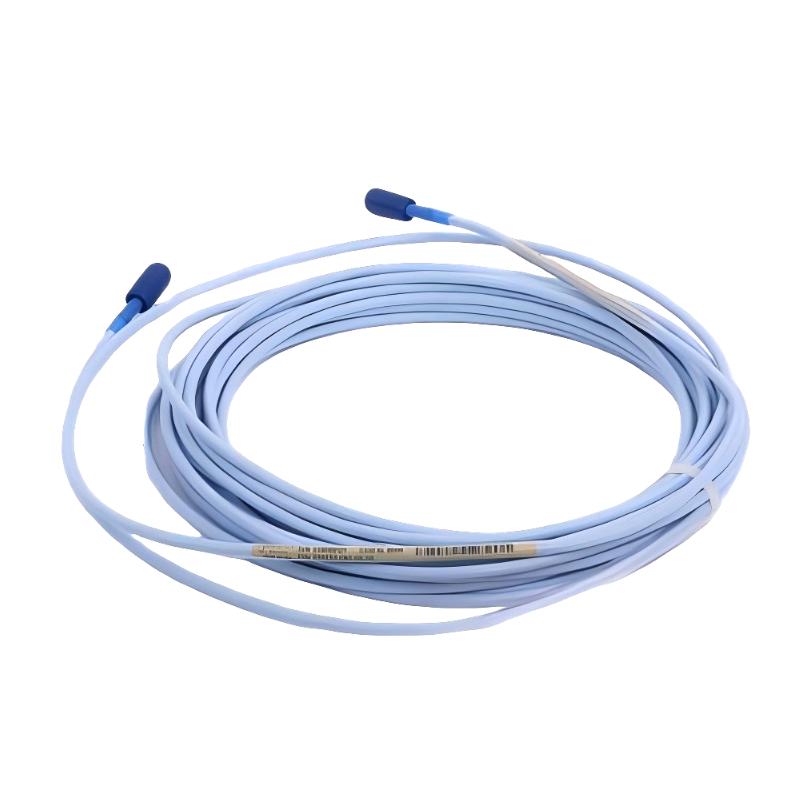

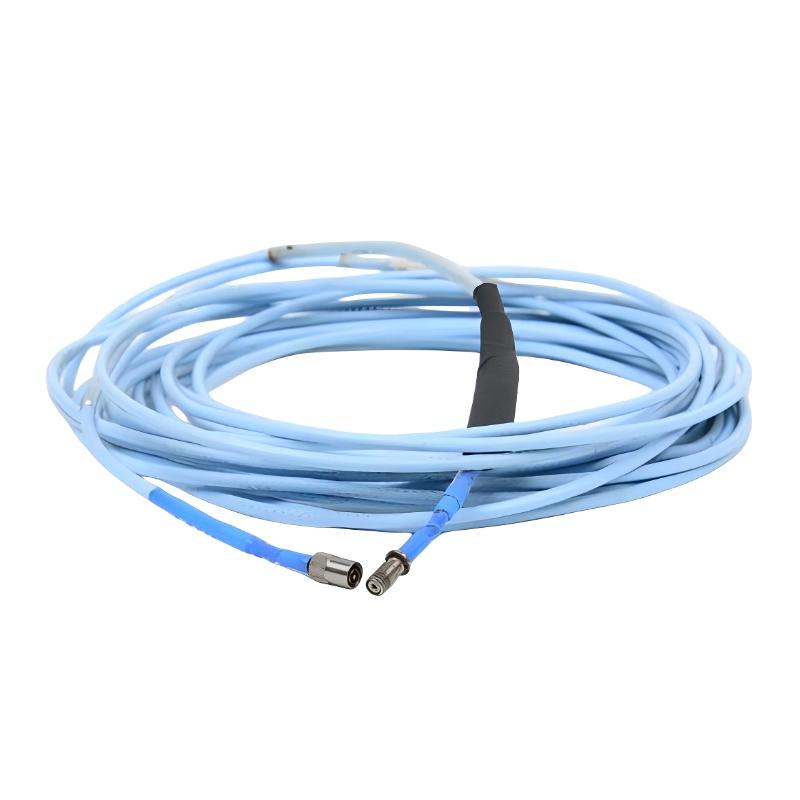

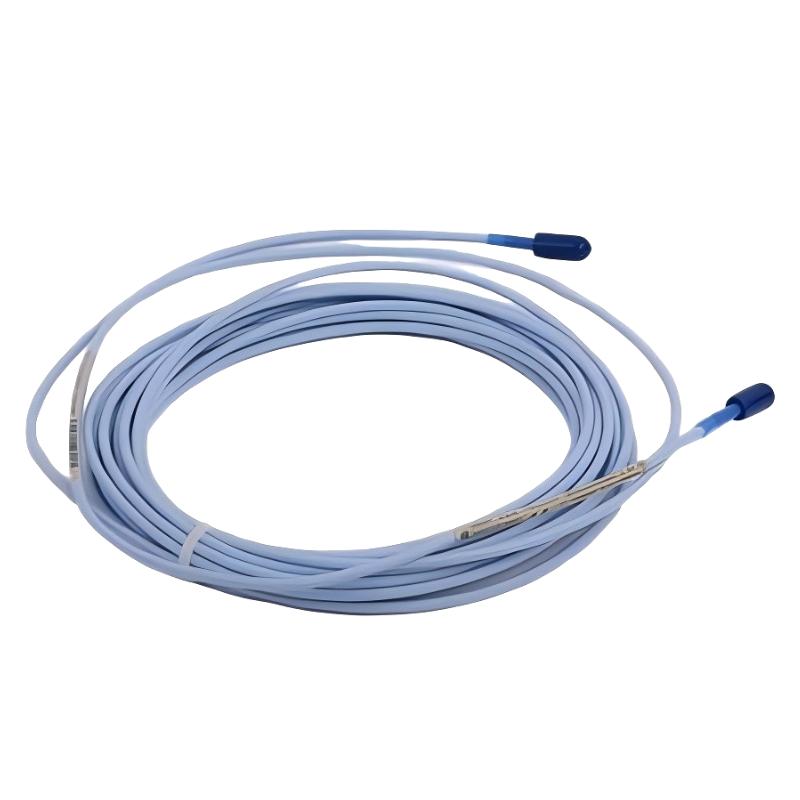

Bently Nevada 330130-085-13-00 3300 XL Standard Extension Cable

Applications

The Bently Nevada 330130-085-13-00 extension cable is used in vibration monitoring systems for rotating machinery where stable signal transmission is required between proximity probes and monitoring instrumentation. It is typically found in turbine trains, large compressors, pumps, and other critical rotating equipment operating under continuous industrial loads.

In field installations, it is commonly routed through cable trays or protective conduits to maintain signal stability in environments with vibration, temperature variation, and electromagnetic interference.

Advantages

This cable is designed to maintain consistent signal integrity across long operating cycles. In condition monitoring systems, reliable cabling is essential because signal instability can directly affect diagnostic accuracy.

It is built for demanding industrial environments where continuous operation and mechanical stress are expected. Once installed correctly, it typically functions as a long-life component within the monitoring chain.

It also integrates smoothly into the 3300 XL system architecture, supporting straightforward replacement and system expansion without additional configuration requirements.

Technical FAQs (10 Technical Questions)

Q1: What is the function of this extension cable?
It transmits vibration and displacement signals between the proximity probe and monitoring module.

Q2: Is this a powered component?
No, it is a passive signal transmission cable.

Q3: Does cable condition affect system performance?
Yes, signal stability depends on cable integrity and proper installation.

Q4: Can it be used outside the 3300 XL system?
It is designed specifically for use within the 3300 XL monitoring architecture.

Q5: What type of signals does it carry?
It carries low-level vibration and displacement measurement signals.

Q6: Is shielding included?
Yes, it includes industrial-grade shielding to reduce electromagnetic interference.

Q7: Is it suitable for harsh environments?
Yes, it is designed for continuous industrial operation environments.

Q8: Does it require regular maintenance?
No routine maintenance is typically required unless physical damage occurs.

Q9: Is system verification required after installation?
Yes, verification is recommended after installation or replacement.

Q10: Is it part of a larger monitoring system?
Yes, it is part of the Bently Nevada 3300 XL proximity measurement chain.
