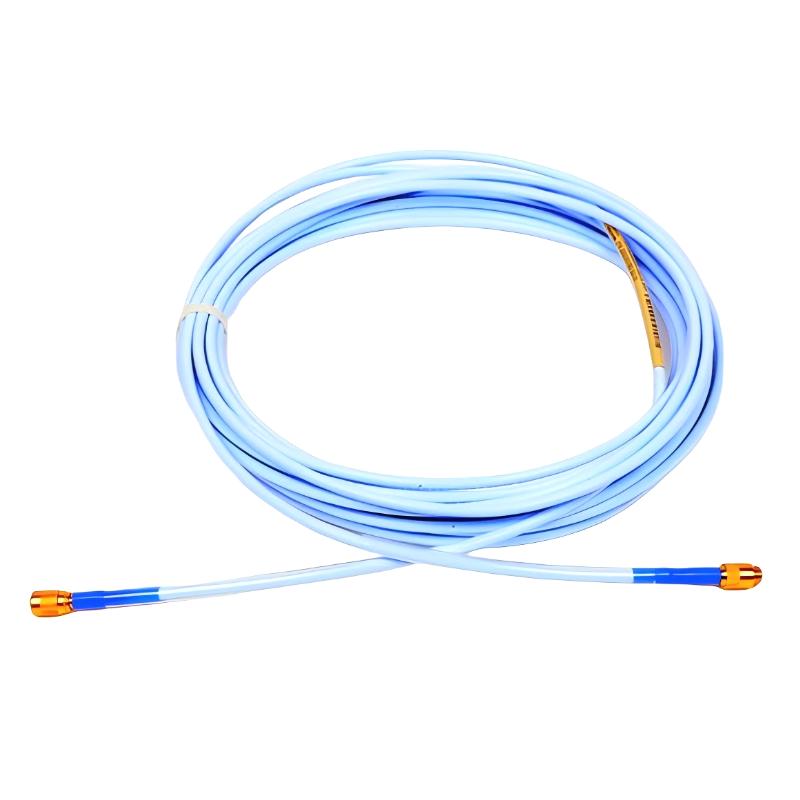

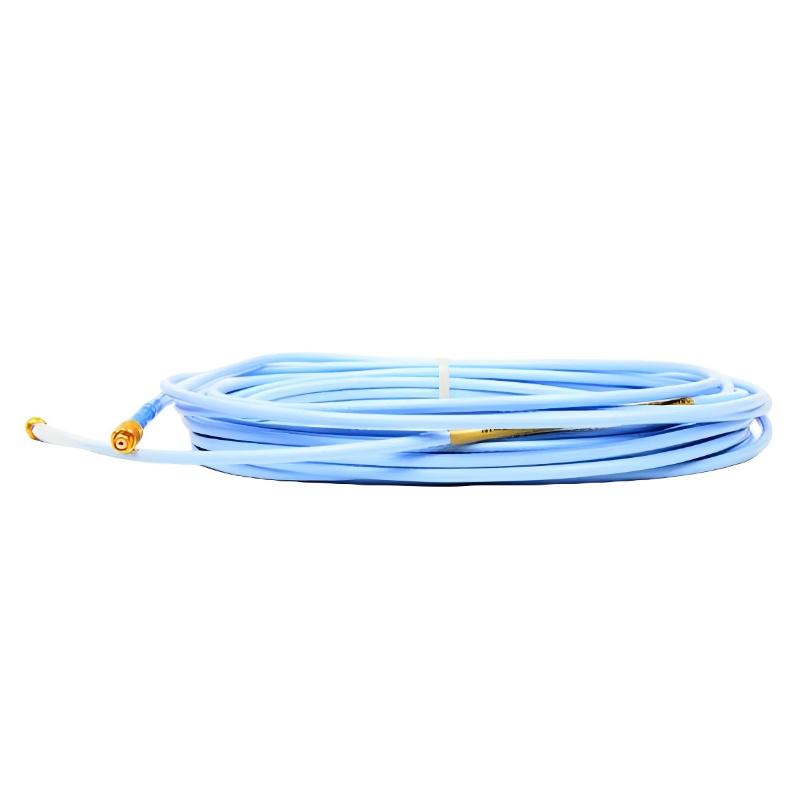

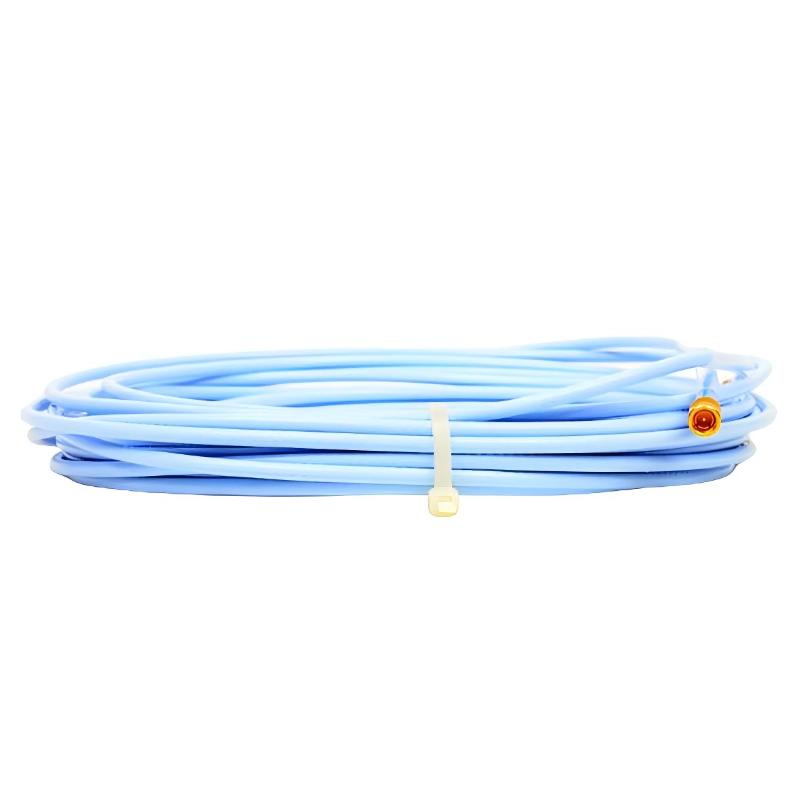

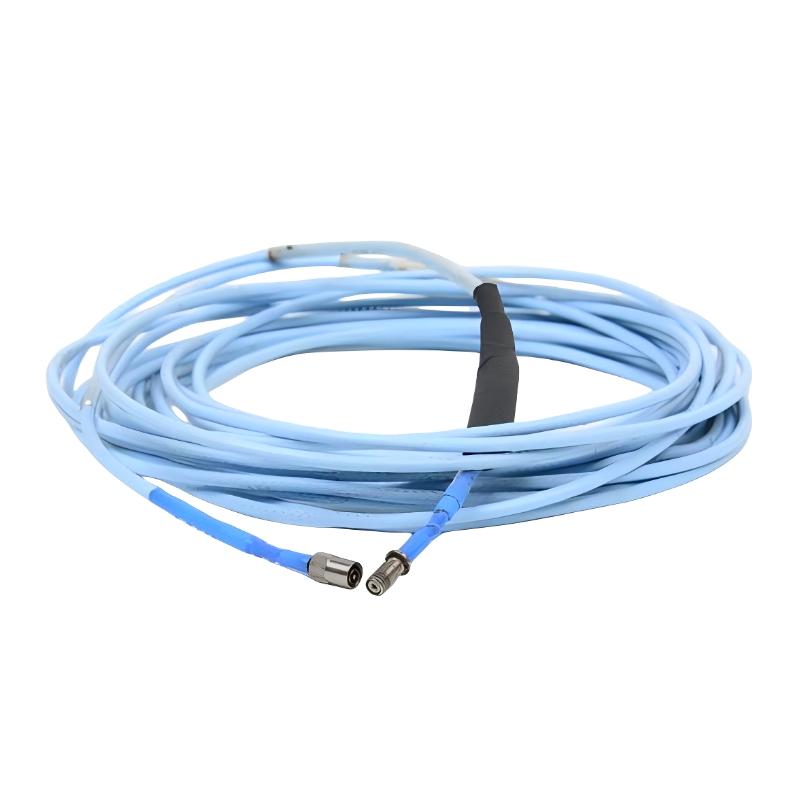

Bently Nevada 330130-085-13-05 3300 XL Standard Extension Cable

Applications

The Bently Nevada 330130-085-13-05 extension cable is used in industrial vibration monitoring systems where proximity probes must be reliably connected to monitoring modules over a fixed installation distance. It is commonly applied in turbines, compressors, pumps, and other rotating machinery operating in continuous production environments.

In real installations, it is typically routed through protective cable trays or conduits to maintain stable signal transmission under vibration, thermal variation, and electromagnetic interference conditions.

Advantages

This cable is designed to support stable and repeatable signal transmission in long-term machinery monitoring applications. In vibration analysis systems, consistent signal quality is essential for reliable condition assessment and early fault detection.

It is suitable for demanding industrial environments where equipment operates continuously and cabling is exposed to mechanical and electrical stress. Once installed correctly, it is generally treated as a long-life infrastructure component.

It also integrates seamlessly within the Bently Nevada 3300 XL system architecture, allowing straightforward replacement and expansion without additional configuration effort.

Technical FAQs (10 Technical Questions)

Q1: What is the main function of this cable?
It transmits vibration and displacement signals between the proximity probe and monitoring system.

Q2: Is this an active electronic device?
No, it is a passive signal transmission cable.

Q3: Does cable quality affect monitoring results?
Yes, signal integrity directly impacts measurement reliability.

Q4: Can it be used outside the 3300 XL system?
It is intended for use within the 3300 XL compatible monitoring system architecture.

Q5: What type of signals does it carry?
It carries low-level vibration and displacement measurement signals.

Q6: Is shielding included?
Yes, it includes industrial shielding to reduce electromagnetic interference.

Q7: Is it suitable for harsh industrial environments?
Yes, it is designed for continuous-duty industrial applications.

Q8: Does it require maintenance?
No routine maintenance is typically required unless physical damage occurs.

Q9: Is system verification required after installation?
Yes, system verification is recommended after installation or replacement.

Q10: Is it part of a larger system?
Yes, it is part of the Bently Nevada 3300 XL proximity transducer chain.
